PC Boards - EPROMS

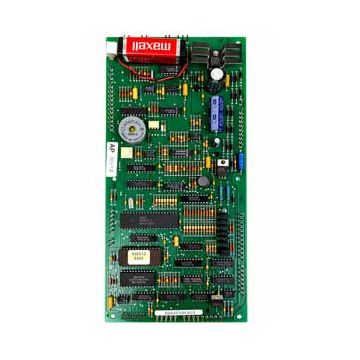

Automatic Products 113/112 PC Board (Refurbished)

$149.00

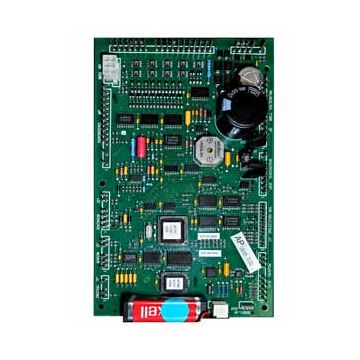

AP 123/122/121 (MDB) PC Board (360274) (Refurbished)

$299.00

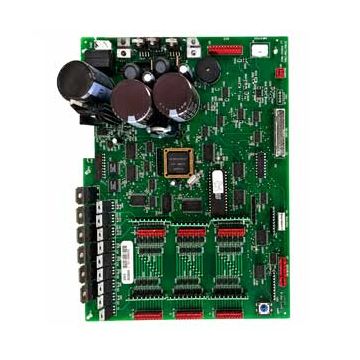

Dixie Narco 5591 (MDB) Control PC Board (Refurbished)

$349.00

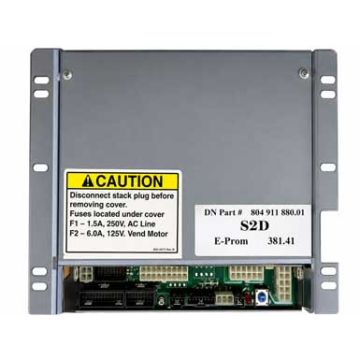

Dixie Narco S2D-E PC Board (276E, 501E, 600E - Credit Card Reader Capable) - #804911880.01 (Refurbished)

$199.00

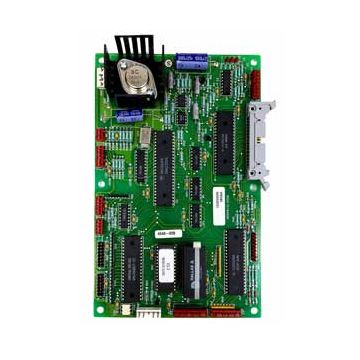

National model 147 PC Board (Refurbished)

$149.00

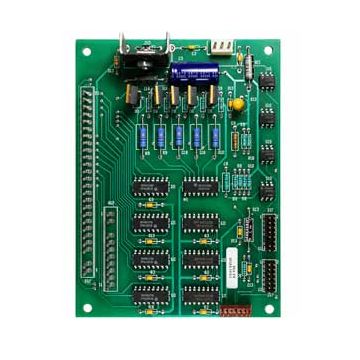

National model 147 Interface PC Board (Refurbished)

$49.00

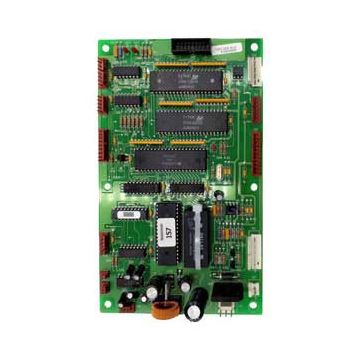

National model 157/158/167/168 PC Control Board (Refurbished)

$299.00

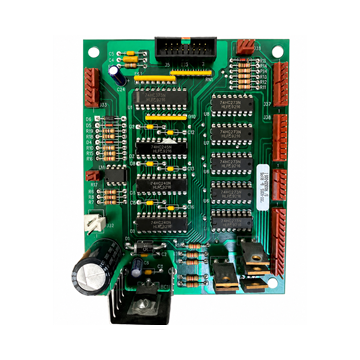

National model 157 PC Interface Board (Refurbished)

$119.00

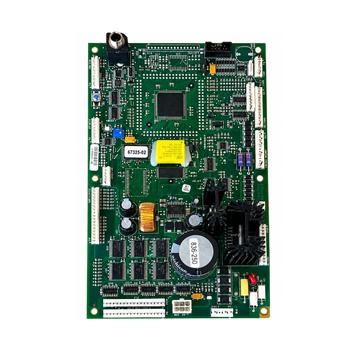

Royal model G111 PC Control Board (Refurbished)

$249.00

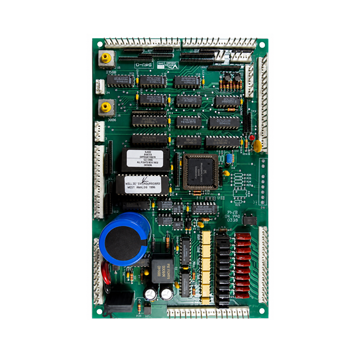

Vendo Univendor 2 PC Board 5.1 (480, 511, 570, 601) (Refurbished)

$199.00

Out of stock

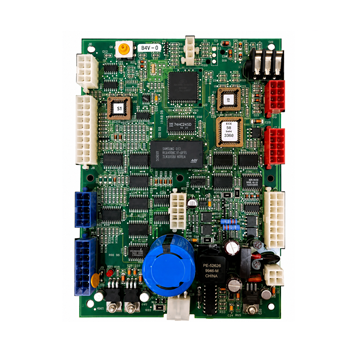

Vendo V-Max Board 9.1 Late Style (540, 576, 720, 630, 840) (Refurbished)

$199.00
Dixie Narco S2D-EPROM (Fits S2D PC Boards 381.41 )

$49.95
National 158 E-Prom (158.29)

$49.95
Vendo 9.1-EPROM (Fits V-Max 2.050 )

$49.95

Vending Machine PC Boards and EPROMs

Find replacement vending machine control boards and EPROM chips for selected snack and soda machines. A control board helps the machine read selections, manage vend cycles, communicate with payment equipment, and report errors. An EPROM stores program information used by compatible control systems. Choosing the correct part starts with the exact machine model, board number, and software version.

Vending World lists refurbished PC boards and selected EPROMs for Automatic Products, Dixie-Narco, National Vendors, Royal Vendors, and Vendo Sanden equipment. Browse the product listings above to see current prices, stock status, and the details for each item.

Electrical safety: Switch off and disconnect machine power before touching a board or connector. Follow the machine service manual. Do not reconnect power until every plug is seated correctly. If you are not trained to work around electrical equipment, use a qualified vending service technician.

Find the Right Electronic Part

1. Identify

Record the manufacturer, model, and serial number.

2. Compare

Match board markings, part numbers, and connector layout.

3. Confirm

Check EPROM version and payment-system requirements.

4. Install

Follow safe replacement and programming steps.

Control Boards and EPROMs in This Category

Manufacturer	Listed part	Important matching detail
Automatic Products	112/113 refurbished PC board	Check the exact board revision and machine configuration.
Automatic Products	121/122/123 MDB board, part 360274	Confirm the board number and MDB setup.
Dixie-Narco	5591 MDB control board	Verify 5591 configuration and board revision.
Dixie-Narco	S2D-E board, part 804911880.01	Listed for selected 276E, 501E, and 600E applications; confirm reader compatibility.
National Vendors	147 PC board and 147 interface board	These are different parts; identify which board is faulty.
National Vendors	157/158/167/168 control board	Confirm model and programming requirements.
National Vendors	157 interface board	Do not confuse an interface board with the main controller.
Royal Vendors	G111 control board	Match the original board and machine setup.
Vendo Sanden	Univendor 2 board 5.1	Listing names models 480, 511, 570, and 601; check availability.
Vendo Sanden	V-Max late-style board 9.1	Listing names models 540, 576, 720, 630, and 840.
Dixie-Narco	S2D EPROM	Check the S2D board and firmware marking.
National Vendors	158 EPROM	Match the 158 program version.
Vendo Sanden	9.1 EPROM	Match the supported V-Max board version.
