Adapter harness, Single Price for Coinco BA30/Mag50 bill validators (NEW)

Single-Price Adapter Harness for Coinco BA30 and Mag50 Bill Validators

Connect the right parts of a compatible single-price vending setup with this new Coinco adapter harness. This harness has a Jones-style plug and is listed for Coinco BA30 and Mag50 bill validators. It is a practical replacement part for operators who need to check or restore a suitable validator connection.

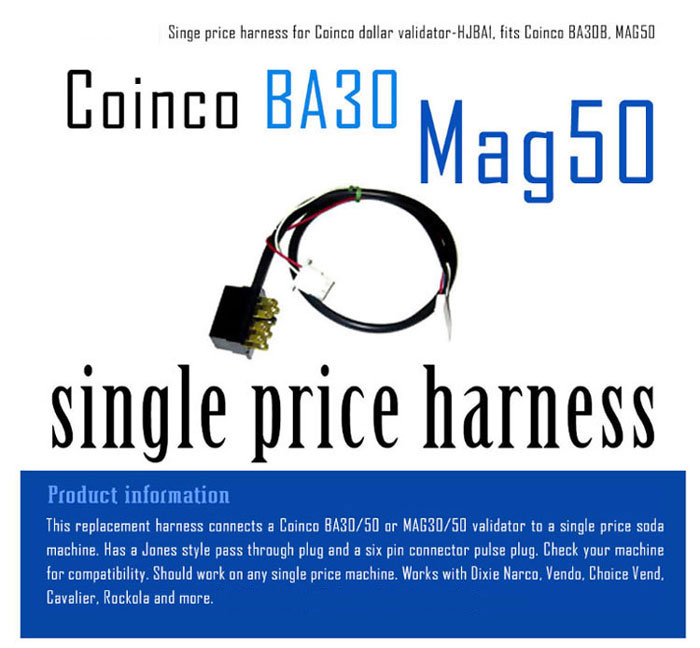

• Product: single-price bill validator adapter harness
• Brand: Coinco
• Listed validator families: BA30 and Mag50
• Connector style: Jones-style plug
• Condition: new part
• Vending World SKU: HJBA1

Important: The validator model alone does not confirm that a harness will fit your machine. Compare the existing connector, machine wiring, voltage, and validator configuration before ordering or installing. Do not assume this harness converts power or supports every BA30 or Mag50 variant.

What This Adapter Harness Does

A harness forms a physical wiring link between compatible vending components. The goal is to keep the proper connector in place and route the intended signals through the correct contacts. The actual electrical function depends on the machine and validator configuration. This item is intended for a suitable single-price arrangement, not every type of vending controller.

• Check the exact machine and validator details.
• Compare the existing plug and wiring documentation.
• Disconnect power before inspection or service.
• Test the full payment and vend cycle after work.

For what this adapter harness does, focus on the actual hardware in front of you. A clear model label, a connector photo, and the correct service guide provide a stronger basis for a repair decision than appearance alone. Keep a record of what you checked and what changed after service.

Why the Single-Price Detail Matters

A single-price vending machine uses a selling arrangement in which selections share one configured vend price. This is different from many multi-price machines that use other control systems. A connector that looks similar may still use different wiring. Check the machine manual and the installed payment hardware before deciding which adapter is needed.

• Check the exact machine and validator details.
• Compare the existing plug and wiring documentation.
• Disconnect power before inspection or service.
• Test the full payment and vend cycle after work.

For why the single-price detail matters, focus on the actual hardware in front of you. A clear model label, a connector photo, and the correct service guide provide a stronger basis for a repair decision than appearance alone. Keep a record of what you checked and what changed after service.

Understanding the Jones-Style Plug

Jones-style describes a connector format. The name is useful when comparing an old harness with a replacement. However, connector shape alone is not enough. The number of contacts, keying, orientation, pin assignment, and electrical requirements all matter. Compare the old plug and documented wiring before making a connection.
