Cantaloupe Engage Credit Card Reader Kit

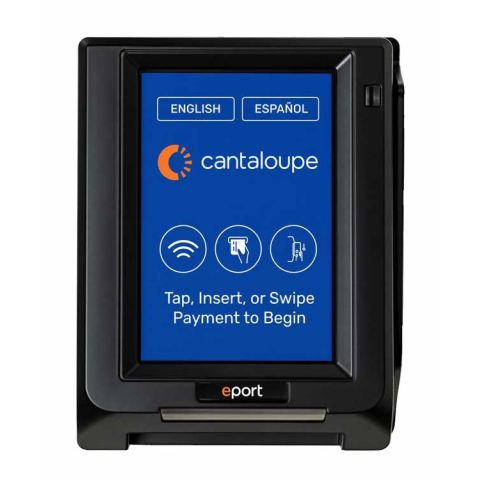

Cantaloupe Engage Credit Card Reader for Vending Machines

The Cantaloupe Engage Credit Card Reader is a modern cashless payment solution designed for vending machines and other unattended retail equipment. It gives customers a simple way to pay without using cash. The Engage combines payment hardware, a telemeter, touchscreen controls, and wireless connectivity in one device.

For vending operators, cashless payment can make machines easier to use. It can also help operators collect useful machine and sales data. The Engage is built to connect with vending equipment through MDB and can communicate through 4G/LTE cellular service. Cantaloupe also offers remote monitoring features that help operators manage connected equipment.

The Engage features a 3.5-inch touchscreen with edge-to-edge touch technology. It supports several payment methods, including EMV chip cards, contactless payments, NFC/RFID, magnetic stripe cards, and mobile wallets.

This makes the Cantaloupe Engage a useful upgrade for vending operators who want to offer more payment choices. It can be installed on compatible vending equipment and used as part of a connected cashless vending system.

Cantaloupe Engage Credit Card Reader at a Glance

• Product: Cantaloupe Engage Credit Card Reader
• Application: Vending machines and unattended retail equipment
• Connectivity: 4G/LTE
• Machine communication: MDB
• Display: 3.5-inch touchscreen
• Payment: EMV chip
• Contactless: EMV contactless
• Wireless payment: NFC/RFID
• Magnetic stripe: Supported
• Mobile wallets: Supported
• Security: PCI PTS 5.X certified device and anti-tamper protection
• Telemetry: Built into the all-in-one device
• Monitoring: Remote monitoring capabilities
• Vending integration: VMS integration
• Bluetooth: Supported
• Memory: 256MB

Specifications and compatibility can vary by machine model, firmware, configuration, service plan, and installation. Always verify compatibility before installation. Cantaloupe maintains compatibility information for supported vending equipment and notes that some machines may require accessories or firmware updates.

Accept More Cashless Payments

Customers do not always carry cash. Many shoppers now expect to use a credit card, debit card, contactless card, or mobile wallet. A vending machine with cashless payment can give customers more ways to complete a purchase.

The Cantaloupe Engage supports several payment technologies in one terminal. Customers can use compatible EMV chip cards. They can also use contactless payment methods. NFC/RFID and mobile wallet support add another convenient way to pay.

The reader also supports magnetic stripe payments. This gives operators a broad range of payment options in one vending payment device.

3.5-Inch Touchscreen

One of the main features of the Engage is its touchscreen. The 3.5-inch display provides an interactive interface for customers. Instead of relying only on basic lights or buttons, the device can display information on its screen.

The edge-to-edge touchscreen design gives the reader a modern appearance. It also creates a larger interactive surface in a compact vending payment terminal.

A touchscreen can make payment instructions easier to understand. Customers can follow prompts while they tap, insert, or swipe their payment method.

The screen is also useful during device operation. Cantaloupe installation documentation describes the Engage startup process and shows the device moving from a not-ready state to a ready state when initialization is complete.

4G/LTE Connectivity

The Cantaloupe Engage uses 4G/LTE connectivity. This allows the reader to communicate without depending on a customer's phone or a local Wi-Fi network.

Cantaloupe states that its card readers use Verizon or AT&T 4G LTE connectivity. The company also notes that Engage can support Ethernet/LAN as an option.

Cellular connectivity is especially useful for vending machines placed in locations where installing a separate internet connection would not be practical.

A connected vending machine can communicate transaction and machine information through the cashless system. This can reduce the need for operators to visit machines only to check basic information.

All-in-One Payment and Telemeter Device

The Engage is more than a card reader. Cantaloupe describes it as an all-in-one card reader and telemeter with a touchscreen and payment platform.

This design can simplify a vending installation. Instead of treating the payment reader and telemetry hardware as completely separate devices, the Engage combines important functions in one unit.

The telemeter function helps connect vending equipment with Cantaloupe's software services. Cantaloupe states that its card readers can send sales and machine health information to Seed Live for remote monitoring.

Remote Vending Machine Monitoring

Remote monitoring can be valuable for vending operators with multiple machines.

Without connected equipment, an operator may need to visit each machine to check sales, machine status, or payment performance. Connected equipment can provide information remotely.

Cantaloupe describes its card readers as bringing vending machines online through telemetry. The company says its device management system can help operators track sales data and monitor machine performance.

This can support better route planning and day-to-day machine management.

Vending Machine MDB Communication

The Cantaloupe Engage uses MDB communication for vending machine integration. MDB, or Multi-Drop Bus, is widely used in vending equipment for communication between payment systems and the vending machine controller.

Proper MDB wiring is important during installation. Cantaloupe's Engage Quick Start Guide identifies the MDB harness as one of the required device connections.

The exact connection process depends on the vending machine. Operators should use the appropriate installation instructions for the machine model.

DEX Communication and Data

DEX communication can also be important when installing a cashless payment system. DEX allows vending equipment to exchange machine data with connected systems.

Cantaloupe's installation documentation specifically emphasizes using the correct DEX connection. Its Quick Start Guide states that the DEX cable connects to the Com 1 port on the Engage.

Using the correct connection is important. Incorrect wiring may allow payment functions to work while preventing DEX data from reaching the connected software platform.

Always follow the current Cantaloupe installation documentation when connecting DEX, MDB, antenna, and other cables.

EMV Chip Card Payments

EMV chip payment is one of the payment methods supported by the Engage.

EMV cards contain an embedded chip. Customers insert the card into a compatible reader rather than relying only on the magnetic stripe.

For vending operators, supporting EMV gives customers another familiar payment method. It also helps a vending machine support current card payment standards.

Contactless Payments

Contactless payment is another important feature of the Engage.

Customers with compatible cards or devices can use a tap-based payment method. This can make vending transactions quick and simple.

Contactless support includes EMV contactless and NFC/RFID according to Cantaloupe's published product specifications.

Mobile Wallet Support

The Engage also supports mobile wallets. This lets customers use compatible smartphones and wearable devices when supported by their payment wallet and card issuer.

Mobile payment can be useful in locations where customers frequently use their phones instead of physical cards.

Offering mobile wallet support can also make a vending machine feel more familiar to customers who already use tap-to-pay services in stores.

Magstripe Payment Support

The Engage supports magnetic stripe payments as well. While newer payment methods continue to grow, some customers and cards may still use magnetic stripe transactions.

Supporting multiple payment types gives vending operators flexibility. Customers can use the payment method that is supported by their card or mobile device.

PCI PTS 5.X Certification

Payment security is an important consideration for unattended retail. Cantaloupe lists the Engage as a PCI PTS 5.X certified device. It also lists anti-tamper security as one of the device features.

PCI-related security standards are designed to address payment terminal security. Operators should still follow their payment provider's requirements, Cantaloupe's security guidance, and all applicable payment security procedures.

Do not attempt to modify the internal payment hardware. Use approved installation procedures and compatible parts.

Anti-Tamper Security

Vending machines are often installed in public or semi-public locations. Payment equipment therefore needs appropriate physical security.

The Engage includes anti-tamper security as part of its published feature set.

Operators should also inspect the physical installation regularly. Check the mounting area, cables, screws, and reader housing as part of normal equipment maintenance.

Why Add a Credit Card Reader to a Vending Machine?

Cashless payment can change how customers interact with a vending machine.

A traditional machine may require customers to carry coins or bills. A cashless reader provides another payment option.

Adding a card reader can be especially useful in locations where customers frequently expect electronic payment.

• Office buildings
• Warehouses
• Factories
• Schools and campuses
• Hospitals and medical facilities
• Hotels
• Apartment communities
• Transportation facilities
• Retail locations
• Recreation facilities
• Public facilities
• Employee break rooms

The best installation location depends on the machine, customer traffic, network coverage, equipment compatibility, and operator requirements.

Improve the Customer Payment Experience

Customers want clear payment instructions. They also want a payment process that is easy to understand.

The Engage uses a touchscreen interface to display payment information. Customers can interact with the screen and use a supported payment method.

A clear payment interface can be useful for first-time users. It can also make the transaction process more familiar for customers who regularly use cashless payment systems.

Designed for Unattended Retail

Vending machines operate without a cashier. The payment terminal therefore needs to handle transactions directly with the customer.

The Engage is designed for unattended retail applications. Its payment hardware, touchscreen, cellular connectivity, and telemetry functions work together as part of a connected vending solution.

This makes it suitable for operators who want to move beyond cash-only vending.

Cantaloupe Engage and Existing Vending Machines

The Engage can be used as a retrofit solution on compatible equipment. Cantaloupe states that most of its readers can retrofit onto existing machines.

However, compatibility should always be confirmed before ordering or installing the reader.

Cantaloupe maintains an Engage Compatibility Guide that covers multiple vending manufacturers and models. The guide explains that some machines may require additional accessories or firmware updates.

Compatibility With Major Vending Manufacturers

Cantaloupe's compatibility information covers a range of equipment manufacturers. The published guide includes manufacturers such as:

• AMS
• Automatic Products
• Avalon/Cafection
• Crane National
• Dixie Narco
• Fastcorp
• GPL
• Royal
• Vendo
• Vendors Exchange
• USI/Wittern
• Vendtronics/Seaga
• Wurlitzer
• 1-800 Vending/Genesis
• DATAWRX
• MICROTRONICS

This does not mean every machine from every manufacturer is automatically compatible. Specific machine models can have different requirements.

Check the current compatibility guide for your exact machine before installation.

Machine Firmware Matters

Some vending machines may require a specific firmware version before a cashless reader can operate correctly.

Cantaloupe's compatibility guide lists minimum firmware requirements for various machines. Requirements can vary by manufacturer and model.

This is an important point for operators retrofitting older vending machines.

If a machine does not communicate correctly with the reader, check the compatibility guide before replacing working hardware.

Installation Planning

Good installation starts before the first screw is removed.

Choose a mounting location that is easy for customers to reach. The reader should not interfere with the vending machine door, product delivery system, coin mechanism, bill validator, refrigeration components, or other moving parts.

Cantaloupe installation documentation recommends planning the mounting location and checking for interference with moving machine components.

Before Installation

• Identify the exact vending machine model.
• Check the current compatibility guide.
• Confirm the required firmware.
• Inspect the machine's MDB system.
• Locate the DEX connection.
• Check available mounting space.
• Confirm cellular coverage.
• Review the installation guide.
• Verify the payment account and service setup.
• Gather the required tools and mounting hardware.

Power Down the Vending Machine

Always follow the manufacturer's installation instructions when working with vending equipment.

Cantaloupe's Quick Start Guide specifically instructs installers to power down the machine before installing the device.

Do not connect or disconnect vending payment wiring while the equipment is powered unless the official procedure specifically allows it.

Typical Engage Connections

The Engage installation uses several important connections. The exact setup depends on the machine and installation configuration.

Cantaloupe's Quick Start Guide identifies three primary connections on the Engage: the DEX cable, MDB harness, and antenna cable. The guide also identifies the LAN port as a connection that should not be used in the standard installation shown in that guide.

Always use the current Cantaloupe documentation for your specific reader and installation.

Important DEX Port Detail

Correct DEX installation is important.

Cantaloupe's Quick Start Guide states that the DEX cable should connect to the Com 1 port. It warns that an incorrect DEX connection can result in payment acceptance without DEX data being sent to Seed.

This is an important installation detail for operators who want both cashless payment and machine data.

Startup and Device Activation

After installation, the Engage needs to complete its startup process.

The device may need to communicate with the cellular network. It may also need to process software updates when it is first powered on.

Cantaloupe's installation guide recommends allowing the device to complete updates before performing test transactions. It also describes a ready screen that prompts the customer to tap, insert, or swipe a payment method.

Do not shut down the device while required updates are processing.

Testing the Reader

Testing is an important part of installation.

After the device completes its startup sequence, follow the official test procedure. Cantaloupe's documentation describes using a driver card for an initial test swipe during field setup.

If the first attempt does not work, the installation guide explains that the device may temporarily display a network-related message while it establishes communication. The documented procedure allows the device time to return to a ready state before another test.

Follow the current manufacturer instructions rather than repeatedly disconnecting or restarting the equipment.

Payment Processing

The Engage handles the customer payment interaction and communicates with the vending machine.

A typical transaction begins when the customer selects a supported payment method. The reader processes the payment request. Once authorization is received, the vending machine can receive the appropriate credit and allow the purchase.

The exact customer prompts can vary based on configuration and software.

Credit Card Payment Process

A customer can begin a transaction using a supported payment card.

1. Approach the vending machine.
2. Choose the desired product.
3. Start the payment process.
4. Tap, insert, or swipe the payment method as prompted.
5. Wait for payment authorization.
6. Follow the touchscreen instructions.
7. Complete the vending selection.
8. Collect the purchased product.

The exact order can vary by vending machine configuration.

Contactless Payment Process

For contactless payments, the customer presents a compatible card or mobile device near the contactless reader.

The reader detects the payment method and processes the transaction. The customer should follow the prompts displayed on the screen.

Contactless payment can reduce the number of physical steps required during a vending transaction.

Mobile Wallet Payment Process

Mobile wallet payment works in a similar way. The customer uses a compatible smartphone or wearable device with a supported mobile wallet.

The customer presents the device to the contactless payment area. The Engage processes the payment through its supported payment platform.

Mobile wallet availability can depend on the customer's device, wallet, card issuer, payment network, and account setup.

Fast Payment Processing

Cantaloupe lists ultra-fast processing as one of the Engage features.

Fast payment processing is useful in busy vending locations. Customers want to complete purchases without unnecessary waiting.

Actual transaction time can depend on cellular connectivity, payment networks, machine response, and other factors.

Vending Telemetry

Telemetry is a major part of the Engage platform.

Telemetry allows connected vending equipment to send useful information to a remote management system. This can include sales information and machine health data.

Cantaloupe states that its readers include telemeter functionality and can feed sales and machine health information into Seed Live for remote monitoring.

Remote Sales Data

Connected sales data can help vending operators understand machine activity without visiting every location.

Operators can use remote data as part of their normal business workflow. The information can help with planning, reporting, and machine management.

Data availability depends on the connected service, machine configuration, and account setup.

Remote Machine Health Monitoring

Machine health information can be useful when managing a vending route.

A machine may be earning sales but still have an operational issue. Remote monitoring can help operators identify problems sooner than a routine physical visit alone.

Cantaloupe describes remote monitoring as a feature of its Engage platform.

Cashless Payment for Vending Routes

Operators managing several vending machines can benefit from connected payment technology.

Instead of treating every machine as an isolated cash-only unit, an operator can connect payment and telemetry services across a route.

This can create a more consistent customer experience across multiple machines.

Useful for New and Existing Vending Equipment

The Engage can be considered for both new vending installations and retrofit projects.

For an existing machine, the operator should confirm that the machine is compatible before purchasing the reader.

For a new machine, the operator can plan cashless payment during the initial equipment setup.

What Is Included?

Cantaloupe's product listing identifies a range of items included with the Engage package. These include the all-in-one card reader and telemeter, touchscreen, payment platform, 4G antenna, DEX cable, MDB cable, mounting components, gasket, screws, washer, spacer components, drill template, and related cables and documentation.

• All-in-one Engage card reader and telemeter
• Touchscreen
• Payment platform
• 4G antenna
• DEX cable
• MDB cable
• Mounting hardware
• Reader gasket
• Spacer components
• Mounting screws
• Washer
• Drill template
• Additional connection cable
• Product documentation

Package contents can change. Verify the contents of the specific kit being purchased.

Engage Technical Specifications

Specification	Details
Connectivity	4G/LTE
Machine Interface	MDB
Display	3.5-inch touchscreen
Bluetooth	Supported
Contactless	Supported
Memory	256MB
Payment Security	PCI PTS 5.X certified device
Payment Types	EMV chip, EMV contactless, NFC/RFID, magstripe, mobile wallet
Telemetry	Integrated
Remote Monitoring	Supported
VMS Integration	Supported

Specifications are based on Cantaloupe's published Engage product information.

Why Operators Choose Cashless Vending

Cashless payment can make vending more convenient for customers.

It can also provide operators with more connected data.

• Customers can use electronic payment methods.
• Mobile wallets can be supported.
• Contactless payment can be supported.
• EMV chip cards can be supported.
• Payment and telemetry hardware are combined.
• 4G/LTE provides cellular connectivity.
• Remote monitoring can reduce unnecessary site visits.
• Sales data can be available through connected services.
• Machine health data can support route management.

Cashless Vending in High-Traffic Locations

High-traffic vending locations can benefit from simple payment options.

Employees may not carry cash during a work shift. Students may prefer mobile payments. Hotel guests may expect card payments. Visitors at public facilities may use contactless cards or smartphones.

A cashless reader gives these customers another way to pay.

Office Vending Machines

Office vending machines are a common application for cashless payment.

Employees can use cards or mobile wallets instead of keeping coins at their desks.

For operators, telemetry can provide useful information about machine activity and sales.

Warehouse and Industrial Vending

Vending machines in warehouses and industrial facilities may operate for long hours.

Employees can benefit from convenient payment methods. Operators can benefit from remote machine information.

Before installation, confirm that the vending machine and Engage configuration are compatible.

School and Campus Vending

Students and staff often use electronic payment methods. A cashless reader can provide another payment option for campus vending.

Cantaloupe also identifies campus card acceptance as an available capability on Engage and Engage Combo devices. Availability depends on the appropriate setup and service configuration.

Hotel and Hospitality Vending

Hotels and hospitality facilities can use vending equipment in guest areas, employee areas, and other locations.

Visitors may prefer card or contactless payment because they do not have local cash available.

A touchscreen reader can also provide a more modern payment experience.

Healthcare Facilities

Hospitals and healthcare facilities may operate vending machines for employees, patients, and visitors.

Cashless payment can be useful when customers want a quick transaction without handling cash.

Apartment and Residential Locations

Vending machines can also be placed in residential communities.

Residents may use contactless cards or mobile wallets for purchases. A connected card reader can provide a convenient payment option while giving operators access to remote machine information.

Retrofit Your Existing Vending Machine

Replacing an entire vending machine is not always necessary when the goal is to add cashless payment.

A compatible Engage reader can be installed as part of a retrofit project.

Before starting a retrofit, check:

• Machine manufacturer
• Machine model
• Machine controller
• MDB compatibility
• DEX compatibility
• Firmware requirements
• Mounting requirements
• Cellular signal
• Payment account requirements

Cantaloupe's compatibility guide should be used to confirm the requirements for the exact machine.

Modernize Older Vending Equipment

An older vending machine may still be mechanically useful while lacking modern payment technology.

Adding a compatible cashless reader can extend the usefulness of existing equipment.

Instead of replacing a machine solely because it lacks card payment, operators can investigate whether the equipment supports a compatible reader retrofit.

Touchscreen Interface for Customers

The touchscreen is one of the most visible parts of the Engage.

It gives the customer a clear visual interface during the payment process.

The display can provide prompts that guide the customer through the transaction.

This can be especially useful for customers who are unfamiliar with the machine.

Clear Payment Instructions

Payment instructions should be easy to follow.

The Engage's touchscreen helps provide a visual payment interface. Customers can see prompts and respond to the instructions displayed on the reader.

Clear instructions can help reduce confusion and make transactions easier.

Payment Security Features

Payment terminals need strong security features because they process sensitive payment transactions.

Cantaloupe lists PCI PTS 5.X certification and anti-tamper security among the Engage's features.

Operators should not alter the reader's internal components. Physical installation should use the supplied or approved hardware and the manufacturer's instructions.

Account and Service Requirements

A card reader is only one part of a complete cashless vending system.

The payment device also requires the appropriate service and account setup.

Cantaloupe's documentation notes that an account and payment service arrangement are required for the device to accept credit card transactions.

Service requirements can vary by program and purchase configuration.

Installation Accessories

Some vending machines require additional parts to install a reader correctly.

Cantaloupe's compatibility documentation notes that some machines may require additional accessories or firmware updates.

Do not assume that one mounting method will work on every vending machine.

Mounting the Engage

The Engage can be mounted using appropriate mounting hardware and a suitable opening or surface on the vending machine.

The installation kit includes mounting components and a drill template.

The exact mounting method depends on the vending machine and reader installation configuration.

Surface Mount Installations

Some machines require a surface-mounted installation.

Cantaloupe provides separate installation instructions for different machine configurations, including solid surfaces, Lexan surfaces, and standard machine mounting arrangements.

Use the installation procedure that matches the machine being serviced.

Keep Cables Secure

After connecting the reader, route cables so they do not interfere with moving components.

Loose wiring can create service problems. Cables should not be pinched by the machine door or exposed to unnecessary stress.

Check the wiring before closing the machine.

Cellular Signal Considerations

The Engage uses cellular connectivity. The installation location can therefore affect communication quality.

Before finalizing the installation, consider the machine's location and potential signal limitations.

Metal cabinets and underground locations can affect wireless communication.

What Happens if the Reader Shows Not Ready?

A not-ready message does not automatically mean that the reader is defective.

The device may still be starting up, connecting to the network, or processing required software updates.

Cantaloupe's installation documentation explains that the device can take time to initialize and connect during first startup.

Allow the device to complete the documented startup process before troubleshooting hardware.

Common Engage Installation Checks

If the reader does not operate as expected, begin with basic checks.

• Confirm the vending machine is powered.
• Confirm the Engage is receiving power.
• Check the MDB connection.
• Check the DEX connection.
• Confirm the DEX cable is connected to the correct port.
• Check the antenna connection.
• Confirm cellular service is available.
• Check machine compatibility.
• Verify firmware requirements.
• Allow the device to complete software updates.
• Review the current Cantaloupe troubleshooting guide.

DEX Troubleshooting

DEX problems can sometimes be related to wiring or port selection.

Cantaloupe provides specific DEX troubleshooting resources for Engage devices. Its Quick Start Guide also identifies the required Com 1 connection for the DEX cable.

Check the official documentation before changing cables or machine settings.

Compatibility Troubleshooting

If a vending machine does not communicate correctly with the Engage, verify the exact machine model.

Then check the current compatibility guide for firmware requirements, extensions, and other special requirements.

Cantaloupe's guide lists different requirements for different machine families.

Why Firmware Updates Matter

Vending machine firmware controls how the machine communicates with payment equipment and other components.

An older firmware version may not support the required communication functions.

This is why compatibility should be checked before installation rather than after the machine is already disassembled.

Engage Versus Basic Card Readers

A basic payment reader may provide payment acceptance. The Engage combines payment acceptance with telemetry, touchscreen interaction, and cellular connectivity.

Cantaloupe describes the G11 as a separate card reader and telemeter combination, while Engage and Engage Combo combine card reader, telemeter, and touchscreen functions in one unit.

The right device depends on the vending machine, payment requirements, installation space, and desired features.

Engage Versus Engage Combo

Engage and Engage Combo are related Cantaloupe products, but they are designed for different installation situations.

Cantaloupe describes Engage and Engage Combo as all-in-one devices with card reader, telemeter, and touchscreen functions.

Engage Combo is specifically designed for installations where the reader can fit over an existing bill validator or acceptor.

Check the physical requirements of your vending machine before choosing between models.

Engage for Vending Machine Operators

The Engage can provide several useful functions in one device.

• Cashless payment acceptance
• Touchscreen customer interface
• 4G/LTE connectivity
• Vending machine communication
• Telemetry
• Remote monitoring
• Payment security features
• Support for multiple payment technologies

This combination can help operators modernize their vending equipment.

Benefits for Customers

• More payment choices
• Credit and debit card support
• EMV chip support
• Contactless payment support
• Mobile wallet support
• Touchscreen payment instructions
• Convenient cashless transactions

Benefits for Operators

• Cashless payment capability
• Integrated telemetry
• 4G/LTE connectivity
• Remote monitoring
• Sales data access through connected services
• Machine health information
• Modern customer interface
• Retrofit potential on compatible equipment

Vending Machine Payment Technology

Vending payment technology has changed from simple coin mechanisms to systems that support cards, contactless payments, mobile wallets, and remote connectivity.

The Engage brings several of these technologies together.

This makes it possible to turn compatible vending equipment into a connected cashless sales point.

Cashless Payment Can Expand Customer Choice

A customer should not have to leave a vending machine because they do not have coins.

Cashless payment gives the customer another option.

This is especially important in locations where people commonly use cards or smartphones.

Connected Vending Technology

The Engage is designed around the idea of connected vending.

The card reader communicates with the vending machine. The telemeter communicates with the connected management system. The customer interacts with the touchscreen.

These functions work together to create a connected vending environment.

Machine Sales Visibility

Remote sales information can help operators understand how individual machines are performing.

Operators can use sales information as part of route planning, inventory planning, and general business management.

The exact reports and functions available depend on the connected Cantaloupe service.

Reduce Unnecessary Service Visits

Connected vending data can help operators determine when a machine may require attention.

Instead of treating every machine visit as a routine inspection, operators can use available information to help plan service work.

This can be useful for large vending routes.

Manage Multiple Machines

Managing multiple vending machines can become difficult when each machine must be checked manually.

Connected readers can provide a centralized source of information through the associated software platform.

Cantaloupe identifies Seed Live as a platform for device management and sales and machine tracking.

Customer-Friendly Vending

Modern vending should be easy to use.

A touchscreen helps provide visual instructions. Multiple payment methods let customers choose how they want to pay.

The combination can make a vending machine easier to approach and use.

Use in Unattended Retail

Unattended retail depends on reliable self-service technology.

The customer must be able to complete a purchase without assistance.

The Engage provides a touchscreen payment interface and multiple payment options in a single device.

Important Purchasing Considerations

Before ordering a Cantaloupe Engage Credit Card Reader, review the following information.

• Confirm the exact vending machine model.
• Check compatibility.
• Review firmware requirements.
• Confirm MDB support.
• Confirm DEX requirements.
• Check mounting space.
• Review network coverage.
• Confirm Cantaloupe account requirements.
• Review service and payment processing requirements.
• Confirm the kit contents.

Do Not Assume Every Machine Is Identical

Two vending machines from the same manufacturer can have different wiring or firmware.

Even machines with similar appearances may require different installation procedures.

Always use the exact model information when checking compatibility.

Professional Installation

Vending payment installation involves electrical connections, payment equipment, communication cables, and machine hardware.

If you are not familiar with vending machine wiring, use a qualified technician.

Follow the manufacturer's installation instructions carefully.

Maintenance Tips

• Keep the touchscreen clean.
• Inspect the reader mounting hardware.
• Check exposed cables for damage.
• Inspect the antenna connection.
• Verify the reader remains securely mounted.
• Monitor payment errors.
• Review machine communication status.
• Check for unusual physical damage.
• Follow Cantaloupe security recommendations.
• Use approved replacement parts when needed.

Cleaning the Touchscreen

The touchscreen is exposed to customer contact throughout the day.

Keep the screen clean using an appropriate cleaning method recommended by the manufacturer.

Avoid harsh chemicals or cleaning methods that could damage the display or housing.

Do not spray liquid directly into the reader.

Protect the Reader From Damage

The Engage should be mounted securely.

Loose mounting can allow the reader to move during normal customer use. Damaged mounting hardware should be inspected and replaced as appropriate.

Do not drill new holes without confirming the location and installation requirements.

Monitor Payment Performance

Payment issues should be investigated if customers repeatedly report problems.

Check the machine's communication, network connection, wiring, payment service status, and compatibility before assuming the reader needs replacement.

Monitor Cellular Connectivity

Because the Engage uses cellular communication, network conditions can affect connected functions.

If the reader repeatedly loses communication, investigate signal strength and other network-related factors.

Cantaloupe provides troubleshooting resources for signal strength and Engage communication.

Security Best Practices

Payment equipment should be checked regularly for signs of tampering.

• Inspect the reader housing.
• Check mounting screws.
• Look for unexpected damage.
• Check cables for signs of tampering.
• Watch for unusual payment behavior.
• Follow Cantaloupe's payment security guidance.
• Report suspicious activity according to your service procedures.

Cantaloupe provides security guidance for card readers, including best practices intended to help operators protect their devices and follow PCI-DSS requirements.

Use the Correct Replacement Parts

Do not substitute random screws, cables, or connectors for payment equipment.

The correct hardware helps protect the reader and maintain the intended installation.

Cantaloupe's product information identifies specific mounting hardware and connection components included with the Engage package.

SEO Product Keywords

This product is relevant to customers searching for terms such as:

• Cantaloupe Engage credit card reader
• Cantaloupe Engage card reader
• Engage vending card reader
• Cantaloupe vending card reader
• vending machine credit card reader
• vending machine card reader
• cashless vending machine reader
• cashless payment vending machine
• EMV vending machine reader
• contactless vending machine reader
• mobile wallet vending reader
• 4G vending card reader
• MDB vending card reader
• DEX vending card reader
• vending telemetry device
• Cantaloupe telemetry reader
• vending machine payment terminal
• vending machine cashless payment system
• vending machine credit card payment system
• vending touchscreen card reader

Frequently Asked Questions

What is the Cantaloupe Engage?

The Cantaloupe Engage is an all-in-one card reader and telemeter designed for vending and unattended retail applications. It includes a touchscreen, payment platform, cellular connectivity, and vending machine communication capabilities.

What payment methods does Engage support?

Cantaloupe lists EMV chip, EMV contactless, NFC/RFID, magstripe, and mobile wallet support for Engage.

Does Engage use 4G?

Yes. Cantaloupe lists 4G/LTE connectivity as a feature of the Engage.

Does Engage require Wi-Fi?

Cantaloupe states that its readers use Verizon or AT&T 4G LTE and do not require on-site Wi-Fi. Cantaloupe also identifies Ethernet/LAN as an option for Engage.

Does Engage support MDB?

Yes. MDB is listed in the Engage technical specifications.

Does Engage support DEX?

Engage installations can use DEX communication. Cantaloupe's Quick Start Guide provides specific DEX wiring instructions and identifies the Com 1 port for the DEX cable.

Does Engage have a touchscreen?

Yes. The Engage has a 3.5-inch touchscreen.

Does Engage support Apple Pay or other mobile wallets?

The Engage supports mobile wallets. Specific wallet availability depends on the customer's device, wallet, card, issuer, and payment network.

Can Engage accept contactless cards?

Yes. Cantaloupe lists EMV contactless and NFC/RFID among supported payment types.

Can Engage accept chip cards?

Yes. EMV chip payment is supported.

Can Engage accept magnetic stripe cards?

Yes. Magstripe is listed among the supported payment methods.

Is Engage compatible with every vending machine?

No. Compatibility depends on the vending machine model, firmware, communication system, mounting configuration, and other factors. Cantaloupe maintains a compatibility guide with machine-specific requirements.

Can Engage be installed on an existing vending machine?

Yes, compatible machines can be retrofitted with Cantaloupe card readers. However, the exact machine must be checked for compatibility before installation.

Does Engage provide telemetry?

Yes. Engage combines the card reader and telemeter in one device. Cantaloupe states that its readers can provide sales and machine health data for remote monitoring.

Can operators monitor vending machines remotely?

Yes. Cantaloupe lists remote monitoring as an Engage feature and describes its connected platform as a way to monitor sales and machine performance.

What is Seed Live?

Seed Live is part of Cantaloupe's connected device management environment. Cantaloupe describes it as providing device management and sales and machine tracking functions.

Does Engage require a Cantaloupe account?

Cantaloupe's current product information states that the product requires an existing Cantaloupe account and that onboarding must be completed before shipping for certain purchases.

Does the Engage require a payment service?

Yes. The device needs the appropriate payment and service setup before it can process credit card transactions.

What should I check before buying an Engage?

Check the vending machine make and model, MDB compatibility, DEX requirements, firmware, mounting configuration, network coverage, account requirements, and payment service requirements.

Why is my Engage showing Not Ready?

The reader may still be starting, connecting to the network, or processing software updates. Cantaloupe's installation guide recommends allowing the device to complete its startup and update process before testing it.

Why is my payment reader working but DEX data is not?

Check the DEX cable and port. Cantaloupe's Quick Start Guide specifically instructs installers to connect the DEX cable to Com 1.

What should I do if my vending machine is not compatible?

Do not force the installation. Check Cantaloupe's current compatibility documentation for your machine. Some equipment may need a firmware update, extension, or other accessory.

Does the Engage support Bluetooth?

Yes. Bluetooth is listed in the technical specifications published for the Engage.

How much memory does the Engage have?

Cantaloupe lists 256MB of memory for the Engage.

Is the Engage PCI compliant?

Cantaloupe lists the Engage as a PCI PTS 5.X certified device. Operators should continue to follow all applicable payment security requirements and Cantaloupe's current security guidance.

Does the Engage have anti-tamper protection?

Yes. Anti-tamper security is listed as one of the Engage features.

Can the Engage work without an internet connection at the location?

The Engage uses cellular connectivity, so it does not require customer-provided Wi-Fi for its standard cellular communication. Cantaloupe lists 4G/LTE connectivity for the device.

Is installation the same on every vending machine?

No. Installation varies by machine. Cantaloupe provides different installation resources for different machine types and configurations.

Installation Checklist

• Verify machine manufacturer.
• Verify exact machine model.
• Check Engage compatibility.
• Check minimum firmware requirements.
• Power down the machine.
• Plan the reader mounting location.
• Confirm the mounting surface.
• Connect the MDB harness correctly.
• Connect the DEX cable to the correct port.
• Connect the antenna.
• Secure all cables.
• Restore machine power.
• Allow startup to finish.
• Allow software updates to complete.
• Confirm the reader reaches Ready status.
• Perform the documented test transaction.
• Confirm vending machine communication.
• Confirm telemetry communication.

Recommended Installation Workflow

1. Identify the machine. Record the manufacturer and model.
2. Check compatibility. Review the current Cantaloupe guide.
3. Review wiring. Locate MDB and DEX connections.
4. Plan mounting. Select a safe and accessible location.
5. Power down. Follow the installation procedure.
6. Mount the reader. Use the correct hardware.
7. Connect wiring. Follow the official wiring instructions.
8. Connect the antenna. Make sure it is secure.
9. Power up. Allow the device to start.
10. Wait for updates. Do not interrupt the update process.
11. Test payment. Follow the official test procedure.
12. Test vending. Confirm that the machine accepts credit.
13. Test data. Confirm DEX and telemetry operation.

Built for Modern Vending

The Cantaloupe Engage Credit Card Reader brings cashless payment, touchscreen interaction, cellular connectivity, and telemetry together in one vending payment device.

It supports a broad selection of payment methods. Customers can use EMV chip cards, contactless cards, NFC/RFID, magstripe, and mobile wallets.

For operators, the device can provide more than payment acceptance. It can connect vending machines to remote monitoring and sales data services.

A Connected Vending Upgrade

Adding cashless payment can modernize a vending machine without replacing the complete machine.

The Engage is designed for compatible vending equipment and can serve as an important part of a connected vending system.

Its touchscreen gives customers a modern interface. Its cellular connection provides communication. Its telemetry capabilities can provide useful machine information.

Designed for Convenience

The customer sees a touchscreen and payment terminal.

The operator sees a connected vending device.

These two sides of the system work together.

Customers get more payment options. Operators get connected equipment and remote information.

Vending World – Cantaloupe Engage Credit Card Reader

The Cantaloupe Engage Credit Card Reader is a cashless payment and telemetry solution for compatible vending machines. It combines a 3.5-inch touchscreen with 4G/LTE connectivity, MDB communication, payment processing, and remote monitoring capabilities.

It supports EMV chip, EMV contactless, NFC/RFID, magstripe, and mobile wallet payments. Cantaloupe also lists PCI PTS 5.X certification and anti-tamper security among the device features.

For vending operators looking to add modern payment technology and connected machine functionality, the Engage provides a single device designed to handle both functions.

Product Highlights

• Cashless payment: Give customers more ways to pay.
• Touchscreen: Provide a clear interactive payment interface.
• 4G/LTE: Connect the reader through cellular service.
• MDB: Communicate with compatible vending equipment.
• DEX: Support vending data communication when properly installed.
• Telemetry: Connect vending equipment to remote management services.
• Mobile wallets: Support compatible mobile payment methods.
• Contactless: Support tap-based payment.
• EMV: Support chip-card transactions.
• Magstripe: Support magnetic stripe payment.
• Security: PCI PTS 5.X certified device with anti-tamper features.
• Monitoring: Access connected sales and machine information through supported services.

Final Buying Checklist

Before ordering this product, confirm that your vending machine is compatible with the Cantaloupe Engage. Check the exact manufacturer and model. Review firmware requirements. Confirm the available MDB and DEX connections. Check the mounting area. Verify cellular coverage. Confirm the required Cantaloupe account and payment service.

Cantaloupe regularly updates its compatibility information. Always use the current manufacturer documentation when preparing an installation.

Important Compatibility Notice

Compatibility is machine-specific. The Cantaloupe Engage should not be installed on a vending machine until the exact equipment configuration has been checked. Some vending machines may require firmware updates, cable extensions, special mounting hardware, or other accessories.

Installation requirements may also change as manufacturers update equipment and payment systems. Review the latest documentation before installation.

Why the Cantaloupe Engage Is More Than a Card Reader

A traditional card reader focuses mainly on payment acceptance. The Engage combines payment with connectivity and telemetry.

This difference matters for vending operators who want to manage equipment remotely.

The device can accept supported payment methods while also communicating with compatible vending equipment and connected management services.

That combination makes the Engage a complete cashless vending technology solution rather than simply a payment terminal.

Support for Multiple Customer Payment Habits

Every customer may prefer a different way to pay.

One customer may use an EMV chip card. Another may tap a contactless card. Another may use a smartphone wallet. Another may still use a magnetic stripe card.

The Engage supports multiple payment technologies in one device.

This gives operators a way to offer a broad payment experience without installing a separate reader for every payment type.

Easy-to-Understand Customer Interaction

The touchscreen provides visual feedback during the payment process.

This can help customers understand what the reader is waiting for. It can also provide transaction status information during payment authorization.

Clear prompts are particularly helpful in unattended retail because there is no cashier standing nearby to explain the process.

Useful for Route Operators

Vending route operators manage machines across multiple locations.

Remote data can make that job easier by providing information without requiring an immediate physical visit.

The Engage's telemetry and remote monitoring capabilities can support a connected vending management strategy. Cantaloupe describes its card readers as providing sales and machine health data through its connected platform.

Connected Payment and Machine Data

Payment information and machine information are closely related in vending.

A payment reader must communicate with the vending machine before the machine can vend the selected product. A connected telemeter can also provide information about machine operation.

The Engage combines these functions in a single device.

Good Fit for Cashless Vending Projects

The Cantaloupe Engage can be considered for vending operators planning a cashless payment upgrade, new vending deployment, or connected vending project.

It is particularly relevant when an operator wants more than simple card acceptance and also wants telemetry and remote monitoring capabilities.

Conclusion

The Cantaloupe Engage Credit Card Reader is a modern payment and telemetry solution for compatible vending machines. It combines a 3.5-inch touchscreen, 4G/LTE connectivity, MDB communication, payment processing, and remote monitoring capabilities.

Customers can use supported EMV chip cards, contactless cards, NFC/RFID, magnetic stripe cards, and mobile wallets.

Operators can use the connected system to support cashless transactions while gaining access to sales and machine information through compatible Cantaloupe services.

The Engage is also designed with payment security in mind. Cantaloupe lists PCI PTS 5.X certification and anti-tamper security among its features.

For the best installation results, verify the exact vending machine model, firmware, MDB requirements, DEX requirements, mounting method, network coverage, and account setup before installation. Cantaloupe's compatibility guide should be used as the final reference for machine-specific requirements.

The Cantaloupe Engage is a practical way to bring modern cashless payment and connected vending technology to compatible vending machines.
