Flat Rate Repair – Coinco BillPro BP4 Bill Validator – Not an Outright Purchase

Important: This listing is for a flat-rate repair and exchange service for a Coinco BillPro BP4 bill validator. It is not an outright purchase of a new or standalone replacement bill validator. Please read all instructions before placing your order.

Coinco BillPro BP4 Flat Rate Repair Service

Keep your vending machine payment system working with the Coinco BillPro BP4 flat rate repair service from Vending World. This service is designed for operators who have an existing BillPro BP4 bill validator that needs service, repair, testing, or exchange.

The BillPro BP4 is a well-known MDB bill acceptor used in vending equipment. It was designed to work with MDB vending machines and can be configured to accept common United States currency denominations, including $1, $5, $10, and $20 bills. The BillPro platform uses sensors, transport components, electronic controls, and an MDB interface to identify bills, transport them through the validator, stack accepted bills, and communicate credit to the vending system.

When a bill validator develops problems, replacing the entire payment system may not always be necessary. A repair or exchange service can provide an option for operators who already have compatible equipment in the field.

This page is specifically for that service.

What You Are Purchasing

This listing represents a flat-rate repair service for a Coinco BillPro BP4 bill validator. It should not be treated as a standard product listing for an immediately shipped bill validator.

The process starts with your existing unit. You send your BillPro BP4 to Vending World. Once the unit has been received, the service order can be processed according to the flat-rate repair procedure.

This arrangement is important because the unit you send is the core involved in the repair or exchange process. Vending World specifically states that a replacement is not shipped until the core unit has been received.

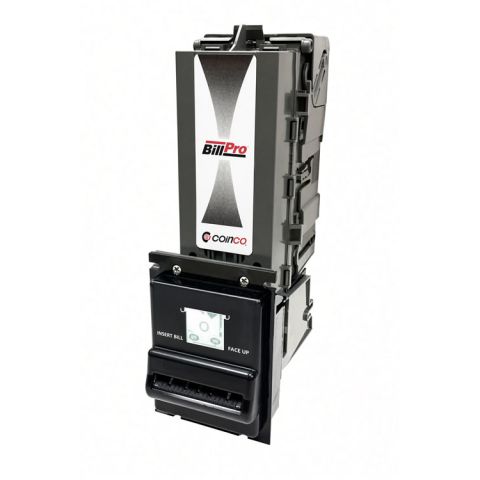

Coinco BillPro BP4 at a Glance

Specification	Details
Manufacturer	Coinco
Product Family	BillPro
Model	BP4
Service Type	Flat-rate repair / exchange service
Communication	MDB
Bill Acceptance	$1, $5, $10 and $20, depending on configuration
Application	MDB vending equipment
Unit Status	Refurbished/service exchange process
Purchase Type	Repair service, not an outright purchase

Why Service a Coinco BillPro BP4?

A bill validator is an important part of a cash vending machine. Customers use the validator to insert paper currency. The machine then needs to recognize the bill, confirm that it is acceptable, transport it through the bill path, stack it, and report the correct credit to the vending controller.

If the validator stops accepting bills, accepts bills inconsistently, jams, returns bills, or fails to communicate with the vending machine, the cash-payment portion of the machine can become difficult or impossible for customers to use.

For vending operators, a payment problem can create a service call even when the rest of the vending machine is working correctly.

That is why maintaining the bill validator matters.

The Coinco BillPro platform was designed with a modular construction and accessible bill path. Its design includes optical sensors, magnetic sensing, transport belts, a stacker system, an anti-pullback system, and electronic controls. These components work together during the bill acceptance process.

A repair or exchange service can be useful when an operator wants to continue using compatible BillPro equipment rather than immediately replacing an entire payment system.

Who Is This Repair Service For?

This service is intended for vending operators, vending route owners, technicians, equipment resellers, repair shops, and businesses maintaining vending machines equipped with a compatible Coinco BillPro BP4.

It can be useful for operators who have older machines in service and need to keep existing equipment operational.

• Vending machine route operators
• Independent vending businesses
• Commercial vending operators
• Vending machine technicians
• Vending equipment repair shops
• Machine refurbishers
• Used vending machine dealers
• Operators maintaining multiple MDB machines
• Businesses that keep spare validators in inventory
• Facilities with multiple cash-operated vending machines

How the Flat Rate Repair Process Works

The process is simple, but the order of the steps matters.

Step 1 – Identify Your BillPro BP4

Before shipping your unit, confirm that the validator you are sending is the model associated with this service. The BillPro family includes several configurations. The BP4 is the four-denomination version associated with $1, $5, $10, and $20 acceptance configurations.

Check the label on your validator before sending it. Model and serial information can normally be found on the unit.

Step 2 – Remove the Unit From the Vending Machine

Disconnect power from the vending machine before removing the validator. Follow the machine manufacturer's service procedure. Do not work on a powered vending machine unless you are qualified to do so.

Carefully disconnect the MDB harness and remove the validator from the mounting area.

Step 3 – Package the Unit

Package the validator so that it is protected during transportation. The BillPro service documentation recommends retaining suitable packaging for transportation and storage.

Use enough protective material to prevent unnecessary movement inside the shipping box. Protect the inlet, housing, bill box, connectors, and other exposed areas from impact.

Step 4 – Ship Your Core Unit

Send your BillPro BP4 unit to:

Vending World
9055 Rancho Park Ct.
Rancho Cucamonga, CA 91730

Use a shipping service that provides tracking. Tracking allows you to confirm when the package reaches its destination.

Step 5 – Confirm Delivery

Wait until the tracking information confirms that Vending World has received your unit.

This step is important. The product listing is not intended to send a replacement before your core unit has been received.

Step 6 – Place the Service Order

Once your unit has been received, use this product page to complete the checkout process for the flat-rate repair service.

Step 7 – Service and Exchange Process

The submitted unit enters the service process. The goal is to return a properly serviced unit through the repair/exchange process described by Vending World.

Because this is a service transaction, customers should not treat the checkout as a standard order for an unrelated new validator.

What Makes the BillPro BP4 Different?

The BillPro BP4 belongs to the Coinco BillPro family of vending bill acceptors. The platform was designed for MDB vending applications. MDB allows payment components to communicate with the vending machine controller and other compatible payment devices.

The BillPro documentation identifies BP4 configurations for four bill denominations. These include $1, $5, $10, and $20 bills.

The validator's electronics and sensors work together to evaluate an inserted bill. The bill moves through the transport path while optical and magnetic sensing information is evaluated by the validator's control electronics.

If the bill passes the validation process and matches an enabled denomination, the transport system moves it toward the stacking position. The stacker then places the bill into the bill box, and credit is communicated to the vending system.

If the bill does not meet the required conditions, the transport system can reverse and return the bill to the customer.

MDB Communication

The Coinco BillPro is an MDB-only bill acceptor. MDB stands for Multi-Drop Bus. It is a common communication system used by vending machines and payment devices.

MDB allows the bill validator to communicate with the vending machine controller and related payment equipment.

Before sending a unit for service, operators should confirm that their vending machine uses the appropriate MDB configuration.

A bill validator with a different interface should not be assumed to be interchangeable simply because it looks similar.

Supported Bill Denominations

The BP4 is associated with four-denomination bill acceptance. The Coinco documentation identifies $1, $5, $10, and $20 bills for BP4 configurations.

• $1 bills – Commonly used for lower-priced vending products.
• $5 bills – Useful for higher-priced products and multi-item purchases.
• $10 bills – Provides additional payment flexibility.
• $20 bills – Allows customers to make larger cash purchases when the machine is configured for that denomination.

The actual enabled denominations depend on the validator's configuration and the vending machine setup.

Configurable Bill Acceptance

The BillPro platform provides configuration options for different bill acceptance levels. The documented BP4 options include combinations of $1, $5, $10, and $20 acceptance, with different security settings.

This gives operators flexibility when configuring compatible vending equipment.

Configuration should be selected based on the vending machine, operating environment, and payment requirements.

Bill Validation Technology

A bill validator does more than simply pull a bill into the machine.

The BillPro uses several sensing and transport components during the validation process. When a bill enters the validator, sensors detect its position and help determine whether it is being inserted correctly.

As the bill moves through the transport path, optical and magnetic sensors provide information to the microprocessor. The electronics use this information to determine whether the bill should be accepted.

If the bill is accepted, it moves toward the stacking position. If it is rejected, the transport system reverses and returns the bill.

This process helps separate accepted currency from bills that do not meet the validator's programmed requirements.

Bill Transport System

The bill transport system is one of the key mechanical sections of the BillPro.

The system uses a motor, gearcase assembly, pulleys, belts, rollers, and related components to move bills through the validator.

Proper transport is important because the bill must pass the sensing areas in a controlled manner. A transport problem can interfere with validation, stacking, or bill return.

Dirt, debris, worn components, damaged belts, or other mechanical issues can affect bill movement.

Bill Stacking System

After a bill is accepted, it needs to be moved into the bill box.

The BillPro uses a stacker motor and pusher mechanism to move accepted currency into the stacker area. The anti-pullback system also plays a role in determining when the bill has reached the proper position.

This is important because the validator needs to complete the acceptance process before the machine should provide credit.

Anti-Pullback Protection

The BillPro design includes anti-pullback components. These components help protect the acceptance process from attempts to pull a bill back out after it has entered the validator.

Anti-pullback hardware works with the validator's sensors and control logic.

This is one of several features that contribute to the BillPro's intended use in vending environments.

Illuminated Bill Inlet

The BillPro uses an illuminated bill inlet. This makes the bill entry area easier for customers to see and can also provide useful status information during certain operating and configuration conditions.

For vending machines placed in busy locations, a visible bill inlet can make the payment area easier to identify.

Accessible Bill Path

The BillPro design provides access to the bill path for service and cleaning.

Keeping the bill path clean is important. Currency can carry dust, dirt, oils, moisture, and other material into a bill validator. Over time, contamination can affect sensors and moving components.

Routine maintenance can help reduce problems caused by accumulated debris.

Why Bill Validator Maintenance Matters

Bill validators operate in demanding environments.

They handle paper currency repeatedly. They operate inside vending machines that may be exposed to dust, temperature changes, moisture, customer use, and long periods of operation.

Currency itself is not always clean. Bills can carry dirt and moisture into the bill path.

For this reason, regular inspection and cleaning can be important parts of vending machine maintenance.

Common BillPro Symptoms

A BillPro that needs service may show different symptoms. A symptom does not always identify one specific failed component. Troubleshooting should consider the complete vending system.

Possible symptoms can include:

• Bill is not accepted.
• Bill is accepted inconsistently.
• Bill is repeatedly returned.
• Validator does not appear to power up normally.
• Validator does not communicate with the vending machine.
• Bill transport stops during insertion.
• Bill transport reverses unexpectedly.
• Bill jams in the bill path.
• Accepted bills do not stack correctly.
• Machine does not provide expected credit.
• Validator displays a diagnostic condition.
• Bill box or stacker operation is abnormal.

These symptoms can have several possible causes. A problem with the vending machine controller, MDB harness, power supply, connectors, bill path, sensors, or validator itself may produce similar symptoms.

Check the Simple Things First

Before sending a bill validator for service, it is useful to check basic machine conditions.

Coinco's BillPro troubleshooting guidance notes that some failures can be caused by dirt or connection problems. The manual recommends checking the bill path, machine disable condition, connectors, connector pins, and wiring before replacing parts.

• Check the bill path for dirt or debris.
• Check the validator harness.
• Check for loose connections.
• Inspect connector pins for damage.
• Confirm that the vending machine is not disabling the validator.
• Confirm that the machine has appropriate power.
• Check for an existing credit condition.
• Review any available diagnostic indicators.

If the basic checks do not resolve the problem, a repair service may be appropriate.

BillPro Diagnostic Indicators

The BillPro provides diagnostic information through its status indicators. The service manual describes flash codes that can help identify certain conditions.

Diagnostic information is useful because it can help technicians determine whether the problem may be related to the bill box, bill path, or a condition requiring service.

When troubleshooting, always consider the entire payment system rather than assuming that every fault means the validator itself has failed.

Cleaning and Preventive Maintenance

Preventive maintenance can help keep a bill validator operating properly.

Coinco's BillPro service documentation recommends cleaning at regular intervals based on bill volume, time, and operating conditions. The manual identifies cleaning every 20,000 bills or every two years as a general maintenance interval, with more frequent service when conditions require it.

Locations with heavy traffic, dusty environments, moisture, or unusual operating conditions may require additional attention.

Basic Maintenance Principles

• Remove power before performing maintenance.
• Keep the bill path free of debris.
• Inspect belts and rollers.
• Check the anti-pullback components.
• Inspect connectors and wiring.
• Keep sensor areas clean.
• Use appropriate cleaning materials.
• Allow components to dry fully before restoring power.

Do not spray liquids directly into electronic components. Follow the manufacturer's service instructions when cleaning.

Wet Bills and Bill Transport

Vending machines can encounter damp or wet currency. This can be especially common in beverage vending environments or locations where customers handle the machine with wet hands.

The BillPro platform incorporates a scalloped bill path and center drive belt designed to support bill transport, including handling of bills that may have some moisture.

This does not mean that a validator should be exposed to water. Electronic payment equipment should always be protected from liquid intrusion.

Vending Applications

The BillPro BP4 can be used with compatible MDB vending equipment where the machine and validator configuration support the required payment setup.

BillPro BP4 configurations are associated with cold drink vending equipment, while other BillPro configurations were also designed for snack, food, and coffee machines.

Compatibility should always be checked before sending a unit for service.

Cold Drink Vending Machines

Bill validators are commonly used on refrigerated beverage machines. Customers may purchase drinks using cash, coins, cards, or other supported payment methods.

When cash is supported, the bill validator must communicate correctly with the vending machine's payment system.

The BP4's MDB interface makes it suitable for compatible MDB vending configurations.

Higher-Priced Vending

The ability to accept $10 and $20 bills can be useful for vending machines with higher product prices or machines that allow customers to purchase multiple products during a transaction.

Whether these denominations should be enabled depends on the vending operator's configuration and business requirements.

Operators should also consider the amount of change available in the machine when accepting higher-denomination bills.

For Vending Route Operators

Route operators need reliable equipment across many locations.

A single bill validator problem may result in a service call. When multiple machines have payment problems, the time involved can increase quickly.

Having a clear repair process can make equipment maintenance easier to manage.

This flat-rate repair service gives operators a defined service option for a compatible Coinco BillPro BP4 unit.

For Vending Machine Technicians

Technicians can use the BillPro's modular design and diagnostic features when troubleshooting vending equipment.

Before removing a validator for service, verify the machine's power and communication connections. If the validator itself requires service, the flat-rate repair process provides a way to send the unit to Vending World.

Labeling the package and documenting the model can also help keep service work organized.

For Used Vending Machine Refurbishers

Used vending machines often require service before being placed with a new customer.

Payment equipment is one area that should receive attention during refurbishment. A machine may look clean and operate mechanically while still having a payment component that needs service.

Testing the validator before putting the machine into a new location can reduce the chance of discovering a payment problem after delivery.

Flat Rate Repair Versus Buying a Replacement

There are different ways to address a malfunctioning bill validator.

An operator may purchase another validator, install a spare unit, repair the existing unit, or use a repair/exchange service.

This listing is specifically for the repair/exchange approach.

Option	Description
Buy a new unit	Purchase a separate replacement validator.
Use a spare	Install an existing compatible validator from inventory.
Repair existing unit	Send the validator for service.
Flat-rate exchange	Send the core unit and use the listed service process.

The correct option depends on the condition of the equipment, compatibility, availability of replacement units, machine requirements, and the operator's maintenance strategy.

Why the Core Unit Must Be Sent First

The word core is important in this listing.

The unit you send is part of the repair or exchange process. This is different from ordering an unrelated replacement validator from inventory.

Vending World states that the replacement is not shipped until the customer's core unit has been received.

For that reason, customers should not expect an immediate shipment after placing an online order if the core unit has not yet arrived.

Shipping Your Validator Safely

Proper packaging is important.

Bill validators contain mechanical and electronic components. A package that allows the validator to move freely inside the box may expose the unit to unnecessary impact during transportation.

Recommended Packaging Steps

1. Remove the validator from the machine using the correct service procedure.
2. Inspect the unit before packaging it.
3. Remove loose debris from the exterior.
4. Protect the validator with suitable packaging material.
5. Use a sturdy shipping box.
6. Prevent excessive movement inside the box.
7. Include the necessary identifying information requested by the service provider.
8. Ship using a trackable service.
9. Keep the tracking information.
10. Confirm delivery before completing the online repair order.

Use Tracking

Tracking is especially important for repair shipments.

When a customer sends equipment to a repair center, the equipment is valuable even when it is not currently working. Tracking provides confirmation that the package reached its destination.

Keep your tracking number until the service process is complete.

What Should Be Included With the Unit?

Send the equipment required for the repair process. Avoid placing unrelated vending parts, cash, personal items, or unnecessary accessories inside the shipping box.

If you have a question about whether a specific accessory should be included, contact the service provider before shipping.

Identify Your Model Before Ordering

Coinco produced multiple BillPro configurations. The BP4 is not the same configuration as the BP2.

The BP4 supports four bill denominations, while the BP2 is associated with $1 and $5 acceptance.

Do not assume that two validators are interchangeable simply because they share a similar housing or brand.

Check the model information on your unit before using this repair listing.

BP4 Versus BP2

The BP2 and BP4 are both members of the Coinco BillPro family. Their bill acceptance configurations differ.

Feature	BillPro BP2	BillPro BP4
BillPro family	Yes	Yes
MDB	Yes	Yes
$1	Yes	Yes
$5	Yes	Yes
$10	No	Available by configuration
$20	No	Available by configuration

If you have a BP2 rather than a BP4, use the appropriate BP2 service listing.

Electrical Requirements

The Coinco BillPro documentation lists a power requirement range of 22 to 45 VDC. The documentation also lists approximately 0.2 amp average standby current and 2.5 amp average operating current.

These figures are useful for technicians who are diagnosing vending machine power and communication problems.

If the validator is not receiving appropriate power from the machine, repairing the validator alone may not resolve the problem.

Temperature and Operating Environment

The documented BillPro operating temperature range is 0°F to 150°F, or approximately -18°C to 65°C. The documented storage range is -22°F to 165°F, or approximately -30°C to 74°C.

The documentation lists relative humidity of 5% to 95% non-condensing.

These specifications are useful when considering the environment where a vending machine is installed.

Operators should still protect vending payment equipment from direct water exposure, flooding, condensation, and other conditions that can damage electronic components.

Understanding the BillPro Sensors

The BillPro uses multiple sensors during bill processing.

Alignment sensors help determine whether a bill is entering correctly and whether it has the expected width. A center optical sensor helps detect bill position. Additional optical and magnetic sensors provide information used during validation.

The sensors work with the BillPro microprocessor.

This combination allows the validator to evaluate the bill while it is moving through the transport system.

Why Clean Sensors Matter

Bill validation depends on accurate sensor information.

Dust or contamination around sensor areas can interfere with normal operation. That is why routine cleaning is part of BillPro maintenance.

Cleaning should be performed according to the manufacturer's recommended procedure.

Do not use aggressive chemicals or excessive moisture on electronic components.

Bill Rejection

A rejected bill is not automatically evidence of a failed validator.

The BillPro can reject a bill because it is not valid, because the denomination is not enabled, or because another condition prevents normal acceptance.

For example, if a machine is configured for $1 and $5 but a customer inserts a $10 bill, the validator may return the bill.

Configuration should always be considered during troubleshooting.

Bill Acceptance and Credit

When an acceptable bill is processed correctly, the validator transports the bill toward the stack position. Once the appropriate sensors indicate that the bill is in position, the stacker moves the bill into the bill box.

Credit is then established through communication with the vending system.

This sequence is important when diagnosing problems. If a bill enters but does not stack, the problem may be different from a bill that never begins transport.

Understanding Different Failure Points

A bill validator has several stages of operation.

1. Bill insertion
2. Bill detection
3. Bill alignment
4. Bill transport
5. Bill sensing
6. Bill validation
7. Anti-pullback control
8. Bill stacking
9. Credit communication

A problem at any stage can produce a different symptom.

This is why a complete repair and testing process can be more useful than replacing random components.

Service for Older Vending Equipment

Many vending operators continue to maintain older machines because the machines remain useful in their locations.

When an older machine has a payment component problem, finding compatible service can be important.

The BillPro BP4 is an established vending bill validator platform. A repair service provides an option for operators who are maintaining compatible equipment.

Reduce Unnecessary Equipment Replacement

When a vending machine has a payment problem, the entire machine may not need replacement.

The machine cabinet, refrigeration system, product delivery system, controller, coin mechanism, and other components may still be usable.

If the problem is isolated to the bill validator, servicing that component may be a practical maintenance step.

Every situation is different, so operators should evaluate repair costs, equipment condition, compatibility, and expected service life.

Flat Rate Service Can Simplify Planning

Repair work can be easier to budget when the service is offered at a stated flat rate.

Vending World lists this BillPro BP4 repair service at a flat rate. Customers should still read the complete service terms before ordering and understand that the listing requires a core unit to be sent in.

The goal of a flat-rate service is to make the basic repair transaction easier to understand before the equipment is submitted.

What This Listing Is Not

To avoid confusion, this listing is not:

• A standard outright purchase of a new BillPro BP4.
• A listing for an unrelated new bill validator.
• A promise that a replacement will ship before the core is received.
• A generic repair service for every Coinco validator model.
• A repair listing for every MDB bill validator.
• A coin mechanism repair listing.
• A vending machine repair listing.

This listing is specifically associated with the Coinco BillPro BP4 flat-rate repair/exchange process.

What This Listing Is

• Coinco BillPro service
• BP4-compatible repair listing
• Flat-rate repair process
• Core-unit exchange/service arrangement
• MDB bill validator service
• Service for a submitted customer unit

Important Compatibility Reminder

MDB is a communication standard, but not every MDB payment device is identical.

Before sending equipment, verify the model and application. Confirm that the unit you have is the BillPro BP4 associated with this service.

If you are uncertain, compare the model information on your validator with the product information or contact Vending World before shipping.

BillPro BP4 Features

The BillPro platform includes several features intended to support vending operation and serviceability.

• MDB communication
• Programmable bill acceptance
• Illuminated bill inlet
• Modular construction
• Accessible bill path
• Anti-jam software
• Anti-pullback components
• Bill stacking system
• Optical sensors
• Magnetic sensing
• Self-diagnostic indicators
• High-impact plastic construction

Compact Vending Payment Design

Vending machines have limited space inside the cabinet. Payment equipment must fit into the machine while still allowing technicians to service it.

The BillPro was designed as a compact vending bill acceptor with a modular structure.

Its service-oriented construction gives technicians access to key areas of the validator for cleaning, troubleshooting, and maintenance.

For Operators With Multiple Machines

Operators with multiple vending machines may benefit from maintaining a consistent service process.

Keeping records of validator models, serial numbers, machine locations, and service dates can make future troubleshooting easier.

It can also help operators identify recurring problems.

Suggested Service Record

• Machine location
• Machine model
• Validator model
• Validator serial number
• Date removed
• Reported symptom
• Shipping tracking number
• Date received by service provider
• Service date
• Date returned
• Installation date
• Post-service test result

Test the Machine After Service

After the serviced validator is installed, test the complete vending machine.

Confirm that the machine powers the validator correctly. Confirm that the MDB connection is secure. Test the supported bill denominations. Verify that accepted bills stack correctly and that the machine establishes the expected credit.

Also test the coin mechanism and other payment equipment if they are part of the machine.

Post-Service Test Checklist

• Validator powers on.
• Bill inlet operates normally.
• MDB connection is secure.
• $1 bill acceptance is tested when enabled.
• $5 bill acceptance is tested when enabled.
• $10 bill acceptance is tested when enabled.
• $20 bill acceptance is tested when enabled.
• Accepted bills stack properly.
• Credit is registered correctly.
• Rejected bills return properly.
• No unusual transport noise is present.
• Bill box is installed correctly.

Common Questions About the BP4 Repair

Is this a new BillPro BP4 for sale?

No. This page is for a flat-rate repair/exchange service. It is not an outright purchase listing for a separate new validator.

Do I send my validator first?

Yes. Vending World's service instructions require the customer to send the unit first. The core must be received before the replacement is shipped.

Can I order the service before sending my unit?

The service instructions specifically direct customers to send the unit and confirm receipt before checking out through the service listing. Follow the current ordering instructions on the Vending World page.

What model does this listing cover?

This listing is for the Coinco BillPro BP4 bill validator service.

Does the BP4 accept $20 bills?

The BillPro BP4 is documented as a four-denomination configuration supporting $1, $5, $10, and $20 bills, subject to configuration.

Does the BillPro use MDB?

Yes. The BillPro is designed for MDB vending systems.

Can I use this repair for another Coinco validator?

Do not assume that another Coinco model is covered. Coinco produced several bill validator families and configurations. Use the correct repair listing for your model.

What if my validator has a dirty bill path?

Clean the bill path and inspect the machine before sending the unit for repair. Dirt and loose connections can cause symptoms that resemble component failure.

What if the validator has no power?

Check the vending machine's power, MDB harness, connectors, and machine controller before assuming that the validator itself has failed.

Should I track my shipment?

Yes. Tracking is recommended so you can confirm when your core unit reaches Vending World.

Where do I send the validator?

Vending World lists the following service address:

Vending World
9055 Rancho Park Ct.
Rancho Cucamonga, CA 91730

SEO-Friendly Product Summary

The Coinco BillPro BP4 flat-rate repair service is designed for vending operators who need service for a compatible Coinco BillPro BP4 bill validator. The BP4 is an MDB bill acceptor associated with $1, $5, $10, and $20 bill acceptance configurations. It was designed for compatible MDB vending machines and includes an illuminated inlet, bill transport system, optical and magnetic sensing, anti-pullback components, bill stacking, and diagnostic features.

This Vending World listing is a repair and exchange service, not an outright purchase. Customers must send their existing BillPro BP4 core unit to Vending World before a replacement/refurbished unit is shipped through the service process. Customers should track their shipment and wait for confirmation that the unit has been received before completing the service order.

Coinco BillPro BP4 Repair for Vending Machines

A functioning bill validator can be an important part of a cash-enabled vending machine. When a BillPro BP4 begins rejecting bills, failing to transport currency, showing diagnostic problems, or failing to communicate with the machine, service may be required.

The flat-rate repair process gives vending operators an established path for submitting their unit for service.

Rather than treating the product page like a standard replacement purchase, think of this listing as the service step for your existing BillPro BP4.

Designed for Vending Service and Maintenance

The BillPro platform was designed with serviceability in mind. Its modular construction provides access to the bill path and key components. The unit also provides diagnostic indicators that can assist with troubleshooting.

For vending technicians, these features can make inspection and maintenance easier.

For operators, the most important consideration is simple: identify the correct validator, follow the service instructions, send the core, track the shipment, and complete the repair order after receipt.

Why Accurate Model Identification Matters

Vending payment equipment can look similar across different models. Small differences in interface, bill acceptance, voltage, programming, mounting, and machine application can make a major difference.

That is why the model number should always be checked before ordering repair service.

The Coinco BillPro BP4 is specifically identified as a four-denomination BillPro model. If your validator is marked BP2, BA30, BA32, MAGPRO, MAG50B, or another model, use the appropriate service listing instead.

Professional Vending Repair Workflow

A good repair workflow begins with diagnosis.

First, determine whether the vending machine is providing power and communication to the validator. Then inspect the bill path and connections. If the basic checks do not solve the issue, remove the validator and prepare it for service.

Document the reported problem before shipping. For example, write down whether the validator rejects every bill, accepts only certain denominations, fails to power on, jams, or fails to establish credit.

Clear documentation can help provide useful information about the unit.

Keep Your Vending Route Moving

Vending operators depend on reliable payment equipment. Customers expect to be able to pay for products without unnecessary problems.

A bill validator that works properly helps support normal cash transactions.

When a compatible BillPro BP4 requires service, the flat-rate repair process provides an option for operators who want to maintain their existing equipment.

Maintenance Tips for Long-Term Operation

• Keep the bill path clean.
• Inspect the validator during routine machine service.
• Do not allow water into the validator.
• Check connectors for damage.
• Verify the MDB harness is secure.
• Keep the bill box properly installed.
• Monitor unusual rejection patterns.
• Record recurring diagnostic codes.
• Test all enabled denominations after service.
• Use proper packaging when shipping the validator.
• Always track repair shipments.

Protect Your Payment Equipment

Vending equipment is often installed in public or semi-public locations. Payment components can be exposed to heavy use, dust, temperature changes, and customer handling.

Routine inspection helps identify problems before they become larger service issues.

If the validator is removed for shipping, protect it from impact and moisture. Store it in suitable packaging until it is ready to ship.

Flat Rate Repair for Vending Operators

The purpose of flat-rate repair is to provide a straightforward service option.

Instead of ordering a product that you do not need, you send your existing equipment through the repair process.

This can be especially useful when the rest of the vending machine is still in serviceable condition.

Always read the complete service instructions before ordering because the process depends on receipt of your core unit.

Service for Cash-Enabled Vending Machines

Cash payment remains an important part of many vending operations. Bill validators provide a convenient way for customers to pay with paper currency.

The Coinco BillPro BP4 was designed for this role in compatible MDB vending equipment.

Its four-denomination configuration gives operators the ability to support $1, $5, $10, and $20 bills when properly configured.

Technical Overview

The BillPro BP4 combines mechanical and electronic systems.

The transport motor moves currency through the bill path. Alignment sensors monitor bill position. Optical and magnetic sensors provide information for validation. The microprocessor processes this information and controls the acceptance sequence.

After a bill is accepted, the stacker mechanism moves it into the bill box. The validator then communicates the transaction to the vending machine through MDB.

This coordinated operation is why a problem in one area can affect the customer's entire payment experience.

Repair Versus Troubleshooting

Troubleshooting and repair are related but different.

Troubleshooting attempts to identify the cause of a problem. Repair addresses the equipment after a fault has been identified or the unit has been submitted for service.

Coinco's service documentation recommends basic troubleshooting before replacing components. Dirt, wiring problems, connectors, and machine disable conditions can sometimes create symptoms that look like validator failure.

Use the troubleshooting process to determine whether the validator should be sent in.

Service Checklist Before Shipping

1. Confirm the unit is a Coinco BillPro BP4.
2. Record the model and serial information.
3. Write down the reported symptom.
4. Check the vending machine power.
5. Check the MDB harness.
6. Inspect connectors.
7. Inspect the bill path.
8. Remove the validator safely.
9. Package it securely.
10. Ship it with tracking.
11. Keep the tracking number.
12. Wait for confirmation of receipt.
13. Complete the flat-rate service order.

After the Validator Returns

Install the serviced unit according to the vending machine manufacturer's instructions.

Reconnect the MDB harness securely. Restore power and observe the validator's indicators.

Run a complete payment test.

Use the enabled denominations and confirm that accepted bills stack correctly. Verify that the vending machine provides the correct credit and allows a normal vend.

If another payment device is connected to the machine, test that device as well.

Documentation for Your Records

Maintaining service records can help vending businesses manage equipment over time.

Record the date of service, machine location, validator model, reported issue, and installation date.

If the same validator experiences repeated problems, those records can help you determine whether the issue is isolated to the validator or related to the vending machine environment.

Important Service Disclaimer

This product description explains the service listing and the general operation of the Coinco BillPro BP4. It does not replace the manufacturer's technical documentation or the service instructions provided by Vending World.

Always confirm compatibility before shipping a unit.

Electrical work and vending machine service should be performed by qualified personnel. Disconnect power before removing or servicing the validator.

Why Operators Should Read the Listing Carefully

The most important part of this product page is the service process.

The words “NOT AN OUTRIGHT PURCHASE” are intentional.

You are not simply ordering a replacement BillPro BP4 from normal inventory.

You are using a repair/exchange service for your existing unit.

Send your core first. Track the shipment. Confirm receipt. Then complete the service order according to Vending World's instructions.

Quick Buyer Checklist

Conclusion

The Coinco BillPro BP4 Flat Rate Repair service is an option for vending operators who have a compatible BillPro BP4 bill validator that requires service.

The BillPro BP4 is an MDB bill acceptor designed for compatible vending equipment. The BP4 supports configurable acceptance of $1, $5, $10, and $20 bills. Its system combines bill transport, optical sensing, magnetic sensing, anti-pullback components, stacking hardware, electronic controls, and MDB communication.

Like any vending payment component, the validator can experience problems caused by contamination, mechanical wear, electrical issues, communication problems, or other equipment conditions. Basic troubleshooting should be performed before assuming the validator itself has failed.

When the unit does require service, this Vending World listing provides a flat-rate repair/exchange process.

Remember: this is not an outright purchase of a replacement validator. You must send your existing Coinco BillPro BP4 core to Vending World first. Track your shipment and confirm receipt. Once the core has been received, follow the checkout and service instructions associated with this listing.

For vending operators maintaining cash-enabled machines, a clear repair process can make equipment maintenance easier to manage. With proper model identification, careful shipping, routine cleaning, and post-service testing, the BillPro BP4 can continue to serve as part of a compatible MDB vending payment system.

Frequently Searched Terms

Coinco BillPro BP4 repair, Coinco BillPro BP4 flat rate repair, BillPro BP4 bill validator repair, Coinco BP4 validator repair, Coinco bill validator service, Coinco BillPro repair, BP4 MDB bill validator repair, vending machine bill validator repair, MDB bill acceptor repair, Coinco validator exchange, vending bill validator service, refurbished Coinco BillPro BP4, Coinco BillPro BP4 service, BillPro four bill validator repair, $1 $5 $10 $20 bill validator repair, Coinco vending repair, vending machine payment equipment repair, flat rate vending machine repair, Coinco MDB validator service, BillPro BP4 replacement exchange.

Additional Product Keywords

Coinco BP4, Coinco BillPro 4, BillPro-4, BillPro BP4 MDB, BP4 bill acceptor, BP4 bill validator, Coinco vending bill acceptor, Coinco MDB bill validator, Coinco cash validator, vending machine cash acceptor, vending bill acceptor repair, vending machine payment repair, MDB payment system, vending equipment service, vending machine validator exchange, vending route equipment repair, commercial vending machine repair, refurbished vending validator, BillPro service center, vending machine parts and repair, Coinco repair service, bill validator maintenance, vending bill acceptor maintenance.
