Mars TRC6510MDB Flat Rate Repair Service – MDB Coin Mechanism Repair
IMPORTANT: THIS IS A FLAT RATE REPAIR / EXCHANGE SERVICE. THIS IS NOT AN OUTRIGHT PURCHASE OF A MARS TRC6510MDB COIN MECHANISM.
If you have a defective Mars TRC6510MDB coin mechanism, this flat rate repair service gives you a simple way to get a working unit back into your vending machine.
You must already own a Mars TRC6510MDB that you can send to Vending World as your core.
We do not ship a replacement unit until we receive your core unit.
Please read this complete description before ordering.
Mars TRC6510MDB Flat Rate Repair at a Glance
- Service Type: Flat rate repair / exchange service
- Manufacturer: Mars
- Model: TRC6510MDB
- Type: Vending machine coin changer / coin mechanism
- Communication: MDB
- Connector: 6-pin MDB
- Payout Design: Three payout tubes
- Condition Returned: Refurbished replacement or repaired unit, depending on availability
- Core Required: Yes
- Outright Purchase: No
- SKU: TRC6510MDB-FRR
This service is designed for vending operators who already have a Mars TRC6510MDB and need a practical repair solution.
Instead of purchasing another coin mechanism outright, you send your existing unit to Vending World. Once the required core has been received and the repair service has been purchased, the flat rate repair process can move forward.
Important – This Is Not an Outright Purchase
Please understand this point before placing your order.
You are not purchasing a Mars TRC6510MDB coin changer outright from this page.
This listing is for a flat rate repair / exchange service.
You must send us your existing Mars TRC6510MDB first.
If you need a coin mechanism without sending in an old unit, you need an outright purchase product instead of this flat rate repair listing.
Use This Listing If:
- You already own a Mars TRC6510MDB.
- Your TRC6510MDB is not operating correctly.
- You can send your existing unit to Vending World.
- You want a flat rate repair or exchange solution.
- You understand that your core must arrive before a replacement is shipped.
Do Not Use This Listing If:
- You do not have a Mars TRC6510MDB core to send us.
- You are trying to buy a coin mechanism outright.
- Your existing unit has severe water damage.
- Your existing unit has been burned.
- Your existing unit has been salted.
- Your existing unit has been vandalized or badly damaged.
- You are unsure whether your coin mechanism is actually a TRC6510MDB.
If you are unsure of the model, check the identification markings on your existing coin mechanism before sending it.
How the Mars TRC6510MDB Flat Rate Repair Process Works
The process is simple, but the steps need to be completed in the correct order.
Step 1 – Confirm Your Coin Mechanism Model
Make sure your existing unit is a Mars TRC6510MDB.
Do not rely only on the appearance of the coin changer. Several vending coin mechanisms can look similar.
Check the model information on your unit.
This repair listing is specifically intended for the model shown on this page.
Step 2 – Remove the Coin Mechanism From the Vending Machine
Follow safe service procedures when removing the coin mechanism.
Turn off vending-machine power before disconnecting or reconnecting vending-machine payment equipment unless the machine manufacturer's service instructions specifically state otherwise.
Do not pull on the wiring to disconnect the plug.
Inspect the connector and wiring while the coin mechanism is removed. A damaged vending-machine harness can sometimes cause symptoms that appear to be a bad coin mechanism.
Step 3 – Package Your TRC6510MDB Carefully
Use a strong shipping box.
Add enough protective packing material to prevent the coin mechanism from moving inside the box.
Coin mechanisms contain electronic and mechanical parts. Poor packaging can cause additional damage during shipping.
Protect the connector, housing, coin tubes, and other exposed areas.
Step 4 – Ship Your Core to Vending World
Send the unit to:
VENDING WORLD
9055 RANCHO PARK CT.
RANCHO CUCAMONGA, CA 91730
We strongly recommend using a shipping method that provides tracking.
Keep the tracking number.
This allows you to verify when your package reaches our facility.
Step 5 – Verify Delivery
Check your carrier's tracking information.
Once tracking shows that your TRC6510MDB core has been delivered to Vending World, you can continue with the repair order process.
Step 6 – Complete Checkout
After your core unit is in our possession, complete checkout for the flat rate repair service.
Do not expect a replacement unit to ship before your required core has been received.
Step 7 – Repair or Exchange Processing
In most cases, the unit returned to you may not be the exact physical coin mechanism you originally shipped.
A refurbished replacement of the same applicable make and model may be supplied.
If a suitable exchange unit is not available, your original unit may need to be repaired.
This can add additional processing time.
Step 8 – Install and Test the Returned Coin Mechanism
After receiving the unit, install it according to the vending-machine manufacturer's procedures.
Then test normal vending operation.
Check coin acceptance.
Check credit registration.
Check coin return.
Check change payout.
Complete several test transactions before placing the machine back into normal service.
Why Choose a Flat Rate Repair?
A failed coin mechanism can take a vending machine out of normal cash operation.
The machine may reject coins.
It may fail to pay change.
It may stop communicating correctly with the vending-machine controller.
For a vending operator, that can mean lost sales and an unnecessary service call.
A flat rate repair program provides a clear alternative to purchasing another unit outright.
Simple Pricing
Traditional repair estimates can become complicated.
You may see one charge for labor and separate charges for parts.
That can make it harder to know what a repair will cost.
A flat rate service is designed to make the repair cost easier to understand.
Reuse Your Existing Core
You already own the coin mechanism.
Instead of treating the failed unit as waste, you can use it as the required core for this repair program.
This can be a practical choice for operators maintaining older commercial vending equipment.
Keep Proven Vending Equipment Working
A coin changer problem does not automatically mean that the entire vending machine needs to be replaced.
If the machine itself is still in good operating condition, servicing the payment system can help extend the useful life of the equipment.
Useful for Vending Route Operators
Route operators often maintain several machines.
Keeping common replacement parts and payment devices available can reduce downtime.
A flat rate repair service can become part of that maintenance strategy.

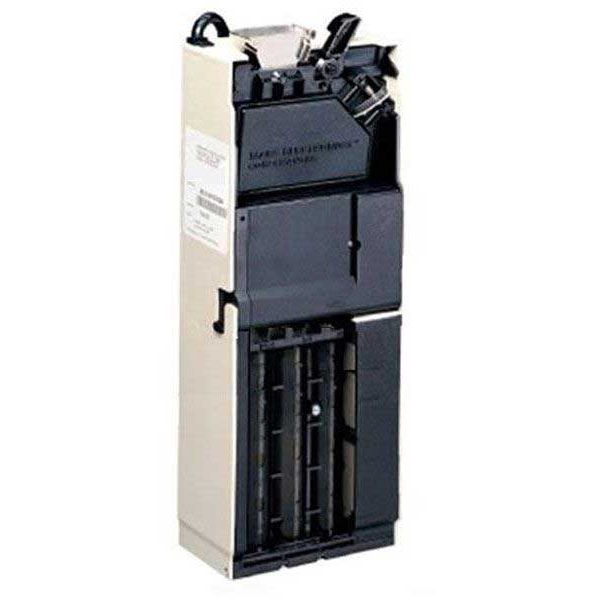

What Is a Mars TRC6510MDB?
The Mars TRC6510MDB is an electronic coin changer designed for use with compatible commercial vending machines.
It performs several important jobs during a cash transaction.
The coin changer evaluates inserted coins.
Accepted coins can be routed into the appropriate area of the mechanism.
Coins stored in the payout tubes can be used to return change when required.
The changer also communicates with the vending-machine controller through the MDB system.
Main Functions of a Coin Changer
- Accept valid coins.
- Reject unacceptable coins.
- Route accepted coins.
- Store selected coins for change.
- Send coin information to the vending-machine controller.
- Dispense change when commanded.
- Support normal cash vending transactions.
Because the coin mechanism is involved in several parts of the transaction, a failure can create many different symptoms.
What Does MDB Mean?
MDB stands for Multi-Drop Bus.
MDB is widely used in commercial vending equipment to allow payment devices and the vending-machine controller to communicate.
In an MDB vending system, devices can include:
- Coin mechanisms
- Bill validators
- Cashless payment systems
- Credit card readers
- Other compatible vending peripherals
The Mars TRC6510MDB is an MDB coin mechanism.
This matters when selecting a replacement or repair service.
A coin mechanism that looks similar is not automatically compatible.
Connector type, communication system, vending-machine controller, machine setup, and model requirements all matter.
6-Pin MDB Connection
The TRC6510MDB uses an MDB connection for compatible vending applications.
Always compare your existing coin mechanism and connector before ordering a service or replacement.
Do not force a connector into a vending-machine harness.
If the plug does not match, stop and verify compatibility.
Using the wrong payment device can result in poor operation or equipment damage.
Three Payout Tube Design
This TRC6510MDB listing identifies the unit as a three payout tube coin mechanism.
The payout tubes hold coins that can be used when the vending machine needs to return change.
Proper change operation depends on more than simply having coins inside the changer.
The coin mechanism must be functioning correctly.
The vending machine must communicate correctly with the changer.
The payout system must operate correctly.
The coin tubes must also have enough suitable coins for the transaction.
Common Reasons Operators Seek TRC6510MDB Repair
A coin mechanism can develop problems after years of vending service.
Dirt, wear, electronic problems, mechanical problems, damaged components, and other faults can affect performance.
Some symptoms may appear only occasionally.
Others may stop cash sales completely.
Common Symptoms Can Include:
- Coins are rejected.
- Valid coins are accepted only sometimes.
- The vending machine does not register coin credit correctly.
- The coin changer does not pay change.
- One denomination does not dispense correctly.
- Coins jam inside the mechanism.
- The coin return does not work correctly.
- The changer appears to have no power.
- The changer does not communicate with the vending machine.
- Coins do not route correctly.
- Payout operation is inconsistent.
- The vending machine reports a coin-mechanism or payment-system fault.
These symptoms can point toward a coin mechanism problem, but they do not prove that the changer is the only cause.
The vending machine, wiring, controller, connectors, setup, or other payment equipment can also affect operation.
Problem: Vending Machine Will Not Accept Coins
One of the most common complaints is simple:
The vending machine will not take coins.
This can be frustrating because the machine may otherwise appear normal.
Several issues can cause this symptom.
Possible Areas to Check
- Coin return lever position
- Coin path cleanliness
- Coin mechanism power
- MDB connection
- Harness condition
- Vending-machine controller
- Coin mechanism electronics
- Coin acceptance components
- Machine programming
If basic checks do not correct the problem and the TRC6510MDB has been identified as faulty, flat rate repair may be the practical next step.
Problem: Coins Are Rejected
A customer inserts a coin.
The coin immediately comes back.
This can lead customers to assume the vending machine is out of service.
Coin rejection can have several causes.
Dirt in the coin path may affect coin movement.
A mechanical issue may prevent proper routing.
An electronic acceptance problem may also be present.
Machine settings or communication issues can also affect whether coins are enabled.
If valid coins continue to be rejected after normal maintenance and troubleshooting, the coin mechanism may require professional service.
Problem: Coin Acceptance Is Intermittent
Intermittent problems can be harder to diagnose than a complete failure.
The mechanism may accept a quarter during one test and reject another during the next test.
It may work when the machine is first powered on and fail later.
It may also behave differently depending on the coin or transaction.
Inconsistent operation should not be ignored.
A vending machine that accepts money unreliably can create customer complaints and lost sales.
Problem: Coin Changer Will Not Pay Change
A coin changer must do more than accept money.
It may also need to return change after a transaction.
If the TRC6510MDB accepts coins but does not dispense change correctly, the problem may involve the payout system, coin inventory, communication, or another part of the payment system.
Symptoms May Include:
- No coins dispense.
- Only one denomination dispenses.
- Incorrect change is returned.
- Payout works intermittently.
- The mechanism attempts to pay but coins do not exit.
- A payout tube appears jammed.
Before assuming the changer is defective, make sure the payout tubes contain the appropriate coins and that the vending machine is configured correctly.
Problem: Coin Jams
Coin jams can interrupt normal vending operation.
A jam may occur in the acceptance path, routing area, payout section, or another part of the coin mechanism.
Never force coins through the mechanism with tools that can damage internal parts.
If a simple accessible obstruction cannot be cleared safely, service may be the better choice.
Repeated jams often deserve more attention than simply removing the stuck coin.
A recurring jam can indicate wear, contamination, alignment problems, damaged parts, or another internal issue.
Problem: Coin Mechanism Does Not Communicate With the Vending Machine
MDB equipment depends on communication between the vending-machine controller and payment devices.
If that communication is interrupted, the coin changer may not operate normally.
The vending machine may appear to ignore the coin mechanism.
Coins may be disabled.
The machine may display a service code or payment-system error.
Areas That May Need Inspection
- MDB plug
- MDB harness
- Connector pins
- Vending-machine control board
- Coin changer electronics
- Machine configuration
- Other MDB devices
A defective changer is one possible cause, but the entire MDB path should be considered during troubleshooting.
Problem: Machine Accepts Coins but Does Not Vend
This symptom can be confusing.
The coin mechanism may appear to work because coins are accepted and credit appears.
However, the machine does not complete the sale.
That does not automatically mean the coin changer is defective.
The issue could be elsewhere in the vending machine.
Check machine diagnostics, pricing, selection status, controller operation, wiring, and other related systems.
If troubleshooting identifies the TRC6510MDB as the faulty component, this repair service can then be considered.
Problem: Incorrect Credit
Accurate credit is essential.
A vending machine needs to know how much money the customer has inserted.
If credit is not registered correctly, normal vending becomes difficult or impossible.
Test more than one transaction.
Use known good coins.
Watch the vending-machine display.
If the problem follows the coin mechanism and other machine systems test correctly, the changer may need service.
Problem: Coin Return Does Not Work Correctly
The coin return gives customers a way to retrieve money in supported situations.
If the return lever, escrow function, or coin path is not operating correctly, inspect the mechanical alignment first.
Make sure the vending machine's return linkage is interacting correctly with the changer.
A physical alignment issue can sometimes look like an internal coin changer problem.
If the mechanism itself is defective, professional repair may be required.
Why Proper Diagnosis Matters
Replacing or repairing a coin mechanism without checking the rest of the machine can waste time.
Many parts work together during a vending transaction.
The payment system is only one part of the machine.
A Typical Cash Transaction May Depend On:
- Vending-machine controller
- Coin changer
- Bill validator
- MDB harness
- Machine programming
- Selection pricing
- Vend motors
- Delivery sensors on equipped machines
- Cashless equipment on equipped machines
For that reason, troubleshoot the machine before sending a coin mechanism for repair whenever possible.
Before Removing Your TRC6510MDB
Perform a few basic checks first.
1. Power Cycle the Vending Machine
Follow the vending-machine manufacturer's instructions.
Some temporary communication problems may clear after a proper power cycle.
2. Check the MDB Connector
Look for a loose connection.
Check for damaged pins or obvious wiring damage.
Do not reconnect payment devices while the machine is powered unless the manufacturer specifically allows it.
3. Check for Coin Jams
Inspect accessible coin paths.
Remove obvious loose debris if this can be done safely.
4. Check Coin Tube Levels
If the problem involves making change, verify that suitable payout coins are available.
5. Test More Than One Coin
A damaged, dirty, bent, or unusual coin can be rejected even when the changer is working normally.
Use several known good coins during testing.
6. Run Machine Diagnostics
If your vending machine provides a diagnostic or service mode, use the manufacturer's instructions to check the payment system.
7. Inspect the Harness
Look for damaged wires, loose plugs, corrosion, or other visible problems.
8. Confirm the Model
Make sure you actually have a Mars TRC6510MDB before sending the unit.
When Repair Makes Sense
Commercial vending machines are designed for long service lives.
Many machines remain useful long after individual payment components need attention.
If your vending machine is still in good condition, repairing a defective coin mechanism may make more sense than replacing major equipment.
This is especially useful when:
- The vending machine is otherwise working correctly.
- The location still performs well.
- The machine already uses the TRC6510MDB successfully.
- The problem has been isolated to the coin mechanism.
- You want to keep a proven machine in service.
- You maintain several machines using similar payment equipment.
Repair Versus Outright Replacement
There are two different needs.
They should not be confused.
Flat Rate Repair / Exchange
This is the service offered on this page.
You send your existing TRC6510MDB core first.
The core is required.
You then receive the applicable serviced or replacement unit according to the repair program.
Outright Purchase
An outright purchase is different.
You purchase a coin mechanism without supplying an exchange core under this repair listing.
If you do not have a core, look for an outright-purchase option instead.
Core Unit Required
The core requirement is a key part of this service.
Your existing Mars TRC6510MDB has value as a repairable component.
That core enters the repair and refurbishment cycle.
Because this listing is structured around that exchange process, the core must be received before the replacement is shipped.
No core received means no replacement shipment under this flat rate repair program.
Will I Get My Exact Original Coin Mechanism Back?
Not necessarily.
In most cases, the flat rate program may provide another refurbished unit of the same applicable make and model instead of returning the exact physical unit you shipped.
This exchange approach can help reduce turnaround time when suitable inventory is available.
If an exchange unit is not available, your original mechanism may need to be repaired.
That can increase processing time.
If keeping the exact serial-numbered unit is important to you, contact Vending World before sending it.
Units That Should Not Be Sent for This Service
Not every damaged coin mechanism is a suitable repair core.
Do not send units that have suffered severe destructive damage.
Examples Include:
- Salt damage
- Burn damage
- Water damage
- Vandalism
- Major destructive physical damage
If your coin mechanism falls into one of these categories, an outright refurbished replacement may be the better option.
Water-Damaged Coin Mechanisms
Water and electronics do not mix.
Liquid exposure can damage circuit boards, connectors, sensors, wiring, and metal components.
Corrosion may continue even after a unit appears dry.
For this reason, water-damaged units are not appropriate for this flat rate repair program.
Burned Coin Mechanisms
Do not send a burned TRC6510MDB under this repair listing.
Heat can damage the housing, wiring, connectors, circuit boards, and internal components.
Damage may extend well beyond the area that is visibly burned.
A replacement purchased outright may be required.
Vandalized Coin Mechanisms
Vending equipment can sometimes suffer deliberate damage.
A badly vandalized coin mechanism may have broken structural parts, damaged connectors, missing components, or other problems that make normal refurbishment impractical.
Do not send vandalized units under this repair program.
Salt-Damaged Units
Salt contamination can be highly destructive to electronic and metal components.
It can contribute to corrosion and electrical problems.
Salt-damaged units are excluded from this repair service.
What Does Refurbished Mean?
A refurbished coin mechanism is not represented as a brand-new factory unit.
It is a used commercial component that has been serviced for continued use.
Refurbished vending parts can be a practical option for maintaining commercial vending equipment.
Cosmetic signs of previous use may be present.
For vending operators, function is usually more important than cosmetic appearance because the coin mechanism is installed inside the machine.
Why Vending Operators Use Refurbished Parts
Vending routes often contain machines from different years and manufacturers.
Replacing every machine with new equipment whenever a component fails would be expensive.
Refurbished components allow operators to maintain proven machines without automatically replacing the entire vendor.
Potential Advantages Include:
- Lower cost compared with some new-equipment options
- Support for established vending equipment
- Ability to maintain existing machine configurations
- Reduced need to replace an otherwise useful vending machine
- Practical inventory options for route operators
Commercial Vending Machine Applications
The Mars TRC6510 series has been used in commercial vending applications.
However, compatibility must always be verified for the exact vending machine.
Do not assume compatibility based only on the machine brand.
A manufacturer may have produced different versions of the same machine family with different controllers or payment-system configurations.
Compatibility Can Depend On:
- Vending-machine model
- Controller version
- MDB support
- Harness type
- Connector type
- Machine programming
- Existing payment configuration
The safest replacement strategy is usually to match the model and interface already proven to work in your machine.
Do Not Choose a Coin Mechanism by Appearance Alone
Two coin mechanisms may look almost identical.
That does not mean they are interchangeable.
One may use MDB communication.
Another may use a different electrical interface.
Voltage and connector requirements can also differ.
Always compare model numbers and machine requirements.
Mars TRC6510MDB for Soda Vending Machines
MDB coin mechanisms have been used in many commercial beverage vending applications.
A soda machine depends on its payment system to process cash sales reliably.
If the coin changer stops accepting coins or paying change, customers may walk away even if the refrigeration and vending sections work perfectly.
Repairing the payment system can therefore be an important part of maintaining beverage vending equipment.
Mars TRC6510MDB for Snack Vending Machines
Commercial snack machines also rely on dependable payment equipment.
A customer expects a simple transaction:
- Insert money.
- See the correct credit.
- Make a selection.
- Receive the product.
- Receive any required change.
If the coin mechanism interrupts that process, sales can be lost.
A serviced TRC6510MDB can help restore the coin-handling portion of a compatible vending system.
Mars TRC6510MDB and Bill Validators
Many vending machines use both a coin mechanism and a bill validator.
In an MDB system, the vending-machine controller manages communication with compatible payment peripherals.
A problem that appears to involve the bill validator may sometimes be related to another part of the payment system.
Likewise, a coin acceptance problem does not always mean the coin mechanism itself has failed.
Use machine diagnostics when available.
Mars TRC6510MDB and Credit Card Readers
Many vending machines have been upgraded with cashless payment equipment.
A machine may accept coins, bills, and cards.
Each payment device still needs to communicate correctly with the vending-machine controller.
If you are troubleshooting a machine with several MDB devices, consider the complete payment system.
One loose connector or failed device can complicate diagnosis.
Why Reliable Coin Acceptance Matters
A vending machine is a self-service retail location.
There is usually no cashier standing nearby to solve a payment problem.
If a customer inserts a valid coin and it is repeatedly rejected, the customer may simply leave.
That makes reliable payment equipment important.
A machine can be fully stocked and perfectly refrigerated, but it cannot generate normal cash sales if customers cannot pay.
Why Reliable Change Payout Matters
Customers also expect correct change.
If a vending machine cannot return change, it may limit transactions or create customer complaints.
Operators should keep payout tubes properly stocked and address payout problems promptly.
A dependable coin changer supports a smoother customer experience.
Preventive Maintenance for Coin Mechanisms
Repair is important when a unit fails.
Preventive maintenance is also important.
A clean vending machine creates a better environment for payment equipment.
Helpful Maintenance Habits
- Keep the vending-machine interior clean.
- Keep the coin entry area free of debris.
- Inspect payment-system connectors during service visits.
- Watch for damaged wiring.
- Test coin acceptance periodically.
- Test change payout periodically.
- Keep suitable change in the payout tubes.
- Address repeated coin jams instead of ignoring them.
- Follow manufacturer cleaning instructions.
Cleaning a Coin Mechanism
Dirt can affect coin movement and acceptance.
However, more cleaning solution is not always better.
Use only cleaning methods recommended for the mechanism.
Avoid soaking electronic components.
Avoid aggressive chemicals.
Do not spray lubricant into the coin path unless a manufacturer specifically instructs you to do so.
Improper cleaning can create new problems.
Do Not Spray Lubricant Into the Coin Changer
A sticky mechanism may tempt an operator to reach for a spray lubricant.
That can make matters worse.
Oil can attract dirt.
Residue can interfere with coin movement.
Some chemicals may damage plastic or electronic components.
Use the manufacturer's recommended maintenance procedures instead.
Keep the Vending Machine Dry
Moisture can damage payment equipment.
Check for leaks, condensation problems, or environmental conditions that expose electronics to water.
If a vending machine has experienced water intrusion, inspect the machine before installing repaired electronics.
Putting a serviced coin mechanism into a machine with an unresolved moisture problem can lead to another failure.
Inspect the MDB Harness
The harness is easy to overlook.
Yet the harness carries power and communication between vending components.
Look for:
- Loose connections
- Bent pins
- Damaged insulation
- Pinched wiring
- Corrosion
- Previous improper repairs
If the harness is damaged, replacing the coin mechanism alone may not solve the problem.
Test Before Returning the Machine to Service
Do not install the coin mechanism and immediately walk away.
Run several test transactions.
Suggested Basic Tests
- Power the vending machine normally.
- Check for machine error messages.
- Insert a known good nickel where supported.
- Insert a known good dime where supported.
- Insert a known good quarter.
- Verify displayed credit.
- Test coin return.
- Perform a normal vend.
- Test a transaction that requires change.
- Confirm that payout is correct.
The exact test procedure depends on your vending machine and configuration.
Route Operator Tip – Keep a Known Good Spare
Operators with many vending machines may benefit from keeping commonly used payment equipment available as route spares.
A known good spare can also help with diagnosis.
If a suspect coin mechanism is replaced temporarily with a compatible known good unit and the machine starts working normally, that provides useful troubleshooting information.
Always verify compatibility before swapping equipment.
Route Operator Tip – Label Removed Components
When you remove a defective payment device, label it immediately.
Include information such as:
- Machine number
- Location
- Date removed
- Reported symptom
- Tests already performed
This can save time later.
It is especially useful when several defective units are being sent for repair at once.
Route Operator Tip – Record the Failure
Write down exactly what happened.
"Bad coin mech" is not very descriptive.
A better note would be:
"Accepts quarters but does not pay quarters during change test."
Or:
"No coin acceptance. MDB connector checked. Known good coin changer works in same machine."
Clear failure notes improve troubleshooting and inventory management.
Packaging Your Mars TRC6510MDB for Shipping
Good packaging matters.
A coin mechanism can be damaged if it moves freely inside the shipping box.
Recommended Packaging Steps
- Remove loose coins from the unit.
- Make sure no loose objects are inside the mechanism.
- Protect the connector.
- Wrap the coin mechanism with protective material.
- Use a strong corrugated box.
- Add padding around every side.
- Make sure the mechanism cannot move inside the box.
- Seal the package securely.
- Attach the shipping label clearly.
- Keep your tracking number.
Remove Coins Before Shipping
Do not use the coin tubes as a place to store change during shipment.
Remove loose coins before packing the mechanism.
Loose coins add weight and can move around during transportation.
They can also complicate receiving and handling.
Why Tracking Is Important
Tracking gives you proof of the shipment's progress.
You can see when the package is accepted by the carrier.
You can monitor transit.
Most importantly, you can verify delivery to Vending World.
Since the core must be received before the exchange process can move forward, this information is useful.
Shipping Address for Your Repair Core
Please send your applicable Mars TRC6510MDB repair core to:
VENDING WORLD
9055 RANCHO PARK CT.
RANCHO CUCAMONGA, CA 91730
Package the unit carefully and retain the carrier tracking information.
Do Not Send the Entire Vending Machine
This listing concerns the Mars TRC6510MDB coin mechanism.
Do not ship an entire vending machine simply because the coin mechanism has failed.
Remove the applicable component according to safe service procedures and send the required unit.
Before Installing the Returned Unit
Take a few minutes to inspect the vending machine.
You want to avoid installing a serviced coin mechanism into a machine that still has another unresolved problem.
Check:
- MDB harness condition
- Connector condition
- Coin return linkage
- Coin chute alignment
- Machine controller status
- Visible moisture
- Loose wiring
- Other damaged payment devices
Installation Tips
Follow the vending-machine manufacturer's service manual.
Mount the changer securely.
Make sure the coin path lines up correctly.
Make sure the coin return linkage operates freely.
Connect the correct MDB harness.
Restore power according to the machine manufacturer's procedure.
Then run test transactions.
Coin Tube Setup After Installation
A coin changer needs an appropriate supply of payout coins to make change.
After installation, load the coin tubes according to the vending-machine and coin-changer instructions.
Do not judge payout performance when the required tubes are empty.
After loading change, perform several test vends.
Test Coin Acceptance
Use clean, normal circulation coins.
Test several coins of each denomination supported by your setup.
Watch the machine display.
Make sure credit increases correctly.
Test the coin return where appropriate.
If the machine rejects all coins after installation, inspect the MDB connection and machine configuration before assuming the returned changer is defective.
Test Change Payout
Set up a transaction that requires change.
Confirm that the correct amount is returned.
Repeat the test.
One successful transaction is useful, but several tests provide better confidence.
Test With the Door Closed
Some vending machines behave differently when placed in service mode or when a door switch is activated.
After service testing, make sure the machine is also tested in its normal customer-ready condition.
Compatibility Is the Buyer's Responsibility
Vending machines have been produced in many configurations.
Model families can contain different controllers and payment systems.
For this reason, verify your existing equipment before ordering.
If your machine currently uses a working or failed TRC6510MDB of the same required configuration, matching the existing model is usually the clearest starting point.
If you are converting a machine from another type of coin mechanism, additional compatibility research may be required.
TRC6510MDB Versus Other Coin Mechanisms
Do not assume that every Mars TRC coin changer is the same.
Different models can use different interfaces and electrical requirements.
The model number matters.
The connector matters.
The vending machine matters.
If your existing unit says TRC6010, TRC6010XV, TRC6512, or another model, do not automatically order a TRC6510MDB repair service.
Use the repair listing intended for your actual model.
TRC6510MDB Versus TRC6512
The TRC6510 and TRC6512 are related coin changer models, but they should not be treated as identical simply because their names are similar.
Always order service for the model you actually have.
If your label identifies your changer as a TRC6512, use the applicable TRC6512 repair or replacement listing.
TRC6510MDB Versus TRC6010
The TRC6010 belongs to the same broad family of vending coin changers, but interface differences matter.
Do not substitute one model based only on physical appearance.
Verify the model and electrical interface.
TRC6510MDB Versus Coinco Coin Mechanisms
Coinco also manufactured coin mechanisms used in commercial vending equipment.
Some vending machines support more than one approved MDB coin changer.
That does not mean every model can be swapped without checking configuration.
If you already have a TRC6510MDB and simply need that unit repaired, using the matching repair service avoids unnecessary conversion questions.
TRC6510MDB Versus Conlux Coin Mechanisms
Conlux coin mechanisms are also found in commercial vending equipment.
Again, the fact that two devices use MDB does not mean all physical and configuration details are identical.
Match the correct equipment to the machine.
Why Matching the Existing Model Is Often Easier
If a vending machine has operated successfully with a TRC6510MDB for years, repairing or replacing that same model can be simpler than changing the payment configuration.
You already know the machine was set up for that changer.
You also avoid introducing an unnecessary variable during troubleshooting.
For Vending Machine Owners
You do not need to operate hundreds of vending machines to use this service.
A business that owns a single vending machine can also experience a failed coin mechanism.
If you own the required TRC6510MDB core and the unit qualifies for repair, the same flat rate repair process applies.
For Professional Vending Operators
Professional operators often need to control repair costs across an entire route.
A predictable repair program can simplify budgeting.
It can also help keep older but profitable machines in service.
When several route machines use the same payment hardware, repaired spares can be especially useful.
For Vending Machine Technicians
Technicians frequently diagnose payment-system problems in the field.
Once the defective component has been isolated, a flat rate repair program provides a straightforward way to cycle that part back into service.
Label the defective unit with the symptom before sending it.
Keep detailed service records.
For Schools, Offices, Warehouses, and Other Locations
Commercial vending equipment is used in many environments.
A coin mechanism failure can affect machines located in:
- Office buildings
- Warehouses
- Manufacturing facilities
- Schools
- Apartment communities
- Hotels
- Repair shops
- Break rooms
- Retail businesses
- Public facilities
Wherever the machine is located, dependable payment equipment helps keep it available to customers.
Reducing Vending Machine Downtime
Downtime costs money.
A vending machine cannot generate normal sales when customers cannot complete transactions.
Good maintenance practices can help reduce downtime.
Useful Practices Include:
- Keeping spare payment components when practical
- Testing machines during every service visit
- Cleaning coin paths as recommended
- Repairing wiring damage promptly
- Tracking recurring faults
- Sending failed components for repair instead of allowing them to pile up
Why You Should Not Ignore Intermittent Problems
An intermittent problem is still a problem.
If a coin mechanism rejects valid coins only one time out of ten, customers can still encounter that failure.
Small problems can also become more frequent over time.
Investigate recurring issues before the machine stops accepting cash completely.
Signs It May Be Time to Remove the Coin Changer for Service
- Cleaning does not correct repeated coin rejection.
- Known good coins continue to fail.
- Payout failures repeat after coin levels are verified.
- The mechanism repeatedly jams.
- MDB communication errors follow the changer.
- A compatible known good changer works in the same machine.
- Visible internal damage is present.
- The unit has become unreliable enough to affect sales.
Why Customers Notice Payment Problems Quickly
Customers interact with the payment system before they receive a product.
That means payment problems become visible immediately.
A customer may not know why the machine rejected a coin.
They only know the machine did not work.
Reliable payment components help create a better vending experience.
A Coin Mechanism Is a Critical Vending Component
The coin changer may be small compared with the entire vending machine, but its role is important.
It connects the customer's money to the machine's transaction system.
When it works correctly, customers rarely think about it.
When it fails, the problem becomes obvious.
Flat Rate Repair Can Simplify Maintenance Planning
Repair costs are easier to plan when the service has a defined flat rate.
This can be useful for both small operators and larger vending routes.
Instead of leaving a defective coin mechanism on a shelf, the operator can send it through a repair cycle and return it to usable inventory.
Keep Your Old Core
If you are replacing a failed TRC6510MDB temporarily with a spare, do not throw the old unit away.
The defective unit may still qualify as a repair core.
Store it in a clean, dry area until it can be sent for service.
Label it so it is not accidentally installed before repair.
Do Not Mix Repair Cores
If you are sending several coin mechanisms for different repair programs, identify each unit clearly.
Make sure each mechanism matches the applicable repair listing.
This helps prevent confusion during processing.
SEO Guide: Mars TRC6510MDB Repair
This service may be relevant when searching for terms such as:
- Mars TRC6510MDB repair
- Mars TRC6510 repair
- TRC6510MDB coin changer repair
- TRC6510 coin mechanism repair
- Mars vending coin mech repair
- Mars coin changer service
- MDB coin mechanism repair
- vending machine coin changer repair
- vending machine coin mech service
- TRC6510 flat rate repair
- Mars TRC6510 exchange
- Mars MDB coin changer repair
- 6-pin MDB coin changer repair
- three tube coin changer repair
- vending machine payment system repair
The key point remains the same:
This page is for a repair / exchange service and requires your existing TRC6510MDB core.
Frequently Asked Questions About Mars TRC6510MDB Repair
Is this an outright purchase of a Mars TRC6510MDB?
No.
This listing is for a flat rate repair / exchange service.
You must provide your existing qualifying Mars TRC6510MDB core.
Do I need to send my old coin mechanism first?
Yes.
Your core must be received before a replacement is shipped under this repair program.
Where do I send my TRC6510MDB?
Send the applicable core to:
VENDING WORLD
9055 RANCHO PARK CT.
RANCHO CUCAMONGA, CA 91730
Should I track the package?
Yes.
Tracking is strongly recommended because it allows you to verify when the core arrives.
Will I receive the exact same unit I sent?
Not necessarily.
In many cases, an applicable refurbished exchange unit may be supplied.
If an exchange unit is not available, your original unit may need to be repaired.
What model does this service cover?
This listing is for the Mars TRC6510MDB shown and described on this page.
Is the TRC6510MDB an MDB coin mechanism?
Yes.
The TRC6510 series is designed for MDB vending applications.
Does it use a 6-pin MDB connection?
The unit identified on this listing is a 6-pin MDB coin mechanism.
Always compare your existing equipment before ordering.
How many payout tubes does this model have?
This listing identifies the TRC6510MDB as a three-payout-tube unit.
Can I send a water-damaged unit?
No.
Water-damaged units should not be sent under this flat rate repair program.
Can I send a burned coin mechanism?
No.
Burned units are excluded from this repair program.
Can I send a vandalized unit?
No.
Badly vandalized units should not be sent for this flat rate repair service.
Can I send a salt-damaged coin mechanism?
No.
Salt-damaged units are excluded.
What if I do not have a core?
This repair listing is not the correct option if you do not have the required core.
Look for a refurbished coin mechanism offered for outright purchase.
What if my coin mechanism is a TRC6512?
Use the repair service intended for the TRC6512 rather than assuming this TRC6510MDB service applies.
What if my coin mechanism is a TRC6010?
Use the applicable repair listing for your actual model.
Different TRC models can have different interfaces and requirements.
My machine rejects every coin. Is the TRC6510MDB definitely bad?
No.
A defective coin changer is one possibility, but machine wiring, MDB communication, controller settings, connectors, and other issues can produce similar symptoms.
My machine accepts coins but will not vend. Is that a bad coin changer?
Not necessarily.
If the machine correctly registers credit, the problem could involve another vending-machine system.
Use machine diagnostics before replacing parts whenever possible.
My changer accepts coins but will not make change. Does it need repair?
Possibly.
First check coin tube levels, jams, machine setup, and communication.
If the payout system remains defective, the changer may need service.
Can a dirty coin path cause rejection?
Yes.
Dirt and contamination can affect coin movement and acceptance.
Follow the manufacturer's recommended cleaning procedure.
Should I spray WD-40 or another lubricant into the coin mechanism?
No.
Do not spray general-purpose lubricants into the coin path.
Use only maintenance procedures recommended for the equipment.
Should I send coins with the changer?
Remove loose coins before shipping unless Vending World has specifically instructed you otherwise.
Do I need to send my vending machine?
No.
This listing is for the coin mechanism repair / exchange service.
Can I install the returned coin changer myself?
Many vending operators and technicians replace payment components themselves.
However, you should be comfortable working with vending equipment and follow the machine manufacturer's service instructions.
If you are unsure, use a qualified vending technician.
Should vending-machine power be off when connecting the coin mechanism?
Follow the vending-machine manufacturer's instructions.
As a general service precaution, payment equipment should not be connected or disconnected carelessly while equipment is energized.
What should I test after installation?
Test coin acceptance, displayed credit, coin return, normal vending, and change payout.
Run several transactions before returning the machine to customer use.
Can the TRC6510MDB work with a bill validator?
Compatible MDB vending machines can use multiple payment peripherals.
Exact compatibility depends on the vending-machine controller and configuration.
Can a machine have a coin changer and credit card reader at the same time?
Many modern MDB vending configurations support cash and cashless payment devices.
Exact compatibility depends on the vending machine and its controller.
What does MDB stand for?
MDB stands for Multi-Drop Bus.
It is a vending-industry communication system used between a vending-machine controller and compatible peripheral devices.
Why does the model number matter?
Because vending payment devices can differ in voltage, communication, connectors, configuration, and machine compatibility.
Physical appearance alone is not enough.
Can I use this service for any Mars coin changer?
No.
This listing is specifically for the model identified on the page.
What happens if my core cannot be repaired?
Severely damaged units may not qualify for the flat rate repair program.
Water-damaged, burned, salted, and vandalized units should not be sent.
If your unit is beyond repair, look for an outright refurbished replacement.
Why would I repair an older coin mechanism?
If the vending machine is still reliable and profitable, repairing a failed payment component can be much more practical than replacing the entire vending machine.
Is refurbished the same as new?
No.
A refurbished coin mechanism is a previously used commercial component that has been serviced for continued operation.
Will a refurbished unit have cosmetic marks?
It may.
Normal signs of previous commercial use can be present.
Why is my core required?
The core is part of the flat rate repair / exchange process.
This service is not structured as an outright sale.
Can I order first and send the core later?
Follow the instructions on this page.
The core must be received before the replacement is shipped.
How do I know when Vending World receives my unit?
Use a tracked shipping service and monitor the carrier's delivery status.
What information should I include with the unit?
Include any information requested during the repair process.
It is also useful to keep your own record of the model, failure symptom, shipping date, and tracking number.
What if I manage several vending machines?
Label every removed component so you know which machine and location it came from.
This makes route maintenance easier.
Can I send several repair cores?
If you need several repairs, make sure each unit is correctly identified and matches the applicable repair service.
Follow Vending World's ordering instructions for multiple units.
Does replacing a coin mechanism fix every vending problem?
No.
A vending machine contains many systems.
The controller, harnesses, motors, switches, bill validator, card reader, sensors, and programming can all affect operation.
Why should I test with known good coins?
Damaged or unusual coins can create false troubleshooting results.
Using normal circulation coins gives you a better test.
What if one denomination works and another does not?
That information is useful during troubleshooting.
Test several known good coins and record which denominations fail.
What if payout works from service mode but not during a vend?
This may point to a machine setup, transaction, communication, or other system issue.
Use the vending-machine service manual and diagnostics.
What if the coin changer has no power?
Check the machine, MDB harness, connectors, and controller before assuming the changer itself is defective.
What if a known good TRC6510MDB works in my machine?
If a compatible known good unit works correctly in the same machine while your original does not, that is strong troubleshooting information suggesting a problem with the original changer.
Can I use a spare coin changer for troubleshooting?
Yes, if the spare is known good and fully compatible with the vending machine.
Should I keep repaired units as spares?
For route operators with multiple compatible machines, keeping a known good spare can reduce downtime.
Quick Repair Checklist
- Confirm model: Mars TRC6510MDB.
- Confirm this is a repair/exchange service.
- Confirm you have a required core.
- Make sure the core is not water damaged.
- Make sure the core is not burned.
- Make sure the core is not salted.
- Make sure the core is not vandalized.
- Remove loose coins.
- Package the mechanism securely.
- Ship it with tracking.
- Verify delivery.
- Complete the applicable repair checkout process.
- Wait for the repaired or exchange unit.
- Inspect the vending machine before installation.
- Install the unit correctly.
- Load suitable change.
- Test coin acceptance.
- Test coin return.
- Test vending.
- Test change payout.
Why Buy Vending Parts and Repair Services From Vending World?
Vending World supplies commercial vending machines, replacement parts, payment equipment, and repair services.
For operators maintaining existing vending equipment, access to refurbished parts and repair programs can make route maintenance easier.
The goal is simple:
Keep commercial vending equipment working without replacing an entire machine every time one component develops a problem.
Extend the Useful Life of Your Vending Machine
A vending machine contains many serviceable components.
A failed coin changer is one component problem.
It does not automatically mean the entire vending machine has reached the end of its useful life.
If the cabinet, refrigeration system, controller, motors, shelves, and other major systems are still working correctly, repairing payment equipment may help keep the machine earning revenue.
Keep Cash Customers Buying
Cashless payments continue to grow, but many vending locations still receive coin transactions.
A working coin mechanism gives customers another way to pay.
When a machine is designed to accept coins, keeping that feature operational improves payment flexibility.
A Better Approach Than Guessing at Parts
Randomly replacing components can become expensive.
Good vending repair starts with diagnosis.
Identify the symptom.
Check simple causes.
Use machine diagnostics.
Inspect wiring.
Test with known good components when possible.
Then repair the component that has actually failed.
Important Compatibility Reminder
Always verify the model number on your existing coin mechanism before ordering.
This page is intended for the Mars TRC6510MDB flat rate repair service.
Do not send a different coin mechanism simply because it looks similar.
If your unit has another model number, locate the correct repair listing or contact Vending World for assistance.
Important Core Reminder
This service requires your existing core.
Vending World must receive the core before a replacement unit is shipped.
If you need a coin mechanism immediately and cannot provide a core, search for an outright-purchase refurbished unit instead.
Important Damage Reminder
Do not send units that have been:
- Salted
- Burned
- Water damaged
- Vandalized
These units do not qualify for the normal flat rate repair program described here.
Final Summary – Mars TRC6510MDB Flat Rate Repair
If your Mars TRC6510MDB coin mechanism has stopped working correctly, this flat rate repair service provides a practical option for getting your vending machine's coin payment system back into operation.
The TRC6510MDB is an MDB vending coin changer with a 6-pin connection and three payout tubes as identified for this service.
It plays an important role in coin acceptance, coin routing, credit communication, and change payout.
When the mechanism develops a fault, the vending machine may reject coins, fail to make change, experience coin jams, or show payment-system problems.
Before sending the changer, troubleshoot basic machine issues.
Check the connector.
Check the harness.
Check for jams.
Check the vending-machine controller.
Check coin tube levels.
Use machine diagnostics when available.
If the TRC6510MDB is determined to be faulty, remove it carefully and package it securely.
Remove loose coins.
Protect the mechanism from shipping damage.
Use a tracked shipping method.
Send the qualifying core to:
VENDING WORLD
9055 RANCHO PARK CT.
RANCHO CUCAMONGA, CA 91730
Monitor your tracking information so you know when the package arrives.
Once your required core is in Vending World's possession, complete the applicable checkout process for the flat rate repair.
Remember that the unit returned to you may be a refurbished exchange unit rather than the exact physical mechanism you originally shipped.
If an exchange unit is not available, your original unit may need to be repaired, which can increase processing time.
Do not send a coin mechanism that has been salted, burned, water damaged, or vandalized.
If your unit has suffered severe damage or you do not have a usable core, look for a refurbished coin mechanism available for outright purchase instead.
After receiving your serviced unit, inspect the vending machine before installation.
Check the MDB harness and connector.
Make sure the coin chute and return linkage are aligned correctly.
Install the changer according to the vending-machine manufacturer's procedures.
Load suitable payout coins.
Then test the machine carefully.
Verify coin acceptance.
Verify displayed credit.
Verify coin return.
Perform a test vend.
Verify change payout.
Repeat the tests before putting the machine back into normal customer service.
A dependable payment system is essential to a dependable vending machine.
Repairing a failed TRC6510MDB can help keep a proven commercial vending machine operating while avoiding the need to replace an otherwise useful machine.
Order this service only when you have a qualifying Mars TRC6510MDB core to send to Vending World.
THIS IS A FLAT RATE REPAIR / EXCHANGE SERVICE. IT IS NOT AN OUTRIGHT PURCHASE.
| Refurbished | Yes |
|---|---|
| SKU | TRC6510MDB-FRR |
| Weight | 5.500000 |
| Manufacturer | Mars |
| Short Description |
*Please read: In order to use this page you must have done the following: Sent us the unit listed above that you want a flat rate exchange done to. When sending your unit please track the item so you know when we have received it. Once you know that the old unit is in our possession then you may checkout using the screen above just as if you were purchasing an item. Please send your unit to:
|
Why Buy A Refurbished Machine?
Great Returns - Commercial Grade Machines - Affordability
New vs Refurbished
We used to sell new machines as well as reconditioned ones. We no longer sell new, for one main reason.
According to a recent survey of vending operators, about 93 out of 100 potential vending accounts don't generate enough revenue to justify the cost of new equipment. New machines are great if you have high volume accounts, but most people do not have these accounts.
Typical pricing on new "commercial grade" machines:
- Can drink machines: $6,200–$7,400
- Snack machines: $6,600–$8,500
- Cold food machines: $8,900–$11,700
(Priced with mech and validator, typical options, vendor pricing not including sales tax or shipping in some cases.)
As you can see, that's quite high compared to used or refurbished equipment.
Please remember 'anyone and everyone' can call their machines refurbished but what does that really mean? Please see our machine ratings page for what we actually do to our machines. Many of our competitors don't even 'clean or paint the inside' of the machines.
Start small and grow as you can afford it.Many people start in the vending business without much knowledge, and that can hurt them financially if they're not careful.
All of the machines that we sell are full size, commercial machines. There are many machines that are made that are small, countertop or mechanical coin acceptance. These machines are fine if you are a housewife looking to make a little extra money on the side. We used to sell those type of machines and no longer do. The main reason is that people who were serious about vending would out grow these type of machines in several months.
Small mechanical machines have two main problems:
- They don't make change or accept dollar bills
- They "work you to death" — frequent refills for very little payoff
Most hold under 100 products and gross only $40–$50 per full restock, and profit is less than half of that.
A full-size commercial machine, by contrast, usually holds 350 to 600 products and empties out at $250–$500. Since you spend most of your time just driving to the location, you might as well fill 500 products instead of 50.
