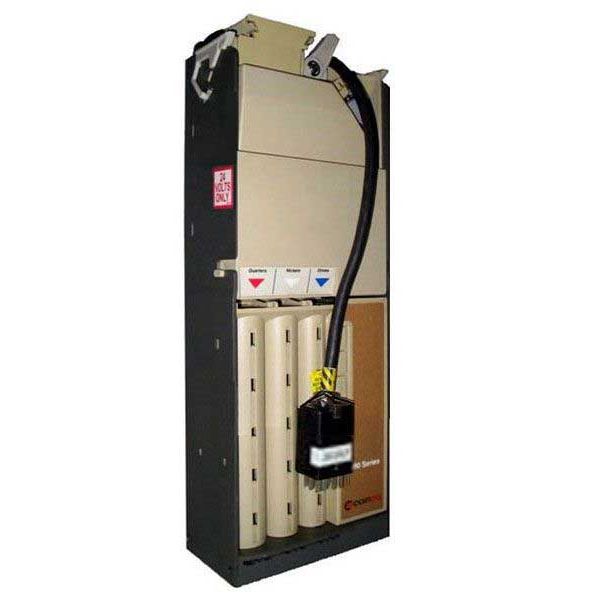

Coinco Series 9302LF 24V Logic Coin Mechanism (Refurbished)

Coinco Series 9302LF 24V Logic Coin Mechanism – Refurbished

The Coinco Series 9302LF 24V Logic Coin Mechanism is a dependable replacement coin changer for compatible commercial vending machines. It is designed for vending equipment that uses a 24-volt logic payment system and a Micro 15-pin connection.

This refurbished Coinco coin mechanism gives vending operators a practical way to repair an existing machine. You can replace a worn or failed coin mech without replacing the complete vending machine.

The Coinco 9302LF has three payout tubes. These tubes handle nickels, dimes, and quarters. This allows the vending machine to accept coins, build customer credit, and return change when needed.

Correct compatibility is very important. Vending coin mechanisms can look similar while using different voltages, plugs, and communication systems. Always compare the model number, voltage, connector, and machine requirements before ordering.

Coinco 9302LF Product Highlights

• Manufacturer: Coinco
• Model: 9302LF
• Product Type: Logic coin mechanism / coin changer
• Voltage: 24 volts
• Connector: Micro 15-pin
• Payout Tubes: Three
• Primary Payout Coins: Nickels, dimes, and quarters
• Condition: Refurbished
• Vending World SKU: CH9302LF
• Application: Compatible commercial vending machines
• Common Use: Compatible snack and multi-price beverage vending machines
• Testing: Cleaned and bench tested before shipment

A Practical Replacement Coin Mechanism for Commercial Vending Machines

A working payment system is essential to a vending machine. Customers need to insert money quickly. The machine needs to recognize that money. It also needs to return the correct change when required.

When the coin mechanism stops working correctly, the rest of the vending machine may still be in good condition. The refrigeration system may work. The motors may work. The control board may work. The cabinet may still have years of useful service left.

Replacing the failed coin mechanism can therefore be a much simpler solution than replacing the complete vending machine.

The refurbished Coinco 9302LF is intended for this type of repair. It can help restore the coin-handling system in a compatible vending machine.

Why the Coin Mechanism Matters

The coin mechanism is one of the most important parts of a coin-operated vending machine.

It does more than collect coins.

A compatible coin mech can perform several important jobs during a vending transaction.

• Recognize acceptable coins.
• Reject unsuitable coins or objects.
• Send payment information to the vending machine.
• Store coins that may be needed for change.
• Pay change back to the customer.
• Help maintain accurate customer credit.
• Work with the vending machine's electronic control system.

If any part of this process becomes unreliable, customers may have trouble making a purchase.

A customer may insert a coin and receive no credit. Another customer may receive the wrong change. Coins may reject too often. The machine may show a change-related problem even when the product delivery system is operating normally.

A properly matched replacement coin mechanism can help correct payment-system problems when the existing coin mech is the cause.

24-Volt Logic Coin Mechanism

The Coinco 9302LF is a 24V logic coin mechanism.

This is one of the most important specifications to check before buying.

Not every vending machine coin changer uses the same voltage. Older commercial vending machines can use several payment-system designs. Some logic coin mechanisms operate at different voltages. Other machines use MDB payment systems.

Do not choose a replacement based only on appearance.

A coin mechanism may fit into the same general mounting area but still be electrically incompatible with the vending machine.

Check the Voltage Before Ordering

Confirm that your vending machine requires a 24-volt logic coin mechanism.

Look at the label on the existing coin mechanism. Check the vending machine documentation when available. Compare the original wiring and connector with the replacement unit.

Voltage should be treated as a required compatibility specification.

Never assume that two coin mechanisms are interchangeable simply because they are made by the same manufacturer or have a similar case.

Micro 15-Pin Connector

The Micro 15-pin connector is another defining feature of the Coinco 9302LF.

This detail is especially important because similar Coinco logic coin mechanisms can use different connector configurations.

The plug should be checked before ordering.

Count and compare the connector arrangement on your existing mechanism. Also verify the model number printed on the unit.

9302LF Versus 9302L

The model suffix matters.

The Coinco 9302LF and Coinco 9302L should not be treated as identical simply because their model numbers are similar.

The 9302LF is associated with the 15-pin configuration. The 9302L is associated with a different connector configuration.

This is why the complete model number should be checked.

Do not stop after seeing "9302" on the label.

Check the entire model designation.

Three Payout Tubes

The Coinco 9302LF uses a three-tube changer design.

The payout tubes provide storage for coins that the mechanism can use to make change.

The standard payout arrangement is built around common vending denominations:

• Nickels
• Dimes
• Quarters

This three-tube design was widely used in commercial vending equipment.

It gives the machine a supply of change for normal cash transactions.

Why Payout Tubes Are Important

Imagine that a product costs less than the amount inserted by the customer.

The machine needs to return the difference.

The coin mechanism uses coins stored in its payout tubes to make that change.

If the tubes are empty, jammed, incorrectly loaded, or not operating correctly, the machine may have trouble completing transactions that require change.

Keeping the tubes properly filled can improve everyday operation.

Nickel, Dime, and Quarter Payout

The three payout tubes in the Coinco 9302LF are designed around nickels, dimes, and quarters.

These denominations allow the changer to create many common change combinations.

For example, the machine may need to return a quarter after a transaction. It may need to return a dime and nickel. It may need several coins for a larger amount.

The changer manages these payouts based on the vending machine's transaction requirements and the coins available in the tubes.

Designed for Compatible Electronic Vending Machines

The Coinco 9302LF is intended for compatible electronic vending equipment that uses its specific 24V logic interface.

It may be found in commercial snack machines and multi-price beverage vending machines that were designed for this payment architecture.

Compatibility depends on the actual vending machine configuration.

Machines can be modified during their service life. Control boards may be changed. Payment systems may be upgraded. Harnesses may be replaced. A machine may no longer have the same payment equipment that it had when it left the factory.

For that reason, the coin mechanism currently installed in your machine is often one of the best starting points for identifying a replacement.

Refurbished Coinco 9302LF

This product is sold as a refurbished Coinco 9302LF coin mechanism.

A refurbished vending part is different from a brand-new component.

It is also different from an untested used part removed from a machine and immediately offered for resale.

This unit is cleaned and bench tested as part of its preparation for resale.

For vending operators, that can make a refurbished replacement an attractive option when maintaining commercial equipment.

Why Operators Use Refurbished Vending Parts

Commercial vending machines are often built for long service lives.

A machine may remain useful even after individual components begin to wear.

Replacing a payment component can extend the useful service of equipment that is otherwise operating well.

Refurbished parts can be especially useful for:

• Route operators maintaining older machines.
• Vending repair companies.
• Machine refurbishers.
• Location owners maintaining existing vending equipment.
• Operators keeping spare payment parts.
• Technicians repairing machines with older logic systems.
• Businesses trying to reduce unnecessary equipment replacement.

Cleaned and Bench Tested

A coin mechanism works in a demanding environment.

Coins pass through it every day. Dust can enter the vending cabinet. Dirt can collect around payment components. Moving parts experience normal wear.

Cleaning and testing are therefore important steps when preparing a refurbished coin mechanism.

The Coinco 9302LF offered here is cleaned and bench tested before shipment.

Bench testing helps confirm basic operating condition before the unit is sent to the customer.

Correct installation and machine compatibility are still essential. A working coin mechanism cannot operate correctly if it is connected to an incompatible vending machine.

Reduce Vending Machine Downtime

A vending machine that cannot reliably accept payment cannot reliably make sales.

This makes payment-system failures especially important for route operators.

Even when every product column is full, a machine with a failed coin mechanism may lose cash sales.

Having the correct replacement component available can shorten the repair process.

Instead of removing a productive machine from a location, the operator may be able to replace the failed payment component and return the machine to service.

A Useful Spare for Vending Routes

Operators with several compatible vending machines may choose to keep a replacement coin mechanism available as a route spare.

This can be helpful when machines use the same payment configuration.

A compatible spare may allow a technician to swap the suspected coin mechanism during a service call.

The removed unit can then be evaluated separately.

This approach can reduce repeat trips when the coin mechanism has already been identified as the likely cause of the problem.

Common Signs of Coin Mechanism Trouble

Payment problems can have many causes.

The coin mechanism is only one possible source.

However, the following symptoms may justify inspecting the coin mech:

• Valid coins reject repeatedly.
• Coins enter but credit does not register correctly.
• The machine does not return expected change.
• Coins jam inside the changer.
• Payout tubes do not dispense correctly.
• The changer behaves inconsistently.
• The machine reports a coin-system error.
• The coin mech has visible physical damage.
• The existing mechanism has stopped communicating with the machine.
• Payment problems continue after simple cleaning and inspection.

These symptoms do not automatically prove that the coin mechanism is defective.

Wiring, connectors, machine controls, programming, coin inventory, and other components can also affect payment operation.

Proper diagnosis is recommended before replacing parts.

Compatibility Is the Most Important Step

Before ordering a replacement vending coin mechanism, verify compatibility carefully.

Start with the existing unit.

1. Check the Manufacturer

Look for the Coinco name on the existing mechanism.

This alone is not enough to confirm compatibility, but it is a useful first step.

2. Check the Complete Model Number

Look for 9302LF.

Pay attention to every letter.

A similar model number can represent a different connector or electrical configuration.

3. Verify 24-Volt Operation

The replacement is a 24V logic coin mechanism.

Your machine must be compatible with that electrical configuration.

4. Verify the 15-Pin Connector

Compare the plug on your existing unit with the replacement.

The Coinco 9302LF uses a Micro 15-pin connection.

5. Check the Payout Tube Configuration

The 9302LF has three payout tubes.

Compare this arrangement with your existing mechanism.

6. Check the Machine Payment System

Confirm that the machine uses the correct logic payment system.

Do not assume that a machine using another payment protocol can accept this mechanism without the correct supporting hardware.

Do Not Confuse Logic and MDB Coin Mechanisms

Vending technology has changed over time.

Many newer machines use MDB payment systems. Older machines and certain electronic vending systems use logic coin mechanisms.

These systems are not automatically interchangeable.

The Coinco 9302LF is identified as a 24V logic coin mechanism.

It should not be purchased merely because another Coinco mechanism fits into a similar mounting location.

The electrical and communication requirements need to match.

Why This Difference Matters

The vending machine and coin mechanism must communicate correctly.

A physical connection alone does not prove that the electronics are compatible.

Using the wrong payment component may result in no operation, incorrect operation, or possible equipment problems.

Always match the payment architecture before installation.

9302LF Versus MDB Coin Mechanisms

An MDB coin mechanism uses a different vending communication standard than the 24V logic system associated with the Coinco 9302LF.

If your machine has already been converted to MDB, identify the current MDB hardware before ordering a replacement.

If your machine still uses its compatible 24V logic system and currently uses a Coinco 9302LF, replacing it with the same model can often make identification easier.

Again, verify the complete machine configuration before purchase.

9302LF Versus 9302L

The names are close, but the connector distinction is important.

The Coinco 9302LF uses the 15-pin configuration.

The Coinco 9302L is associated with a 12-pin configuration.

This is a good example of why operators should never order vending parts based on a partial model number.

Always check the letters at the end of the model designation.

9302LF Versus 110-Volt Logic Coin Mechanisms

Some older vending equipment uses 110V logic coin mechanisms.

The Coinco 9302LF is a 24V unit.

Voltage is not a minor detail.

It is a core compatibility requirement.

If you are replacing an older coin changer and are unsure whether the machine uses 24V or 110V equipment, verify the system before connecting a replacement.

Simple Product Specification Table

Feature	Coinco 9302LF Specification
Brand	Coinco
Model	9302LF
Product Type	Logic coin mechanism
Voltage	24V
Connector	Micro 15-pin
Payout Tubes	Three
Primary Payout Denominations	Nickels, dimes, and quarters
Condition	Refurbished
Preparation	Cleaned and bench tested
SKU	CH9302LF
Common Application	Compatible commercial snack and multi-price beverage vending machines

Built for Everyday Vending Transactions

A commercial vending machine may process hundreds or thousands of payment events over its service life.

The coin mechanism needs to handle repeated use.

Customers expect a simple process.

Insert money. Make a selection. Receive the product. Receive change when required.

The payment equipment works behind the scenes to make that process possible.

The Coinco 9302LF was designed for this type of commercial vending environment when installed in compatible equipment.

Coin Acceptance and Customer Credit

When a customer inserts an acceptable coin, the coin mechanism evaluates it and communicates payment information to the vending machine.

The machine then updates the customer's available credit.

When enough credit is available, the customer can make a selection.

This interaction happens quickly, but several electronic and mechanical functions must work correctly.

Reliable coin recognition helps create a smoother customer experience.

Change Payout

Accepting money is only part of the job.

Many vending transactions also require change.

The three payout tubes in the Coinco 9302LF hold coins for this purpose.

The mechanism can use the available coin inventory to return appropriate change according to the machine's transaction logic.

Keeping adequate coins in the payout tubes is important.

If the changer does not have enough suitable coins, the machine may limit its ability to make change.

Why Change Inventory Matters

A perfectly working coin mechanism can still have trouble making change if its tubes are empty.

This is an operating issue rather than necessarily a component failure.

Route operators should check change inventory during normal service visits.

High-volume locations may require more frequent attention.

Good change management can help reduce customer frustration and unnecessary service calls.

Useful for Snack Vending Machines

Many commercial snack vending machines use electronic payment systems that combine a coin mechanism with other machine controls.

The Coinco 9302LF is commonly associated with compatible machines using its 24V logic and 15-pin configuration.

Before installing it in a snack machine, verify the existing payment system.

Do not rely only on the machine brand.

Two machines from the same manufacturer can have different payment configurations depending on age, revision, and previous upgrades.

Useful for Compatible Multi-Price Beverage Machines

Multi-price beverage machines can sell products at different prices.

This makes accurate customer credit and change payout especially important.

A compatible logic coin mechanism works with the machine's control system to support those transactions.

The Coinco 9302LF can be a useful replacement when the beverage machine specifically requires this 24V, 15-pin logic configuration.

A Smart Repair Option for Older Commercial Equipment

Older does not automatically mean obsolete.

Many commercial vending machines continue earning revenue for years when properly maintained.

Cabinets can remain solid. Refrigeration decks can be serviced. Motors can be replaced. Control parts can be repaired or exchanged. Payment components can also be replaced.

Keeping an existing machine operating can make financial sense when the machine still fits the location and performs its primary job well.

A refurbished Coinco 9302LF can be part of that maintenance strategy.

Good for Vending Machine Refurbishment Projects

Vending refurbishers often inspect several systems before placing a machine back into service.

The payment system deserves special attention.

A machine can look excellent from the outside and still frustrate customers if it does not accept money correctly.

When a machine requires the 9302LF configuration, a cleaned and tested replacement coin mechanism can help complete the refurbishment process.

Good for Route Maintenance

Route maintenance is about keeping machines earning.

A small component failure can cause a large loss in sales if it prevents customers from paying.

For operators with compatible equipment, keeping replacement payment components available can simplify repairs.

The correct spare can help turn a long diagnostic delay into a faster component swap after the problem has been properly identified.

Good for Vending Repair Shops

Repair shops often work on machines from different manufacturers and different generations.

That makes accurate component identification essential.

The Coinco 9302LF is easy to describe by its core specifications:

• Coinco brand
• 9302LF model
• 24V logic system
• Micro 15-pin connection
• Three payout tubes
• Refurbished condition

These details give technicians several points to compare with the original equipment.

How to Identify Your Existing Coin Mechanism

Before placing an order, open the vending machine using the proper service procedure.

Locate the coin mechanism.

Look for the identification label.

Record the information before removing anything.

Information to Record

• Manufacturer name
• Full model number
• Voltage
• Connector type
• Number of payout tubes
• Any machine model information
• Any wiring or harness information that may affect compatibility

A clear photo of the original label and connector can also be useful for your own records.

Do Not Match by Appearance Alone

This point is worth repeating.

Many vending coin mechanisms have a similar overall shape.

They may mount in a similar position.

They may have similar payout tubes.

They may even come from the same manufacturer.

That does not make them interchangeable.

Model number, voltage, plug type, communication method, and machine configuration all matter.

Before Installation

Before installing a replacement coin mechanism, inspect the machine.

Look for obvious problems that could affect the new component.

• Damaged connectors
• Loose wiring
• Burned or overheated wiring
• Corrosion
• Heavy dirt buildup
• Foreign objects in the coin path
• Damaged mounting hardware
• Signs of water intrusion
• Other payment-system damage

Correct machine problems before installing replacement electronics.

Installation Safety

Vending machines contain electrical components.

Use proper service procedures whenever working inside the cabinet.

Disconnect power when required by the machine manufacturer's instructions.

Do not force connectors together.

If a plug does not match, stop and verify the part.

A connector that looks almost correct may still be the wrong connector.

Basic Replacement Process

The exact procedure depends on the vending machine.

In general, a technician may follow steps similar to these:

1. Turn off and disconnect the vending machine as required.
2. Open the service area.
3. Locate the existing coin mechanism.
4. Record the model and wiring arrangement.
5. Disconnect the existing mechanism carefully.
6. Remove it from its mounting position.
7. Compare the replacement unit with the original.
8. Verify voltage and connector type again.
9. Install the replacement securely.
10. Reconnect the proper harness.
11. Restore power according to the machine service procedure.
12. Test coin acceptance.
13. Test customer credit.
14. Test several selections.
15. Test change payout.

These are general steps only.

Always follow the service information for the actual vending machine.

Test the Machine After Installation

Do not assume that a replacement is ready for unattended operation immediately after installation.

Run several test transactions.

Try the coin denominations the machine is expected to accept.

Watch the displayed credit.

Make selections at different prices when possible.

Verify change payout.

Check the coin return.

Confirm that coins travel through the mechanism correctly.

Test More Than One Transaction

One successful vend is helpful, but several tests provide more information.

Try different coin combinations.

Try a transaction that requires change.

Try another selection.

Confirm that the machine resets customer credit correctly after each completed transaction.

This can help identify problems before the machine is returned to public use.

Keep the Coin Path Clean

Dirt can affect vending payment equipment.

Coins are handled by many people before they enter a vending machine. They can carry dust, oils, and debris.

Over time, residue may collect inside payment components.

Follow approved maintenance procedures for your equipment.

Avoid spraying random cleaners into the coin mechanism.

Use cleaning methods appropriate for the component.

Never Force Coins Through a Jam

If a coin becomes stuck, do not force more coins into the mechanism.

Doing so can make the jam worse.

Inspect the coin path according to proper service procedures.

Look for bent coins, foreign objects, damaged parts, or accumulated debris.

Check the Coin Return

The coin return is part of the customer's payment experience.

A problem in the return path can sometimes look like a coin mechanism failure.

Make sure the external coin return button and internal linkage move correctly.

Check that rejected coins can travel back to the customer without obstruction.

Inspect Connectors During Service

Electrical connections can become loose or damaged over time.

Whenever servicing the payment system, inspect the connector carefully.

Look for bent contacts, damage, corrosion, loose wires, or signs of overheating.

A poor connection can create intermittent problems that may be mistaken for a failed coin mechanism.

Check Machine Programming

Payment problems are not always mechanical.

Machine settings can affect how the vending system behaves.

If a machine was recently repaired, converted, or reprogrammed, confirm that the relevant settings are correct.

Use the vending machine's service manual when making programming changes.

Coin Mechanism Troubleshooting Checklist

If the vending machine has a coin-related problem, work through the issue in a logical order.

• Confirm that the vending machine has power.
• Check for machine error codes.
• Inspect the coin mechanism connector.
• Verify that the coin mech receives the correct power.
• Check the coin path for jams.
• Check payout tube inventory.
• Inspect the coin return system.
• Verify machine programming.
• Test several known good coins.
• Check whether other payment components are operating.
• Compare the installed coin mechanism with the machine requirements.

Replacing parts without diagnosis can waste time and money.

When Replacement Makes Sense

A replacement coin mechanism may make sense when the existing unit has been properly identified as defective or unreliable.

Replacement can also be useful during a machine refurbishment when the original payment component is missing or damaged.

Operators may also keep a compatible spare for machines that share the same configuration.

Why Refurbished Can Be a Cost-Effective Choice

Replacing an entire vending machine because of one failed component can be expensive.

If the cabinet, controls, motors, refrigeration system, and delivery system are still useful, repairing the payment system may be the better option.

A refurbished coin mechanism allows operators to focus the repair on the component that needs attention.

This can help control equipment costs while extending the life of existing vending assets.

Support Existing Vending Equipment

Commercial vending machines represent a significant investment.

Operators often get the most value from that investment by maintaining machines rather than replacing them at the first component failure.

Parts such as coin mechanisms, bill validators, motors, switches, harnesses, and control components can all play a role in long-term equipment support.

The Coinco 9302LF is one replacement option for compatible 24V logic vending equipment.

Ideal for Established Vending Routes

Established routes often include equipment from several generations.

Some machines may use modern MDB payment systems.

Others may still use older logic equipment.

There is nothing unusual about maintaining several payment architectures on the same route.

The key is identifying each machine correctly and stocking the right replacement parts.

Ideal for Machine Resellers and Refurbishers

A reseller preparing a machine for a new location needs to check the complete payment system.

Coin acceptance should be tested.

Change payout should be tested.

The machine should be checked with realistic transactions before delivery.

If a compatible machine requires a 9302LF, a refurbished replacement can help restore the coin-payment system.

Commercial Vending Applications

The Coinco 9302LF is intended for commercial vending applications that support its electrical and connector requirements.

Potential applications can include compatible:

• Snack vending machines
• Multi-price soda machines
• Cold drink vending machines
• Combination vending equipment
• Other commercial vending machines using the correct 24V logic interface

This list does not mean that every machine in these categories accepts the 9302LF.

Compatibility must still be verified.

Important Buyer Reminder

Vending machines are often modified during their working lives.

A machine model alone may not tell the complete story.

A previous owner may have installed a different control board or payment system.

For this reason, compare the replacement coin mechanism with the equipment currently installed in the machine.

Questions to Ask Before Ordering

• Is my current coin mechanism a Coinco 9302LF?
• Does my machine use 24 volts for this logic coin mechanism?
• Does my existing unit have the correct 15-pin connector?
• Does my machine use a logic payment system rather than MDB?
• Does the replacement have the correct three-tube configuration?
• Have I checked the complete model number?
• Has my machine been modified from its original configuration?

If you can answer these questions confidently, you are in a much better position to select the correct replacement.

What Makes the 9302LF Easy to Identify?

Four details provide a useful identification starting point:

• 9302LF model number
• 24V operation
• 15-pin connector
• Three payout tubes

Use all four details together.

Do not rely on only one.

Why the Full Model Number Matters

Vending parts often use model numbers with letters or suffixes that indicate important differences.

Those letters may represent changes in voltage, interface, plug style, or other features.

Ignoring the suffix can lead to ordering the wrong part.

For this product, the "LF" portion should be treated as part of the model identification.

Simple Compatibility Checklist

Check	Required Detail
Manufacturer	Coinco
Model	9302LF
Voltage	24V
System Type	Logic
Connector	Micro 15-pin
Payout Tubes	Three

Visual Check Before Purchase

Visual Tip: Compare your existing coin mechanism with product photos before ordering.

Look at the connector.

Look at the tube arrangement.

Look at the label.

Look for the complete 9302LF model number.

A visual comparison should support the technical specifications, not replace them.

Visual Tip: Photograph the Existing Unit

Before removing your current mechanism, take clear photos.

Useful photos include:

• The model label
• The connector
• The payout tubes
• The wiring before disconnection
• The mechanism installed in the machine

These photos can provide a useful reference during installation.

Visual Tip: Label Wiring When Necessary

If several connectors are located near the payment system, document their positions before disassembly.

Never guess where a connector belongs.

Good documentation can make reassembly faster and safer.

Maintaining Reliable Coin Acceptance

Regular service can help vending payment systems perform more consistently.

Basic maintenance may include checking for dirt, inspecting the coin path, verifying the return system, and testing several coins.

Do not wait until customers repeatedly report problems before inspecting a machine.

Routine route visits are a good time to check basic payment performance.

Maintaining Reliable Change Payout

Change payout depends on both the mechanism and available coin inventory.

Keep the appropriate tubes supplied according to the machine's needs.

Locations with many cash transactions may use change faster than low-volume locations.

Monitor actual usage and adjust your service schedule when necessary.

Customer Experience Matters

A vending machine is a self-service retail system.

There is usually no cashier standing beside it.

The machine must create trust through reliable operation.

If customers insert money and experience repeated payment problems, they may stop using the machine.

A dependable payment system supports a better customer experience and can help protect sales.

Payment Reliability and Route Revenue

A machine can be fully stocked and still underperform if customers cannot pay reliably.

This is why payment components deserve the same attention as product delivery components.

Coin mechanisms, bill validators, card readers, wiring, and control electronics all contribute to the transaction.

Maintaining these systems can help keep vending equipment productive.

Repair the Component Instead of Replacing the Machine

When a vending machine develops a payment problem, replacing the complete machine should not automatically be the first response.

First determine what failed.

If the problem is isolated to the coin mechanism, replacing that component may restore operation.

This component-level approach can reduce capital costs and keep useful commercial equipment in service.

Useful for Preventive Route Planning

Operators can review the payment systems across their route and identify common components.

If several machines use the same coin mechanism, keeping one compatible spare may simplify future service.

This strategy works best when the operator maintains accurate machine records.

Useful Records to Keep

• Machine manufacturer
• Machine model
• Serial number
• Location
• Coin mechanism model
• Bill validator model
• Card reader information
• Control board information
• Recent repairs
• Parts replaced

Good records can reduce guesswork during service calls.

Coinco 9302LF for Vending Technicians

Technicians need replacement parts that match the equipment they are servicing.

The 9302LF has several clear identifying features that can help with part selection.

When the existing machine requires this specific configuration, a refurbished unit can provide a practical repair option.

Always test the complete payment system after replacement.

Coinco 9302LF for Vending Operators

Operators may not perform every repair themselves, but understanding basic specifications can still prevent ordering errors.

Remember these key points:

• 9302LF
• 24 volts
• Logic coin mechanism
• 15-pin connector
• Three payout tubes

If those details do not match your machine, investigate further before ordering.

Coinco 9302LF for Machine Owners

A business owner with one or two vending machines may simply want to get a machine working again.

Even in that situation, compatibility matters.

Take time to identify the original mechanism.

A few minutes spent checking the model and connector can help prevent purchasing the wrong part.

Refurbished Does Not Mean Universal

The refurbished condition has nothing to do with universal compatibility.

This remains a specific model with specific electrical requirements.

It should only be used where the machine supports the Coinco 9302LF configuration.

Do Not Assume Every Coinco Mechanism Is the Same

Coinco produced many vending payment products.

Different models can use different:

• Voltages
• Connectors
• Communication systems
• Tube arrangements
• Programming
• Coin acceptance configurations

Matching the brand alone is not enough.

Do Not Assume Every 24V Mechanism Is the Same

Voltage is only one compatibility factor.

Two mechanisms can both be rated for 24V and still use different connectors or interfaces.

Verify the complete configuration.

Do Not Assume Every 15-Pin Mechanism Is the Same

The same rule applies to connector count.

A 15-pin plug is an important clue, but it should be considered together with the model number, voltage, and system type.

Do Not Force an Incorrect Connector

If the replacement plug does not connect naturally, stop.

Do not modify, bend, or force the connector simply to make it fit.

Recheck the model and wiring requirements.

After the Repair

Once the machine is operating correctly, monitor it during the next few service visits.

Check coin acceptance.

Check change inventory.

Ask the location contact whether customers have reported payment problems.

Early feedback can help identify an issue before it becomes a larger service problem.

Keep the Original Unit Until Testing Is Complete

When practical, keep the removed mechanism available until the replacement has been installed and tested.

The original unit can provide a reference for the connector, mounting position, and identification label.

Route Service Tip: Test With Known Good Coins

Use normal, undamaged coins when testing.

A bent, dirty, damaged, or unusual coin can create misleading results.

Testing with several known good coins provides a better picture of normal operation.

Route Service Tip: Test Change

Do not test only acceptance.

Make at least one transaction that requires change.

This checks another important part of the payment process.

Route Service Tip: Check the Displayed Credit

Watch the machine's credit display as coins are inserted.

Confirm that the displayed value changes correctly.

This can help identify communication or programming issues.

Route Service Tip: Test the Coin Return

Activate the coin return according to the machine's normal operation.

Make sure returned coins can travel back to the customer.

A blocked return path can create complaints even when the coin mechanism itself is functioning.

Route Service Tip: Fill Change Properly

A replacement mechanism needs adequate change inventory for normal operation.

Follow the appropriate fill procedure for your machine and mechanism.

Do not assume the changer is ready for all transactions if the payout tubes are empty.

Frequently Asked Questions About the Coinco 9302LF

What is the Coinco 9302LF?

The Coinco 9302LF is a 24-volt logic coin mechanism for compatible commercial vending machines. It uses a Micro 15-pin connection and has three payout tubes.

Is this Coinco 9302LF new?

No. This listing is for a refurbished Coinco 9302LF coin mechanism.

Is the mechanism tested?

The refurbished unit is cleaned and bench tested before shipment.

What voltage does the Coinco 9302LF use?

It is a 24V logic coin mechanism.

What connector does the Coinco 9302LF use?

The 9302LF uses a Micro 15-pin connector.

How many payout tubes does it have?

It has three payout tubes.

Which coins are used in the payout tubes?

The three-tube configuration is designed around nickel, dime, and quarter payout.

Can I replace a Coinco 9302L with a 9302LF?

Do not assume they are direct replacements. The connector configuration differs. The 9302LF is associated with a 15-pin connector, while the 9302L uses a different connector arrangement. Verify your machine before ordering.

Is the Coinco 9302LF an MDB coin mechanism?

No. This product is identified as a 24V logic coin mechanism. MDB is a different vending payment communication system.

Will this work in any snack machine?

No. It will only work in compatible equipment that supports the required voltage, connector, and logic payment system.

Will it work in a soda machine?

It may work in compatible multi-price beverage vending equipment designed for this coin mechanism configuration. Verify the machine before ordering.

Can I identify compatibility from the vending machine brand?

Not reliably. Machines from the same manufacturer can use different payment systems. Check the existing coin mechanism and machine specifications.

Why is the 15-pin connector important?

The connector helps identify the electrical interface. Similar coin mechanisms may use different plugs, so connector verification is an important part of compatibility checking.

Can I use a 110V coin mechanism instead?

Do not substitute a different voltage unless the vending machine documentation specifically supports that configuration. The 9302LF is a 24V unit.

Why are my coins rejecting?

Coin rejection can have several causes. Dirt, damaged coins, a blocked coin path, programming, wiring, or a faulty coin mechanism may contribute. Diagnose the machine before replacing components.

Why is the machine not giving change?

Check payout tube inventory first. Also inspect the mechanism for jams, verify machine settings, and confirm that the coin mechanism is communicating correctly with the vending machine.

Does an empty payout tube mean the mechanism is broken?

No. An empty tube is an inventory issue. The mechanism needs suitable coins available before it can make certain change combinations.

Should I test the mechanism after installation?

Yes. Test coin acceptance, displayed credit, selections, change payout, and coin return before returning the machine to normal service.

Can a bad connector cause payment problems?

Yes. Loose, damaged, dirty, or corroded electrical connections can cause intermittent or complete payment-system problems.

Should I order by appearance?

No. Match the complete model number, voltage, connector, payment system, and other required specifications.

What does refurbished mean for this product?

This is a previously used commercial vending component that has been prepared for resale. The listing states that the unit is cleaned and bench tested.

Why buy a refurbished coin mechanism?

A refurbished replacement can be a practical way to repair compatible existing vending equipment without replacing the entire machine.

Can I keep one as a spare?

Yes, if your vending route includes machines that use the same compatible configuration. A correctly matched spare can be useful for service work.

What is the Vending World SKU?

The SKU is CH9302LF.

Advantages of Replacing a Failed Coin Mechanism

• Helps restore cash payment capability.
• Can help reduce machine downtime.
• Allows continued use of compatible existing equipment.
• Can cost less than replacing an entire vending machine.
• Supports older commercial vending equipment.
• Provides a component-level repair option.
• Useful for route maintenance and refurbishment.

Advantages of the Coinco 9302LF Configuration

• Established Coinco vending payment design.
• 24V logic configuration.
• Micro 15-pin connector for compatible machines.
• Three payout tubes.
• Nickel, dime, and quarter change capability.
• Designed for commercial vending applications.
• Refurbished replacement option.
• Cleaned and bench tested.

Who Should Consider This Product?

This refurbished Coinco coin mechanism may be a good choice for:

• Vending route owners with compatible equipment.
• Vending machine repair technicians.
• Commercial vending machine refurbishers.
• Businesses maintaining their own vending machines.
• Operators restoring older snack machines.
• Operators repairing compatible multi-price beverage machines.
• Technicians looking for a replacement 9302LF.
• Operators building a stock of compatible route spare parts.

Who Should Not Order It Without Further Verification?

Do not order solely because your machine needs a coin mechanism.

Further verification is needed if:

• You do not know the voltage of your existing system.
• You cannot identify the connector.
• Your current mechanism has a different model number.
• Your machine has been converted to MDB.
• Your current unit has a 12-pin connector.
• Your machine uses a 110V logic system.
• The payment system has been modified.
• You are unsure whether the coin mechanism is actually causing the problem.

Why Correct Part Identification Saves Time

Ordering the wrong vending part creates extra work.

The machine remains out of service.

A second order may be required.

The technician may need another trip to the location.

Shipping time adds another delay.

A careful compatibility check before ordering can prevent many of these problems.

Use the Existing Mechanism as Your Reference

If the vending machine currently has a Coinco 9302LF installed, identification becomes easier.

Still check the voltage and connector.

Machines can be altered, and labels can sometimes be difficult to read.

Confirm rather than assume.

Keep Payment Components Dry

Moisture and electronics do not mix well.

If you discover water inside the vending machine, find and correct the source before installing replacement payment equipment.

Water intrusion can damage connectors, control boards, coin mechanisms, and other components.

Protect the Mechanism During Transport

If you carry spare coin mechanisms on a service vehicle, store them carefully.

Do not allow heavy tools or parts to damage the connector or payout area.

Protect electronic components from moisture and excessive dirt.

A spare part is only useful if it arrives at the machine in good condition.

Organize Spare Parts by Model

Route operators can save time by clearly labeling spare payment components.

Record:

• Model number
• Voltage
• Connector type
• Condition
• Date tested or installed

This makes it easier to choose the correct part during a service call.

Long-Term Vending Equipment Value

The value of a commercial vending machine comes from the sales it can produce over time.

Good maintenance can help extend that productive life.

Replacing individual worn components is a normal part of equipment ownership.

A coin mechanism is one of those serviceable components.

When correctly matched, a refurbished Coinco 9302LF can help keep compatible equipment working and earning.

Support Cash-Paying Customers

Cashless payments are common, but many vending locations still serve customers who use coins and bills.

A functioning coin mechanism allows the machine to continue serving those customers when the machine is configured for cash acceptance.

Reliable cash acceptance can remain important in schools, factories, warehouses, laundries, offices, service areas, and other vending environments.

Coin Mechanism and Bill Validator Operation

Some vending machines use both a bill validator and a coin mechanism.

These components may work together as part of the machine's overall payment system.

A customer may insert a bill and require change after a purchase.

The coin mechanism's available payout inventory can therefore affect more than coin-only transactions.

Always evaluate the complete payment system when troubleshooting.

Coin Mechanism and Card Reader Upgrades

Some older vending machines are upgraded with cashless payment equipment.

Whether a particular upgrade works with an existing logic system depends on the machine and installed hardware.

Do not assume that adding a card reader changes the requirements for the coin mechanism.

Verify the complete payment architecture before making upgrades or replacements.

Prevent Unnecessary Service Calls

Simple checks can sometimes prevent a service trip.

Before assuming the coin mechanism has failed, check:

• Machine power
• Door switches where applicable
• Connectors
• Change inventory
• Coin jams
• Coin return operation
• Machine error messages
• Programming

If these basic checks do not solve the problem, further diagnosis may be required.

Good Maintenance Starts With Clean Equipment

Keeping the inside of a vending machine reasonably clean can benefit many components.

Remove loose debris during routine service.

Do not allow spilled products, wrappers, dust, or other material to build up around payment equipment.

Use only appropriate cleaning procedures around electronic parts.

Plan Repairs Before Visiting the Location

A little preparation can make vending service more efficient.

Before traveling to the machine, review your records.

Confirm the machine model and installed payment equipment.

Bring the correct tools.

Bring a compatible replacement only after the component has been properly identified.

Bring coins for testing.

This preparation can reduce repeat service trips.

Final Compatibility Checklist Before Checkout

Before ordering the refurbished Coinco 9302LF, confirm each item below.

• My existing system requires a Coinco 9302LF or confirmed compatible configuration.
• My vending machine uses a 24V logic coin mechanism.
• My connector matches the Micro 15-pin configuration.
• My machine supports the correct logic interface.
• I understand that this is a refurbished component.
• I have compared the replacement specifications with my existing equipment.

If any item is uncertain, verify the machine before completing the purchase.

Why Choose a Refurbished Coinco 9302LF?

The biggest reason is simple.

You may already have a commercial vending machine designed around this payment configuration.

If that machine is still useful, replacing a worn coin mechanism can be a practical repair.

You do not necessarily need to replace an entire machine because one payment component has reached the end of its service life.

The refurbished Coinco 9302LF provides a replacement option for machines that specifically require its 24V logic, 15-pin, three-tube configuration.

Restore Reliable Coin Handling

A properly operating vending machine should make buying simple.

The customer inserts money.

The machine records the credit.

The customer chooses a product.

The product vends.

The machine returns change when necessary.

The coin mechanism plays a central role in that process for cash transactions.

When a compatible machine has a worn or failed coin changer, replacing the mechanism can help restore this basic function.

Keep Productive Machines in Service

Vending operators make money when machines are available and working.

Downtime interrupts that process.

A machine with a payment failure can sit full of products while customers walk away.

Repairing a failed coin system can help return the machine to productive service.

The Coinco 9302LF gives operators maintaining compatible equipment another option for doing exactly that.

Coinco 9302LF Refurbished Coin Mechanism Summary

The Coinco Series 9302LF 24V Logic Coin Mechanism is a refurbished commercial vending coin changer designed for compatible electronic vending equipment.

It operates on 24 volts.

It uses a Micro 15-pin connector.

It has three payout tubes.

Those tubes support nickel, dime, and quarter payout.

The unit is cleaned and bench tested before shipment.

For operators maintaining compatible vending equipment, these features make the 9302LF a practical replacement option when the existing coin mechanism needs to be replaced.

Key Features at a Glance

• Genuine Coinco model family
• Model 9302LF
• 24V logic coin mechanism
• Micro 15-pin connector
• Three payout tubes
• Nickel payout
• Dime payout
• Quarter payout
• Commercial vending application
• Useful for compatible snack machines
• Useful for compatible multi-price beverage machines
• Refurbished condition
• Cleaned before shipment
• Bench tested before shipment
• Vending World SKU CH9302LF

Important Compatibility Notice

Please verify compatibility before ordering.

The Coinco 9302LF is not a universal vending coin mechanism.

It is specifically identified as a 24V logic unit with a Micro 15-pin connector and three payout tubes.

Other Coinco models can look similar while using different electrical connections.

Other vending machines may use 110V logic equipment, 12-pin connectors, MDB systems, or other configurations.

Always compare the complete model number and connector with your existing equipment.

Order the Coinco Series 9302LF for the Correct Compatible Application

If your vending machine requires a Coinco 9302LF 24V logic coin mechanism with a 15-pin connector, this refurbished unit provides a practical replacement option.

It combines the familiar three-tube payout design with the electrical configuration required by compatible vending equipment.

The unit is prepared as a refurbished replacement and is cleaned and bench tested before shipment.

For vending operators, repair technicians, machine refurbishers, and businesses maintaining older commercial vending equipment, replacing the correct payment component can help extend machine life and reduce unnecessary equipment replacement.

Check your machine carefully.

Verify the model.

Verify 24V operation.

Verify the 15-pin connector.

Verify the logic payment system.

Then choose the replacement that matches your equipment.

SEO Product Overview

Looking for a Coinco 9302LF refurbished coin mechanism? This Coinco Series 9302LF is a 24V logic coin changer designed for compatible commercial vending machines. It features a Micro 15-pin connector and three payout tubes for nickel, dime, and quarter change.

The refurbished unit is an excellent option for operators repairing compatible snack vending machines, soda vending machines, beverage machines, and other commercial vending equipment using the correct 24-volt logic payment configuration.

Instead of replacing an entire vending machine because of a failed coin changer, a properly matched replacement coin mechanism can help return the machine to service.

Always verify the complete vending machine configuration before ordering. Check the Coinco model number, voltage, connector, payout tube arrangement, and payment system.

Common Search Terms for This Product

Customers searching for this type of replacement may use terms such as Coinco 9302LF, Coinco 9302LF coin mech, Coinco 9302LF coin mechanism, Coinco 24V coin mechanism, 24 volt vending coin changer, Coinco 15 pin coin mech, refurbished Coinco coin mechanism, vending machine coin changer, three tube coin mechanism, snack machine coin mechanism, soda machine coin changer, vending machine replacement coin mech, Coinco logic coin changer, and refurbished vending machine payment parts.

Regardless of the search term used, the technical specifications should determine whether the product is correct for your machine.

Final Product Description

The Coinco Series 9302LF 24V Logic Coin Mechanism – Refurbished is a dependable replacement payment component for compatible commercial vending machines.

Its defining specifications are easy to remember: 24 volts, logic operation, Micro 15-pin connection, and three payout tubes.

The three payout tubes support nickel, dime, and quarter change. This allows the mechanism to perform an important role in everyday vending transactions.

For route operators, a working coin mechanism helps keep machines available to cash-paying customers.

For technicians, correct model identification helps make repairs more efficient.

For refurbishers, a tested replacement payment component can help prepare an older commercial vending machine for continued service.

For business owners, replacing the correct component may be much more practical than replacing the complete machine.

This unit is offered in refurbished condition and is cleaned and bench tested before shipment.

Before ordering, confirm that your vending machine requires the Coinco 9302LF configuration. Check the model number on your current mechanism. Confirm the 24V requirement. Inspect the connector and make sure it is the correct 15-pin style. Confirm that the machine uses the appropriate logic payment system.

Do not choose a vending coin mechanism based only on appearance.

Do not assume that every Coinco 9302-series mechanism is identical.

Do not assume that every 24V mechanism uses the same connector.

Correct identification is the best way to avoid unnecessary downtime and ordering mistakes.

When the specifications match, the refurbished Coinco 9302LF offers a practical way to restore coin acceptance and change-making capability in compatible commercial vending equipment.

Coinco 9302LF – Quick Buying Guide

Buy this model when:

• Your machine requires a Coinco 9302LF.
• Your machine requires a 24V logic coin mechanism.
• Your existing mechanism uses the correct Micro 15-pin connector.
• Your application requires the compatible three-tube configuration.
• You want a refurbished replacement that has been cleaned and bench tested.

Verify further before buying when:

• Your current mechanism says 9302L instead of 9302LF.
• Your connector has a different pin configuration.
• Your machine uses MDB.
• Your machine uses a different voltage.
• The original payment system has been modified.
• You cannot identify the existing coin mechanism.

Coinco 9302LF – Final Buyer Checklist

• Model: 9302LF – checked.
• Voltage: 24V – checked.
• Connector: Micro 15-pin – checked.
• Type: Logic coin mechanism – checked.
• Tubes: Three – checked.
• Condition: Refurbished – understood.
• Machine compatibility: Confirmed before ordering.

Keep Your Vending Machine Ready for Business

A vending machine should be ready when a customer wants to make a purchase.

Reliable payment equipment is a major part of that goal.

If your compatible vending machine needs a replacement Coinco 9302LF, this refurbished 24V logic coin mechanism provides a straightforward component-level repair option.

Match the specifications carefully, install it using proper service procedures, test the complete payment system, and keep your vending equipment ready for the next customer.
