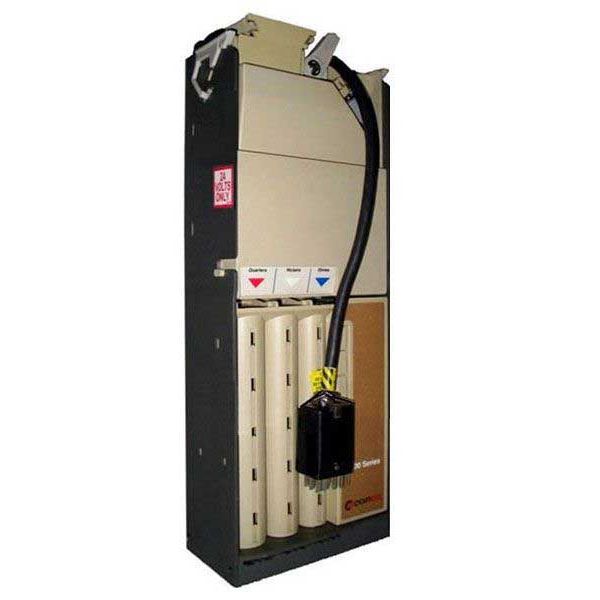

Coinco Series 9302L 24V Logic Coin Mechanism (Refurbished)

Coinco Series 9302L 24V Logic Coin Mechanism – Refurbished

Keep your vending machine operating with dependable coin handling and change-making performance with the Coinco Series 9302L 24V Logic Coin Mechanism. This refurbished Coinco 9302L is designed for vending machines that use a 24-volt logic coin mechanism with a 12-pin connection. It features three payout tubes for nickels, dimes, and quarters, making it a practical replacement for compatible vending equipment.

The Coinco 9302L is a proven electronic coin changer designed for commercial vending applications. Its combination of electronic coin sensing, three high-capacity payout tubes, automatic quarter maintenance, field programming, and a 12-pin interface gives vending operators a useful solution for machines that need reliable coin acceptance and change payout.

This unit is listed by Vending World as a refurbished product under SKU CH9302L. The product specifications identify it as a Coinco 9302L, 24-volt, 12-pin, three-tube logic mechanism. Because vending-machine electrical interfaces vary, operators should always verify the existing machine's voltage, connector, and coin-mechanism requirements before ordering.

Product Specifications

• Manufacturer: Coinco
• Model: 9302L
• Product Type: Logic coin mechanism
• Voltage: 24 volts
• Connector: 12-pin
• Payout Tubes: Three
• Coin Payout: Nickels, dimes, and quarters
• Coin Acceptance: U.S. nickels, dimes, quarters, and dollar coins
• Changer Capacity: Approximately $40.55 in nickels, dimes, and quarters
• Condition: Refurbished
• Vending World SKU: CH9302L

Reliable 24-Volt Logic Operation

The Coinco 9302L is specifically designed as a 24-volt logic coin changer. The voltage and connector configuration are two of the most important specifications to confirm when replacing a vending machine coin mechanism.

Coin mechanisms may look similar from one vending machine to another, but similar appearance does not always mean electrical compatibility. The Coinco 9302L uses a 12-pin connector and operates on 24 volts. Always compare the mechanism currently installed in your machine with the specifications of the replacement unit.

The Coinco installation documentation identifies the 9302-L as a 24-volt logic changer with a 12-pin plug. The same documentation distinguishes it from the 9300-L, which is a 110-volt logic changer, and the 9302-LF, which is a 24-volt logic changer with a 15-pin plug. These differences make model and connector verification especially important when ordering a replacement.

Three High-Capacity Payout Tubes

One of the key advantages of the Coinco 9302L is its three payout-tube design. The changer stores coins in dedicated tubes and can dispense nickels, dimes, and quarters as change.

Three payout tubes provide a practical balance between coin capacity and mechanism size. For vending operators, this means the machine can maintain a supply of commonly used change while continuing to support cash transactions throughout the day.

Change availability is an important part of the vending experience. A customer may insert a bill or several coins expecting the machine to calculate and return the correct change. A properly operating changer helps the machine complete that transaction without requiring the operator to manually intervene.

The Coinco 9302L is rated for approximately $40.55 of nickels, dimes, and quarters in its changer capacity. Actual coin distribution depends on how the tubes are filled and maintained.

Automatic Quarter Maintenance

The Coinco 9302L includes an automatic quarter maintenance feature with a selectable high or low quarter tube level. This feature helps operators manage the amount of quarter inventory maintained inside the changer.

Maintaining an appropriate supply of quarters is important because quarters are commonly needed when a vending machine must return change. The maintenance setting gives operators an additional way to manage the quarter inventory within the machine.

For high-use vending locations, keeping the coin changer properly loaded can help reduce the frequency of service visits caused by insufficient change. Operators can establish a maintenance routine based on machine traffic, product prices, and the amount of change normally required.

Accepts Common U.S. Coins

The Coinco 9302L is designed to accept common U.S. vending coins, including nickels, dimes, quarters, and dollar coins. The Coinco L Series documentation specifically lists U.S. nickels, dimes, quarters, and dollar coins among the accepted coins.

Dollar-coin acceptance can be controlled through the appropriate switch setting. The ability to accept or reject dollar coins gives vending operators another option when configuring a compatible machine for its intended customer base.

Dollar coins such as Susan B. Anthony and Sacagawea dollars are referenced in the product information for the 9302L. Acceptance of a particular coin type should always be considered together with the machine's programming, configuration, and intended market.

Electronic Coin Sensing Technology

Coin recognition is one of the most important functions of a vending machine coin mechanism. The Coinco 9302L uses electronic coin sensing technology to evaluate coins as they move through the mechanism.

The product information describes the 9302L as using patented coin sensing technology intended to provide resistance to counterfeit coins and vandalism. Reliable coin sensing helps the vending machine distinguish acceptable coins from coins that should be rejected.

Accurate coin acceptance helps protect the transaction process. Customers need to know that an accepted coin will be credited correctly, while vending operators need a mechanism that does not unnecessarily accept unacceptable currency.

Expandable Programmable Memory

Another feature associated with the Coinco 9302L is expandable programmable memory. This allows the mechanism's settings to be adjusted as needed for compatible vending applications.

Programmability can be useful for operators who manage multiple machines or who need to adjust machine settings as their vending operation changes. Instead of treating the coin mechanism as a fixed component, programmable functionality provides additional flexibility for field service and configuration.

On-Site Field Programming

Vending machines are often installed in locations where removing the equipment for service would be inconvenient. The Coinco 9302L provides on-site field programming, allowing appropriate adjustments to be made at the machine.

Field programming can simplify maintenance for vending operators and technicians. When a compatible mechanism requires a configuration change, the ability to work at the vending location can reduce unnecessary equipment handling.

Operators should use the appropriate Coinco documentation and follow the machine manufacturer's service procedures when programming or servicing the mechanism.

Heavy-Duty DC Payout Solenoids

The Coinco L Series documentation describes the 9302-L as using heavy-duty DC payout solenoids. These components are responsible for driving the payout process when the machine needs to return coins.

Fast and accurate coin payout is important because the customer transaction does not end when money is inserted. The vending machine must also complete the product vend and return any required change.

A dependable payout system helps the machine perform these functions in the expected sequence. For operators, that can make a properly maintained coin mechanism an important part of overall vending-machine reliability.

Designed for Vending Machine Applications

The Coinco 9302L was developed specifically for vending applications. Coin mechanisms operate in a demanding environment where they may process many transactions over long periods.

Every transaction can involve several steps. The mechanism must recognize inserted coins, determine their value, communicate the transaction information to the vending machine, and dispense the proper amount of change when necessary.

The 9302L combines these functions into one compact coin-handling assembly. Its three payout tubes and logic electronics make it suitable for compatible machines that require a traditional 24-volt logic changer rather than a modern MDB configuration.

Why the 12-Pin Connector Matters

The 12-pin connector is a defining characteristic of the Coinco 9302L. Operators should not assume that every 24-volt Coinco mechanism uses the same plug.

For example, the Coinco 9302LF is also a 24-volt logic mechanism, but it uses a 15-pin connector. The 9302L and 9302LF therefore should not be treated as identical simply because both models operate at 24 volts.

Connector configuration is one of the fastest ways to narrow down the correct replacement. Before purchasing, inspect the existing mechanism and verify the model number, voltage, connector, and vending machine interface.

9302L vs. 9302LF

The Coinco 9302L and 9302LF are closely related logic coin mechanisms, but their connectors are different. Understanding this distinction can help prevent ordering the wrong replacement.

Specification	Coinco 9302L	Coinco 9302LF
Voltage	24V	24V
Type	Logic Mechanism	Logic Mechanism
Payout Tubes	Three	Three
Connector	12-Pin	15-Pin

If your existing machine specifically requires the 12-pin 9302L configuration, the connector distinction is important. Always match the replacement mechanism to the vending machine rather than selecting a mechanism based only on the brand or voltage.

9302L Compared With 110-Volt Logic Mechanisms

Older vending equipment can use different electrical configurations. The Coinco 9300-L, for example, is identified in Coinco's documentation as a 110-volt logic changer with a 12-pin plug. The 9302-L is identified as a 24-volt logic changer with a 12-pin plug.

This makes voltage verification essential. A 12-pin connector by itself does not guarantee that two mechanisms are interchangeable. The machine's electrical system must be checked as well.

Do not connect a mechanism to a machine unless the voltage and interface requirements have been verified. Coinco's installation documentation also cautions users not to plug or unplug the changer while power is applied.

Refurbished Coinco 9302L

This product is offered as a refurbished Coinco 9302L. Refurbished vending components can be an economical way to keep established vending equipment operating without replacing the entire machine.

The value of a refurbished replacement is especially relevant for older commercial vending machines. If the cabinet, refrigeration system, shelves, control system, and other major components remain serviceable, replacing a failed coin mechanism may be a practical way to restore the machine to operation.

Vending World describes its refurbished equipment as cleaned and bench tested before shipment. This preparation is intended to ensure that the refurbished component is ready for installation when it reaches the customer.

Why Replace a Coin Mechanism?

A vending machine can have a fully functional refrigeration system, product delivery system, display, keypad, and cabinet, yet still be unable to complete cash transactions if its coin mechanism is not working correctly.

Common reasons for replacing a coin mechanism include inconsistent coin acceptance, failure to dispense change, damaged components, electrical faults, excessive wear, or the need for a compatible replacement after another mechanism reaches the end of its service life.

Replacing the mechanism can be less disruptive than replacing the entire vending machine. For operators who already have established locations, compatible replacement parts can help extend the useful life of existing equipment.

Benefits for Vending Operators

• Supports compatible 24-volt logic vending machines.
• Uses a 12-pin connector.
• Provides three payout tubes.
• Dispenses nickels, dimes, and quarters.
• Supports common U.S. vending coins.
• Includes automatic quarter maintenance.
• Provides field programming capability.
• Uses electronic coin sensing technology.
• Provides a practical replacement for compatible older vending equipment.
• Refurbished configuration can provide a cost-conscious alternative to replacing an entire machine.

Useful for Older Vending Equipment

Many vending operators continue to use proven equipment because the machine cabinet, product capacity, location, and mechanical systems still meet their needs. When one electronic component fails, replacing that component can help keep the machine productive.

The Coinco 9302L is particularly relevant for operators maintaining older machines that were designed around traditional logic coin mechanisms. Its 24-volt, 12-pin configuration identifies it as a specific replacement category rather than a universal coin changer.

Before purchasing, compare the old mechanism with the replacement. Check the label, connector, voltage, mounting arrangement, and payout-tube configuration. If there is any uncertainty, contact a vending equipment specialist before installation.

Coin Mechanism Maintenance

Regular maintenance is an important part of keeping a vending machine coin mechanism operating properly. Coins naturally carry dirt, dust, oils, and other contaminants. Over time, this material can accumulate in the coin path.

Coinco's product information emphasizes routine cleaning and inspection of the coin acceptance areas. A clean coin path helps the mechanism move coins smoothly and reduces the chance that accumulated debris will interfere with normal operation.

Basic Maintenance Practices

• Inspect the coin path regularly.
• Keep the coin acceptance area clean.
• Check payout tubes for proper operation.
• Inspect connectors for damage or contamination.
• Verify that the mechanism is securely installed.
• Keep the changer properly loaded with appropriate coins.
• Follow the manufacturer's service documentation.
• Disconnect power before removing or installing the mechanism.

Cleaning the Coin Path

Dirt and grime can affect coin movement and acceptance. Cleaning should be performed as part of a normal vending machine maintenance schedule, especially on machines located in busy environments.

Before servicing the coin mechanism, follow appropriate electrical safety procedures and disconnect power when required. The Coinco documentation specifically warns against plugging or unplugging the changer while power is applied.

Use cleaning procedures appropriate for the mechanism and avoid introducing liquids or chemicals that could damage electronic components. When servicing a refurbished or replacement mechanism, the goal should be to keep the coin path and moving components clean without damaging the electronics.

Three-Tube Change Management

A three-tube changer works best when the coin inventory is managed according to the machine's transaction volume. High-traffic locations may use substantially more change than machines installed in low-volume locations.

Operators can monitor the frequency of coin payouts and adjust their service schedule accordingly. Regularly checking the coin tubes can help identify whether a machine is using more quarters, dimes, or nickels than expected.

Proper coin inventory management can also reduce unnecessary service calls. A machine that consistently runs low on change may require more frequent replenishment or a different maintenance schedule.

Designed for Commercial Use

Vending machines are commercial appliances. They can operate for long periods and process repeated customer transactions. A coin mechanism therefore needs to perform consistently under normal vending conditions.

The Coinco 9302L combines rugged construction with electronic logic and mechanical coin payout components. The Coinco documentation describes the L Series construction as lightweight and rugged, with heavy-duty payout solenoids and an electronic logic system designed for reliability.

These characteristics make the 9302L a useful component for operators who maintain compatible vending machines and need a replacement coin changer rather than a completely new vending machine.

Installation Considerations

Installing a coin mechanism should begin with identifying the machine and confirming compatibility. Do not rely solely on photographs or general descriptions.

Confirm the following before installation:

1. Existing coin mechanism model number.
2. Machine operating voltage.
3. Connector type and pin count.
4. Number of payout tubes required.
5. Physical mounting configuration.
6. Machine control-system compatibility.
7. Coin acceptance requirements.

The Coinco 9302L is specifically a 24-volt, 12-pin logic mechanism. If your machine uses a different voltage, connector, or communication system, another Coinco or compatible mechanism may be required.

Important Electrical Safety Information

Electrical safety should always be considered when installing or servicing a vending machine component. Vending equipment can contain hazardous voltages, particularly when connected to mains power.

Coinco's installation guide includes a specific warning not to plug or unplug the changer while power is applied. Follow that instruction and any additional safety procedures specified by the vending machine manufacturer.

If you are not qualified to work on vending machine electrical systems, have the installation performed by a qualified technician.

How the Coinco 9302L Supports a Cash Transaction

A vending transaction begins when a customer inserts money into the machine. The coin mechanism evaluates coins and communicates their value to the machine's control system.

If the customer inserts more money than the selected product price, the machine may need to return change. The Coinco 9302L uses its payout tubes to provide nickels, dimes, and quarters as required by the transaction.

This process requires cooperation between the coin mechanism and the vending machine's control electronics. Correct voltage, connector configuration, programming, and machine compatibility are therefore essential.

Supporting Customer Convenience

Customers expect vending machines to accept money, vend the selected product, and return the correct change when necessary. A functioning coin mechanism is central to that experience.

When a coin mechanism works properly, customers can complete transactions without needing an attendant. This is particularly important for unattended vending locations such as workplaces, apartment communities, laundromats, schools, hotels, hospitals, warehouses, and other commercial environments.

For vending operators, maintaining reliable payment equipment can help reduce service interruptions and customer complaints.

Suitable Replacement for Compatible Machines

The Coinco 9302L can serve as a replacement mechanism when the existing vending machine requires a 24-volt 12-pin logic changer with three payout tubes.

It is not a universal replacement for every vending machine. Modern machines may use MDB coin mechanisms, while older equipment may use 110-volt or other logic interfaces. The correct replacement depends on the electrical and communication requirements of the machine.

Traditional Logic vs. MDB Coin Mechanisms

Vending technology has evolved over the years. Traditional logic coin mechanisms such as the Coinco 9302L use specific wiring and interfaces, while newer machines commonly use MDB, or Multi-Drop Bus, communication.

MDB systems use a different interface and should not be confused with a 12-pin logic mechanism. A Coinco 9302L should therefore be selected when the machine is designed for the 9302L's type of interface.

If your machine has a six-pin MDB coin mechanism, look for an appropriate MDB replacement rather than assuming that a 12-pin logic mechanism will work.

Why Model Identification Matters

Coin mechanisms often have model numbers that differ by only one or two characters. Those characters can represent major differences in voltage or connector configuration.

The difference between the 9302L and 9302LF is a useful example. Both are 24-volt logic mechanisms with three payout tubes, but the 9302L uses a 12-pin connector while the 9302LF uses a 15-pin connector.

Taking a few minutes to identify the existing mechanism can prevent ordering delays and installation problems.

Refurbished Value for Vending Operators

Purchasing a refurbished component can be an attractive option for operators maintaining an existing vending fleet. Rather than replacing an entire machine because of one failed payment component, an operator can replace the specific component that needs attention.

Refurbished parts can also be useful when manufacturers no longer offer certain older components as new products. Established vending operators often need dependable replacement parts for machines that have been in service for years.

Vending World lists the Coinco 9302L as refurbished and identifies it with SKU CH9302L. The product page describes the unit as cleaned and bench tested before shipment.

Who Should Consider the Coinco 9302L?

This coin mechanism is designed for vending operators, technicians, repair shops, and businesses that maintain compatible vending machines.

It may be useful for:

• Vending machine route operators
• Independent vending businesses
• Vending machine repair technicians
• Commercial equipment service companies
• Snack machine operators
• Cold drink machine operators
• Businesses maintaining older vending equipment
• Vending machine refurbishment projects
• Replacement-parts inventories

Keeping a Spare Coin Mechanism

Operators with multiple compatible machines may benefit from keeping commonly used replacement components in inventory. A spare coin mechanism can reduce downtime when a field unit develops a problem.

Keeping a replacement available can be particularly helpful for operators who service vending machines across multiple locations. Instead of waiting for a part to become available before completing a repair, the operator can install the replacement and return the machine to service.

The failed mechanism can then be evaluated, repaired, or retained as a serviceable backup when appropriate.

Common Coin Mechanism Problems

Coin mechanisms can experience several types of problems over time. Dirt and debris can interfere with the coin path. Mechanical components can wear. Electrical connections can become damaged. Payout components can also require service after extensive use.

Symptoms that may indicate a coin mechanism requires inspection include:

• Coins being rejected unexpectedly.
• Coins failing to travel through the mechanism correctly.
• Incorrect or incomplete change payout.
• Machine errors related to coin handling.
• Failure to recognize accepted currency.
• Problems maintaining the proper coin level.
• Intermittent operation.

Not every vending-machine payment problem is caused by the coin mechanism. Wiring, the vending machine control board, power supply, bill validator, switches, and other components can also contribute to transaction problems. Proper troubleshooting is recommended before replacing parts.

Checking the Vending Machine Before Ordering

The best way to determine whether this Coinco 9302L is appropriate is to compare it with the mechanism currently installed in your machine.

Look for the Coinco model number on the existing unit. Confirm whether it is marked 9302L and whether the machine uses the required 24-volt power and 12-pin connector.

If your existing mechanism is marked 9302LF, 9302GX, or another model, do not assume that the 9302L is a direct replacement. Those models may use different connectors or communication systems.

Coinco 9302L Product Highlights

• 24V Logic Design: Built for compatible 24-volt vending machine systems.
• 12-Pin Interface: Uses the traditional 12-pin connector configuration.
• Three Payout Tubes: Stores and pays out nickels, dimes, and quarters.
• U.S. Coin Support: Designed to accept common U.S. vending coins.
• Quarter Maintenance: Provides selectable high or low quarter tube maintenance.
• Field Programming: Supports on-site programming for compatible applications.
• Electronic Sensing: Uses electronic coin sensing technology.
• Refurbished: A practical option for maintaining existing vending equipment.

Built Around Practical Vending Needs

A vending machine's payment system must balance accuracy, speed, capacity, and serviceability. The Coinco 9302L addresses these requirements through its three-tube design, electronic logic, coin sensing system, and field programming capabilities.

The three payout tubes allow the mechanism to maintain a supply of common change. The 24-volt electrical configuration is intended for compatible vending equipment. The 12-pin interface provides the connection required by machines designed for this model.

These features make the 9302L a useful component for operators who want to keep compatible vending equipment in operation without replacing an entire machine.

Maintenance Tips for Longer Service Life

Proper maintenance can help protect the performance of a coin mechanism. Although the Coinco 9302L is designed for vending applications, all vending components benefit from regular inspection.

1. Keep the Mechanism Clean

Dirt and debris can accumulate as coins move through the mechanism. Inspect the coin path regularly and clean it using appropriate service procedures.

2. Monitor Coin Levels

Check the payout tubes during regular service visits. Make sure the mechanism has enough coins available to meet the needs of the machine's transaction volume.

3. Inspect Connections

The 12-pin connection should be inspected for damage, loose connections, corrosion, or contamination. Electrical connections should be serviced only when appropriate safety procedures are followed.

4. Check for Repeated Errors

If the same coin acceptance or payout problem occurs repeatedly, investigate the underlying cause rather than repeatedly resetting the machine.

5. Follow Manufacturer Documentation

Use the appropriate Coinco documentation when installing, programming, cleaning, or servicing the mechanism.

For Snack and Beverage Vending Applications

Coin mechanisms are used across many types of vending equipment. A 24-volt logic changer may be found in compatible snack machines, beverage machines, and other commercial vending equipment.

The specific machine application depends on the equipment manufacturer and the electrical interface. Operators should confirm compatibility before installation.

Whether the machine sells snacks, canned beverages, bottled drinks, or other products, the payment mechanism remains a critical part of the overall system.

Reducing Vending Machine Downtime

Downtime can be frustrating for vending operators because an unavailable machine cannot complete sales. Having access to compatible replacement components can make maintenance more efficient.

A refurbished Coinco 9302L can be used to replace a compatible failed mechanism. Once installed and properly configured, the vending machine can be returned to normal operation.

Operators should test the machine after installation. Run representative coin transactions and verify that the machine recognizes currency and provides the expected change before returning the equipment to unattended service.

Testing After Installation

Testing is an important step after replacing a coin mechanism. The machine should be evaluated under normal operating conditions before being placed back into regular service.

Suggested checks include:

• Confirm the mechanism powers up correctly.
• Test coin acceptance.
• Test rejected coins where appropriate.
• Test multiple coin denominations.
• Test product selections at representative prices.
• Verify change payout.
• Check quarter maintenance behavior.
• Inspect the mechanism for abnormal noises or movement.

Testing helps identify installation or configuration problems before customers encounter them.

Important Compatibility Reminder

The Coinco 9302L should be purchased based on the exact requirements of your vending machine. It is a 24-volt, 12-pin logic coin mechanism. The 12-pin connector should not be confused with the 15-pin connector used by the related 9302LF.

It should also not be confused with MDB coin mechanisms. MDB equipment uses a different communication configuration and is commonly found on newer vending machines.

When in doubt, compare the model number and connector on your existing coin mechanism or contact a qualified vending technician for assistance.

Why Coin Mechanism Quality Matters

Payment equipment has a direct effect on the vending transaction. If a machine cannot accurately accept coins or return change, the customer may be unable to complete the purchase.

A properly functioning coin mechanism helps connect the customer's payment with the vending machine's control system. This makes the coin changer one of the most important service components inside a traditional cash-based vending machine.

The Coinco 9302L provides a proven three-tube design for compatible 24-volt vending applications and can be a useful replacement option when an existing 9302L needs to be replaced.

Product Summary

The Coinco Series 9302L 24V Logic Coin Mechanism is a refurbished three-tube coin changer designed for compatible vending machines. It operates at 24 volts and uses a 12-pin connector. The mechanism accepts common U.S. coins and pays out nickels, dimes, and quarters through its three payout tubes.

Additional features include automatic quarter maintenance, electronic coin sensing, expandable programmable memory, and on-site field programming. Coinco documentation also identifies heavy-duty DC payout solenoids and rugged construction as part of the L Series design.

For vending operators maintaining older compatible equipment, a refurbished 9302L can provide a practical way to replace a worn or malfunctioning coin mechanism while keeping the existing vending machine in service.

Order the Coinco 9302L Refurbished Coin Mechanism

If your vending machine requires a Coinco 9302L 24V 12-pin logic coin mechanism, this refurbished unit is designed to provide the coin acceptance and change payout functions required by compatible vending equipment.

Before ordering, verify the model number, voltage, connector, and machine compatibility. This step is especially important because Coinco produced several similar-looking mechanisms with different electrical and connector configurations.

The Coinco 9302L combines three payout tubes, U.S. coin acceptance, automatic quarter maintenance, electronic sensing, programmable functionality, and a traditional 12-pin 24-volt logic interface. For operators who maintain compatible vending machines, these features make it a useful replacement component for cash-based vending applications.

Frequently Asked Questions

What is the Coinco 9302L?

The Coinco 9302L is a 24-volt logic coin mechanism designed for compatible vending machines. It uses a 12-pin connector and has three payout tubes for nickels, dimes, and quarters.

Is the Coinco 9302L refurbished?

Yes. The Vending World product listing identifies the Coinco 9302L as a refurbished unit. Vending World states that its refurbished mechanisms are cleaned and bench tested before shipment.

How many payout tubes does the 9302L have?

The Coinco 9302L has three payout tubes. The tubes are used for dispensing nickels, dimes, and quarters.

What voltage does the Coinco 9302L use?

The Coinco 9302L is a 24-volt logic coin mechanism.

What connector does the 9302L use?

The Coinco 9302L uses a 12-pin connector.

Is the 9302L the same as the 9302LF?

No. Both models are 24-volt logic mechanisms with three payout tubes, but the 9302L uses a 12-pin connector, while the 9302LF uses a 15-pin connector.

What coins does the Coinco 9302L pay out?

The mechanism pays out nickels, dimes, and quarters through its three payout tubes.

Does the Coinco 9302L accept dollar coins?

The Coinco L Series documentation identifies U.S. dollar coins among the accepted coin types. The product information also references Susan B. Anthony and Sacagawea dollar coins.

Can the quarter level be adjusted?

Yes. The 9302L includes selectable high or low quarter tube maintenance.

Can the Coinco 9302L be programmed in the field?

The product information identifies on-site field programming as a feature of the 9302L.

Is the Coinco 9302L an MDB coin mechanism?

No. The 9302L is a 24-volt logic coin mechanism with a 12-pin connector. MDB coin mechanisms use a different interface and communication system.

Can I use the 9302L in any vending machine?

No. Compatibility depends on the vending machine's voltage, connector, control system, mounting arrangement, and required coin mechanism type. Verify these specifications before ordering.

What should I check before buying?

Check the existing mechanism's model number, voltage, connector, payout-tube configuration, and vending machine interface. If the existing unit is not a 9302L or if the connector differs, confirm compatibility before purchasing.

Final Takeaway

The Coinco Series 9302L 24V Logic Coin Mechanism is a specialized replacement component for compatible vending machines that require a 24-volt, 12-pin logic changer. Its three payout tubes support nickels, dimes, and quarters, while its electronic sensing and programming features provide the functionality expected from a commercial vending coin mechanism.

Its refurbished configuration makes it a practical option for operators who need to maintain existing vending equipment. Rather than replacing an entire machine because of a failed coin changer, operators can use a compatible replacement mechanism to help restore cash-payment functionality.

As with any vending replacement part, compatibility should be verified before installation. Confirm that your machine requires the Coinco 9302L, 24 volts, and a 12-pin connection. When those specifications match, this refurbished Coinco mechanism provides a purpose-built solution for coin acceptance and change payout in compatible vending applications.
