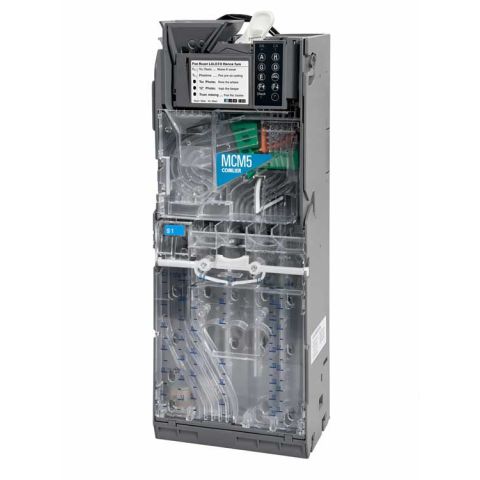

Conlux MCM5 ($1 Cassette ) MDB 5 Tube Coin Mechanism (Refurbished)

Conlux MCM5 1 Cassette MDB 5-Tube Coin Mechanism Refurbished

The Conlux MCM5 1 Cassette MDB 5-Tube Coin Mechanism is a high-capacity coin changer made for vending machines that use an MDB payment system. This refurbished unit is designed for operators who need dependable coin acceptance, fast change payout, and easy service.

The MCM5 combines a five-tube coin cassette with a Multi-Drop Bus (MDB) interface. It accepts common U.S. coins and provides change through five payout tubes. The cassette design also makes it easier to fill, inspect, and service the coin changer.

This version uses the 5-10-25-25-$1 configuration. It has one nickel tube, one dime tube, two quarter tubes, and one dollar-coin tube. The high-capacity design helps provide a useful supply of change for busy vending locations.

Because this product is refurbished, it can be a practical way to replace a failed or worn coin mechanism without buying a brand-new changer. Each unit should still be checked for machine compatibility before installation.

Product Highlights

• Manufacturer: Conlux
• Model: MCM5
• Product type: MDB coin mechanism
• Condition: Refurbished
• Interface: MDB
• Connection: 6-pin MDB
• Coin tubes: Five
• Configuration: 5¢ / 10¢ / 25¢ / 25¢ / $1
• High-capacity cassette: Yes
• U.S. coin acceptance: 5¢, 10¢, 25¢, and $1
• Weight: Approximately 3.5 lb
• SKU: CHMCM5$1

Why the Conlux MCM5 Is Useful for Vending Operators

A coin mechanism is one of the most important parts of a cash vending system. Customers expect a machine to accept a valid coin, complete the sale, and return the correct change. A problem with any part of this process can interrupt a transaction.

The Conlux MCM5 is designed to make this process simple. Its MDB connection lets the coin changer communicate with the vending machine controller. The five-tube cassette provides space for several coin denominations. The high-capacity design can also help reduce the number of times an operator needs to refill the changer.

For operators managing several machines, these features can make routine service easier. A dependable coin changer can also help keep machines ready for customers during busy periods.

High-Capacity Five-Tube Coin Cassette

The MCM5 uses a removable five-tube cassette. Each tube is assigned to a coin denomination. The cassette can be handled as a unit, which makes filling and service more convenient.

The factory configuration associated with this version is 5-10-25-25-$1. This arrangement provides separate storage for nickels, dimes, quarters, and dollar coins.

The two quarter tubes are especially useful in locations where quarter payouts are common. Having additional quarter capacity can help reduce the chance of running low on one of the most frequently used U.S. vending change denominations.

Conlux documentation describes the MCM5 cassette as having increased tube capacity. The tubes can accommodate two full rolls of coins, depending on the coin denomination and cassette configuration. Fill lines also help operators quickly check the amount of change remaining.

5-10-25-25-$1 Configuration

The 5-10-25-25-$1 coin configuration is a key feature of this MCM5 version.

• 5¢ tube: Stores nickels.
• 10¢ tube: Stores dimes.
• 25¢ tube: Stores quarters.
• 25¢ tube: Provides additional quarter capacity.
• $1 tube: Stores U.S. dollar coins.

This arrangement gives operators a balanced mix of common change denominations. The exact payout behavior will depend on the vending machine controller, vend prices, float settings, and payment configuration.

Before installing a replacement changer, always compare the existing cassette configuration with the replacement unit. A different tube arrangement may affect the type and amount of change available from the machine.

MDB Compatibility

The Conlux MCM5 is an MDB coin mechanism. MDB stands for Multi-Drop Bus. It is a common communication and power system used in modern vending equipment.

The MDB connection allows the vending machine controller to communicate with the coin changer. The machine can monitor payment information and request change when needed.

The MCM5 manufacturer documentation specifies MDB operation and a +34VDC operating supply through the vending system.

MDB compatibility can also be useful in vending machines that use more than one payment device. Depending on the machine controller and its configuration, an MDB coin mechanism may operate alongside other MDB payment equipment.

Always verify the machine's MDB support and harness configuration before ordering. MDB compatibility by itself does not guarantee that every vending machine will accept every coin mechanism.

6-Pin MDB Connection

This MCM5 version is listed with a 6-pin MDB connection. The connection is designed for vending equipment using the appropriate MDB wiring and controller.

A proper connection is important for both communication and power. Before installation, turn off the vending machine according to the manufacturer's service procedure. Inspect the harness and connector for damage, corrosion, loose terminals, or signs of wear.

Never force a connector into place. If the connector does not match the machine's harness, stop and confirm compatibility before proceeding.

Fast Change Payout

Busy vending locations benefit from quick transactions. The MCM5 is designed for rapid payout and can dispense multiple coins during a change transaction.

Conlux documentation describes simultaneous payout of up to three coins. This feature can help reduce the time required to complete transactions that need several coins.

Faster change payout can be helpful in offices, manufacturing facilities, schools, apartment buildings, hospitals, transportation areas, and other locations where several customers may use a machine in a short period.

Reduce Exact-Change Problems

Customers do not always carry exact change. A vending machine that accepts coins but cannot provide the required change may restrict sales or display an exact-change message.

A properly stocked five-tube changer gives the machine more change capacity. The MCM5's high-capacity cassette is designed to help operators keep useful quantities of change available.

Operators can also use the cassette's fill markings to check coin levels during routine service. A quick visual check can help identify a low tube before it becomes a customer-facing problem.

Adjustable Float Options

The MCM5 includes float-management features that give operators more control over the amount of change kept inside the changer.

Vending World describes two factory float levels of $34 and $52. The manufacturer documentation also describes automatic cassette programming and float settings.

Float settings can be useful when machines operate at different sales volumes. A low-volume location may not need the same change reserve as a busy location.

Operators should choose float settings based on actual machine use, vend prices, payment patterns, and service schedules.

Automatic Cassette Recognition

The MCM5 cassette system is designed to simplify configuration. Manufacturer documentation states that cassette programming can be automatic. A preconfigured cassette can be installed, allowing the changer to recognize the cassette configuration.

This design reduces the need for manual programming when the correct cassette is being used. It can also help operators manage machines that require different coin configurations.

Always use the correct cassette and configuration for the specific MCM5 application.

Easy Tube Access

Routine coin changer service should be simple. The MCM5 cassette provides access to the coin tubes so operators can fill the changer and inspect the coin supply.

Easy access matters because coin levels need to be checked as part of normal vending service. A machine that sells many products can use its change supply quickly.

The manufacturer also notes that the rear-access tube design makes it easier to fill tubes with full rolls of coins and remove foreign material when cleaning.

Clear Coin Visibility

Visual access is another helpful service feature. The MCM5 design includes a transparent coin-door area that provides greater visibility into the coin path.

Being able to see the coin path can help an operator identify a visible obstruction or determine whether a coin has moved through the mechanism.

Color-coded areas and visible components can also make routine inspection easier.

Durable Design for Vending Environments

Vending machines operate in many different environments. Machines may be installed in offices, factories, schools, apartment buildings, laundromats, hotels, gyms, transportation areas, and public facilities.

The coin mechanism must deal with repeated transactions. It may also encounter dirty coins, foreign objects, improper use, and normal wear.

The MCM5 was designed with durability and service access in mind. Vending World describes a robust diversion path intended to improve resistance to damage and environmental wear.

Even a durable coin changer needs proper maintenance. Keeping the coin path clean and protecting the vending machine from water and excessive debris can help support reliable operation.

Energy-Efficient Idle Operation

The MCM5 design also focuses on efficient operation. Vending World states that the MCM5 uses less power during idle operation than certain earlier models.

Lower idle power use can be useful for vending operators managing many machines. Even small differences in power use can become more noticeable across a large vending fleet.

Energy use will vary by vending machine, controller, payment system, operating conditions, and other connected equipment.

U.S. Coin Acceptance

The MCM5 is designed to accept common U.S. vending coins. Manufacturer documentation lists acceptance of:

• 5-cent coins
• 10-cent coins
• 25-cent coins
• $1 coins

The MCM5 platform can also support Canadian coin configurations depending on the specific setup and switch selection. The manufacturer documentation lists Canadian 5¢, 10¢, 25¢, $1, and $2 coins for applicable configurations.

For this specific refurbished product, verify the configuration before use if your machine requires Canadian currency or a non-standard coin setup.

Refurbished Conlux MCM5 Value

This product is sold as a refurbished Conlux MCM5 coin mechanism. Refurbished vending parts can offer an alternative to purchasing new equipment.

A refurbished coin mechanism can be especially useful when an operator needs to repair an existing machine while keeping the overall repair budget under control.

Refurbished equipment should be inspected and tested before being placed into service. It is also important to verify that the replacement unit matches the machine's interface, cassette configuration, and operating requirements.

Why Replace a Failed Coin Mechanism?

A vending machine can have a strong location and a good product mix, but payment problems can still interrupt sales.

A failing coin mechanism may show several symptoms:

• Valid coins are rejected.
• Coins do not enter the correct path.
• Change does not pay out correctly.
• The machine reports a coin mechanism error.
• The machine enters an exact-change condition too often.
• Coins become stuck.
• The changer does not communicate correctly with the controller.
• The cassette does not maintain the expected coin float.

Not every problem means the coin mechanism must be replaced. Cleaning, wiring checks, controller diagnostics, or other service may solve some issues. However, when the mechanism itself has failed, a tested replacement can restore the machine more quickly.

Common Applications

The Conlux MCM5 can be considered for many MDB-equipped vending applications.

• Snack vending machines
• Cold drink vending machines
• Combo vending machines
• Office vending machines
• Factory vending machines
• School vending machines
• Apartment vending machines
• Hotel vending machines
• Gym and fitness center vending machines
• Laundromat locations
• Employee break rooms
• Public facility vending locations

The key requirement is compatibility with the vending machine's MDB payment system and the required coin configuration.

Useful for High-Traffic Vending Locations

High-traffic vending locations can place greater demands on payment equipment. More transactions mean more coins entering and leaving the changer.

The MCM5's five-tube cassette provides a larger change reserve than a basic changer with fewer tubes. Its payout design also supports rapid change transactions.

This combination can make the MCM5 useful for machines located where customers make frequent purchases throughout the day.

Support for Fleet Operators

Vending operators with multiple machines often look for consistent parts across their fleet. Standardizing payment equipment can make service and troubleshooting easier.

If several machines use compatible MDB systems, an operator may find it useful to keep a tested replacement coin mechanism available as part of a service inventory.

A spare changer can reduce downtime when a machine develops a payment problem in the field.

Coin Tube Capacity Matters

Coin capacity is more than a convenience. It can affect service frequency.

If a coin tube reaches a low level too quickly, the machine may not have enough change available for customers. An operator then needs to visit the machine and refill the cassette.

A larger tube capacity can help extend the time between service visits. The MCM5 cassette is designed to hold larger quantities of coins, with manufacturer documentation noting capacity for two full rolls in the tubes.

Actual capacity can vary based on the coin type, cassette, configuration, and operating conditions.

Simple Service Design

Vending service should be efficient. Operators often maintain many machines in different locations.

The MCM5 is designed with service access in mind. The cassette can be accessed for filling, inspection, and cleaning. The manufacturer also describes field maintenance as a tool-free process for normal assembly and service tasks.

Simple access can help reduce the time needed for routine maintenance.

Diagnostic Features

The MCM5 includes a diagnostic LED and a redesigned keypad. These features can make it easier to check status and perform certain settings.

The manufacturer describes a nine-button keypad and recessed dip switches. The recessed switches are intended to reduce accidental setting changes during normal use.

When troubleshooting, operators should follow the service instructions for the specific vending machine and coin changer.

MCM5 Dimensions and Weight

Manufacturer documentation lists the MCM5 at approximately:

• Height: 14.83 inches
• Width: 5.43 inches
• Depth: 3.23 inches
• Weight: approximately 3.5 lb

These dimensions can help when planning a replacement, but physical dimensions alone should not be used to confirm compatibility. The mounting arrangement, MDB connector, machine controller, cassette configuration, and available cabinet space should all be checked.

Electrical Specifications

The MCM5 manufacturer data lists an MDB operating voltage of approximately +34VDC. The documented idle power consumption is 0.07A. Motor operation is listed at 0.66A, with a peak maximum of 0.92A for five seconds.

The coin changer receives its operating power through the vending machine's MDB system. It is not intended to be connected to an unrelated external power supply without following the manufacturer's specifications.

Operating Temperature

Manufacturer documentation lists an operating temperature range of approximately 5°F (-15°C) to 140°F (60°C).

Actual vending equipment performance can depend on the entire machine, not just the coin mechanism. Extreme temperatures, moisture, condensation, dirt, and other environmental factors can affect vending equipment.

Coin Validation and Customer Experience

Customers want a simple payment experience. They insert a coin, make a selection, and receive the product and any required change.

A properly operating coin mechanism supports that process by identifying accepted coins and communicating payment information to the machine controller.

The MCM5 is designed for accurate coin handling and payout. Proper cleaning and maintenance remain important because dirt and foreign material can affect any coin-handling system.

Use With Other Payment Equipment

Modern vending machines often support multiple payment methods. A machine may accept coins, bills, and cashless payments.

MDB provides a common communication platform for many vending payment devices. An MDB coin mechanism may therefore be used in a machine that also supports compatible MDB payment peripherals.

Compatibility should always be checked at the machine level. Confirm the controller, payment bus, harness, software, and peripheral configuration before installation.

Coin Mechanism for Snack Machines

Snack machines often use several price points. A customer may purchase a low-cost snack with coins or may insert a larger denomination and expect change.

A five-tube changer gives the machine more flexibility when handling different vend prices.

The MCM5 can be useful for snack machines that support MDB payment equipment and require a five-tube changer.

Coin Mechanism for Beverage Machines

Beverage vending machines can also benefit from a high-capacity coin changer. Beverage prices may vary by product, package size, location, and machine.

A well-stocked changer can help the machine return change after larger coin payments.

Operators should confirm that the beverage machine supports the required MDB coin mechanism before ordering.

Coin Mechanism for Combo Machines

Combo vending machines sell more than one type of product from the same cabinet. They may offer snacks, candy, beverages, or other products.

Because combo machines can have many different price points, dependable change handling is important.

The MCM5's five-tube design can provide useful change capacity for a compatible combo vending system.

Refurbished Versus New

When a vending machine needs a replacement coin changer, operators often consider both new and refurbished equipment.

A new unit may be preferred when a new part is required by a specific application. A refurbished unit can provide a lower-cost alternative when the goal is to restore an existing machine.

The right choice depends on budget, machine age, availability, required features, and compatibility.

The important point is to purchase the correct model and configuration for the machine rather than choosing a coin mechanism based only on price.

Before Ordering the Conlux MCM5

Check the following information before placing an order:

• Vending machine manufacturer
• Vending machine model
• Existing coin mechanism model
• MDB compatibility
• MDB connector type
• Number of coin tubes required
• Required coin denominations
• Existing cassette configuration
• Available cabinet space
• Controller compatibility

If possible, compare the old mechanism with product photos and specifications before ordering.

Installation Considerations

Installation should be performed with the vending machine powered down and in accordance with the machine manufacturer's service instructions.

1. Disconnect machine power according to the service procedure.
2. Open the payment compartment.
3. Identify the existing coin mechanism.
4. Inspect the MDB harness and connector.
5. Remove the existing mechanism according to the machine's mounting design.
6. Install the compatible MCM5 unit.
7. Connect the MDB harness securely.
8. Check the cassette and coin configuration.
9. Restore power.
10. Run the machine's payment and payout tests.
11. Verify coin acceptance.
12. Verify change payout.
13. Confirm that the machine returns to normal operation.

Do not attempt electrical work beyond your training or the manufacturer's service instructions. If the machine has an electrical fault, contact a qualified vending technician.

Testing After Installation

Testing is an important step after installing a coin mechanism.

Start with the machine's normal diagnostic procedure. Check that the controller recognizes the changer.

Then test accepted coins. Use the coin denominations supported by the selected configuration.

Next, test a vend that requires change. Confirm that the correct amount is returned.

Also check the coin return path. Make sure coins move through the system without unusual resistance.

Maintenance Tips

Regular maintenance can help keep vending payment equipment working properly.

• Inspect the coin path during routine service.
• Keep the cassette free of debris.
• Check tube levels.
• Look for foreign objects.
• Inspect the MDB harness.
• Check for damaged connectors.
• Review machine error messages.
• Test coin acceptance when servicing the machine.
• Test change payout when needed.
• Follow the manufacturer's cleaning recommendations.

Do not use harsh chemicals or excessive moisture on electronic components. Always use the proper cleaning procedure for the equipment.

Signs That a Coin Mechanism Needs Attention

Operators should investigate repeated payment problems rather than simply resetting the machine.

• Frequent coin rejection
• Repeated coin jams
• Incorrect change payout
• Failure to dispense change
• MDB communication errors
• Unexpected exact-change messages
• Unusual mechanical noise
• Coins becoming trapped
• Repeated low-change conditions

Some problems can be caused by the vending machine controller, wiring, software, or power supply. Proper troubleshooting should identify the actual source before a replacement part is installed.

Benefits for Vending Route Operators

Route operators spend a large amount of time maintaining machines. Small improvements in service efficiency can matter when multiplied across a route.

The MCM5's cassette design makes it easier to inspect and refill coin tubes. Its five-tube capacity can also help provide more change between service visits.

For operators using several compatible machines, having replacement coin changers available can also reduce repair delays.

Benefits for Machine Owners

Business owners who operate vending machines may not have time to deal with repeated payment problems.

A reliable coin mechanism helps create a smoother customer experience. When customers can pay and receive change without unnecessary delays, the machine can remain available for sales.

The MCM5 can be a useful replacement option when an existing MDB coin changer has reached the end of its service life or requires replacement.

Designed for Practical Vending Service

The MCM5 focuses on practical features. The five-tube cassette provides change storage. The MDB interface provides communication with the vending controller. The keypad and diagnostic features support setup and service.

These features are designed around real vending needs rather than unnecessary complexity.

Five Payout Tubes

Five payout tubes give the MCM5 an advantage over simpler coin changers with fewer tubes. More tubes allow the changer to maintain a wider range of denominations.

The specific 5-10-25-25-$1 configuration provides a useful mix for U.S. vending applications that use dollar coins.

Operators should always make sure that the tube configuration matches the machine's programming and payment requirements.

High-Capacity Coin Storage

High-capacity coin storage can reduce the frequency of refill visits.

For example, a busy machine may use many quarters during the day. Additional quarter capacity can help the changer continue making change for longer periods.

This does not remove the need for regular route service. Operators should still monitor coin levels and refill the cassette according to sales volume.

Last-Coin Payout Feature

The MCM5 design includes a last-coin payout feature. This can help the changer use remaining coins in appropriate payout situations rather than leaving unusable coin inventory behind.

Features such as this can support better use of the coin float over time.

Coin Tube Fill Lines

Visual indicators make routine service easier. The MCM5 cassette includes tube fill lines that allow operators to quickly see coin levels.

A route driver can inspect the cassette during normal service and determine whether a tube needs additional coins.

This is a simple feature, but it can save time during repeated service visits.

Recessed Programming Controls

The MCM5 uses recessed dip switches for certain configuration settings. This helps reduce the risk of accidental changes during normal handling.

Operators should document the machine's settings before making changes. Incorrect configuration can affect coin acceptance or payout behavior.

Simple Operator Interface

The redesigned keypad provides a straightforward interface for supported settings and service functions.

A diagnostic LED provides additional status information.

These features can be especially useful for technicians servicing multiple machines.

Conlux MCM5 Product Specifications

Specification	Details
Manufacturer	Conlux
Model	MCM5
Product Type	5-Tube MDB Coin Mechanism
Condition	Refurbished
Interface	Multi-Drop Bus (MDB)
Connector	6-Pin MDB
Tube Count	5
Configuration	5¢ / 10¢ / 25¢ / 25¢ / $1
U.S. Coin Acceptance	5¢, 10¢, 25¢, $1
Operating Voltage	+34VDC through MDB system
Approximate Weight	3.5 lb
Approximate Dimensions	14.83" H × 5.43" W × 3.23" D
SKU	CHMCM5$1

Important Compatibility Information

This product is intended for compatible vending machines. The fact that a machine uses coins does not automatically mean that every coin mechanism will work with it.

Check the following before purchase:

• MDB support
• 6-pin MDB harness
• Controller compatibility
• Required coin denominations
• Cassette configuration
• Machine mounting arrangement
• Available cabinet space

If you are replacing an existing MCM5, compare the model and configuration carefully. If you are replacing another brand or model, additional compatibility checks may be needed.

SEO Keywords for the Conlux MCM5

This product is relevant to searches for Conlux MCM5 coin mechanism, Conlux MCM5 refurbished, Conlux MCM5 MDB coin changer, Conlux five tube coin mechanism, MDB coin mechanism, five tube vending coin changer, refurbished vending coin mechanism, 5-10-25-25-$1 coin changer, Conlux MCM5 6 pin, and vending machine coin changer replacement.

It can also be relevant to operators searching for a replacement MDB coin mechanism for snack machines, beverage machines, combo machines, and other compatible vending equipment.

Conlux MCM5 for Vending Machine Repair

When a vending machine payment system stops working, restoring the machine quickly is important.

A replacement coin mechanism can often be one part of the repair process. The operator should first determine whether the fault is in the changer, MDB harness, machine controller, power system, or another payment device.

Once the coin mechanism has been identified as the problem, the MCM5 can provide a replacement option for compatible equipment.

Why MDB Matters in Modern Vending

MDB has become an important standard in vending payment systems. It allows the main machine controller to communicate with payment peripherals.

This can simplify the integration of coin changers and other compatible devices.

For operators upgrading older equipment, MDB compatibility can also make it easier to build a payment system around supported peripherals.

Cash Payment Still Matters

Cashless payment is growing in vending, but many locations continue to support cash.

Customers may prefer coins because they are familiar, convenient, or immediately available. Some locations may also have customers who do not use mobile payment or cards.

A dependable coin mechanism allows a compatible vending machine to continue serving customers who pay with coins.

Pairing Coin and Cashless Payments

A modern vending machine may offer several payment methods at the same time.

An MDB coin mechanism can serve the cash portion of the payment system while other compatible MDB devices handle additional payment options.

The exact combination depends on the machine controller and payment equipment. Operators should verify the manufacturer's supported peripheral configuration.

Refurbished Payment Equipment for Older Machines

Older vending machines can remain useful for many years when they are properly maintained. Replacing a failed payment component can sometimes be more practical than replacing an entire machine.

A refurbished MCM5 can provide a way to restore compatible equipment while keeping the repair focused on the failed component.

This approach may be useful for operators who maintain established vending routes and want to extend the service life of existing machines.

Service-Friendly Design

Every minute spent servicing a vending machine has a cost. Operators may need to drive to a location, open the machine, troubleshoot the issue, replace a component, test the machine, and close the cabinet.

A service-friendly coin mechanism can make these tasks easier.

The MCM5's removable cassette, visible coin path, fill markings, diagnostic features, and accessible design all support routine vending service.

Cleaning and Foreign Objects

Coins can carry dirt and debris. Customers may also insert objects that do not belong in the coin entry.

Foreign material can interfere with payment equipment.

During service, inspect the coin path for debris. Follow the appropriate cleaning instructions. Do not use excessive force or unsuitable tools.

Checking the MDB Harness

When a coin mechanism does not communicate with the machine, the changer itself may not be the only possible cause.

Inspect the MDB harness and connector. Look for:

• Loose connections
• Damaged wires
• Broken terminals
• Corrosion
• Physical damage
• Incorrect routing

A damaged harness can create symptoms that look like a failed coin mechanism.

Checking the Coin Cassette

Make sure the cassette is fully seated and configured correctly.

Check that the tubes contain the intended denominations. Look for foreign objects or coins that are not moving correctly.

Never assume that a payout problem is caused by the electronics. Mechanical issues inside the cassette can also affect operation.

Common Questions About the Conlux MCM5

Is the Conlux MCM5 refurbished?

Yes. This Vending World listing is for a refurbished Conlux MCM5 MDB five-tube coin mechanism.

How many coin tubes does the MCM5 have?

The MCM5 has five coin payout tubes.

What is the configuration of this version?

This version is listed with a 5-10-25-25-$1 configuration.

Does the MCM5 use MDB?

Yes. The MCM5 is an MDB coin mechanism.

Does this model use a 6-pin connection?

Yes. The product listing identifies this MCM5 version as a 6-pin MDB mechanism.

What coins can the MCM5 accept?

Manufacturer documentation lists U.S. 5¢, 10¢, 25¢, and $1 coins. Applicable configurations can also support Canadian currency.

Can the MCM5 make change?

Yes. It is a coin changer designed to dispense coins from its payout tubes.

How many coins can it dispense at one time?

Manufacturer information describes payout of up to three coins simultaneously.

Does the MCM5 have a removable cassette?

Yes. The five coin tubes are integrated into a cassette that can be accessed for filling and service.

Is the MCM5 suitable for high-volume vending?

The high-capacity five-tube design and rapid payout features make it suitable for consideration in compatible higher-use vending applications.

Can the MCM5 be used with a snack machine?

Yes, if the snack machine supports the required MDB system and the specific MCM5 configuration.

Can the MCM5 be used with a beverage machine?

Yes, if the beverage machine is compatible with the MCM5 MDB configuration.

Can the MCM5 work with cashless payment equipment?

MDB systems can support multiple compatible payment peripherals. The exact combination depends on the vending controller and equipment configuration.

Does the MCM5 require a separate power supply?

The MCM5 receives operating power through the vending machine's MDB system. Manufacturer specifications list +34VDC operating voltage.

What is the approximate weight?

The manufacturer lists the MCM5 at approximately 3.5 pounds.

What are the approximate dimensions?

Manufacturer documentation lists approximately 14.83 inches high, 5.43 inches wide, and 3.23 inches deep.

What is the MCM5 SKU?

The Vending World listing identifies this version as SKU CHMCM5$1.

Should I verify compatibility before ordering?

Yes. Always verify MDB compatibility, connector type, cassette configuration, coin requirements, and machine fit before ordering.

Frequently Asked Questions for Operators

Will the MCM5 fit every vending machine?

No. Vending machines use different payment systems, mounting arrangements, controllers, and harnesses. Confirm compatibility before purchase.

Can I replace a different brand of coin mechanism with an MCM5?

It may be possible in a compatible MDB machine, but compatibility should be verified. Do not assume that a different brand can be replaced without checking the machine and payment system.

Does the MCM5 hold dollar coins?

The listed 5-10-25-25-$1 configuration includes a tube for U.S. dollar coins.

Does it hold quarters?

Yes. The listed configuration includes two quarter tubes.

Does it hold nickels and dimes?

Yes. The listed configuration includes one nickel tube and one dime tube.

Can operators change the float?

The MCM5 includes float-management features. Vending World lists $34 and $52 factory float options, while manufacturer documentation describes programmable float functions.

Does the cassette have fill markings?

Yes. The MCM5 cassette includes fill lines that help operators check tube levels.

Is the MCM5 designed for easy maintenance?

The design includes accessible coin tubes, visible coin-path components, diagnostic features, and service-oriented construction.

Best Practices When Buying a Refurbished Coin Mechanism

Buying refurbished equipment can be a good way to control repair costs, but compatibility should always come first.

Compare the replacement part with the original unit. Check the model. Check the connector. Check the cassette. Check the coin configuration.

Also review the seller's current warranty and return information before purchase. Warranty terms can vary by product and seller.

Why Correct Configuration Matters

A coin mechanism can be electrically compatible but still have the wrong cassette configuration.

For example, a machine programmed around a particular coin float may not operate as expected if the replacement changer has different payout denominations.

That is why operators should confirm the exact configuration before installation.

How the MCM5 Supports Route Efficiency

Route efficiency depends on reducing unnecessary service visits.

The MCM5 supports this goal through several practical features. Its cassette provides significant coin capacity. Its fill lines provide quick visual checks. Its accessible design helps with routine service.

These features can help an operator spend less time performing basic coin changer maintenance during a route.

Reliable Change for Everyday Transactions

Every vending transaction is an opportunity for the machine to serve a customer. A working coin mechanism supports that transaction from the first coin to the final change payout.

The MCM5 is designed to handle this role in compatible vending equipment.

Its five-tube design gives the machine a useful change reserve, while its MDB interface provides communication with the machine controller.

For Operators Rebuilding Older Machines

Many vending operators keep older machines in service because the cabinet, refrigeration system, product delivery system, or overall machine design remains useful.

When a payment component fails, replacing that component can extend the machine's useful life.

A refurbished MCM5 can be considered as part of this type of repair when the machine supports the required MDB system and configuration.

For Vending Machine Technicians

Technicians need replacement parts that can be identified quickly and installed correctly.

The MCM5's model identification, five-tube cassette, MDB interface, and 6-pin connection provide several points of reference when matching a replacement.

Before beginning the repair, record the existing machine settings. This can help when testing the replacement.

Payment System Troubleshooting Checklist

• Is the machine powered?
• Does the controller recognize the coin mechanism?
• Is the MDB harness connected?
• Is the connector damaged?
• Are the cassette tubes installed correctly?
• Are the correct coin denominations in each tube?
• Is there a visible coin jam?
• Are there foreign objects in the coin path?
• Does the machine report an error code?
• Does the changer accept valid coins?
• Does it dispense change?
• Does the machine complete a test vend?

Product Benefits at a Glance

• Five payout tubes
• High-capacity coin storage
• MDB communication
• 6-pin MDB connection
• 5-10-25-25-$1 configuration
• U.S. coin acceptance
• Fast multi-coin payout
• Accessible coin cassette
• Visible coin path
• Tube fill indicators
• Float-management features
• Diagnostic LED
• Operator keypad
• Refurbished value

Who Should Consider the Conlux MCM5?

The Conlux MCM5 may be a useful choice for:

• Vending machine operators
• Vending route companies
• Vending machine technicians
• Machine refurbishers
• Office vending operators
• Snack machine operators
• Beverage machine operators
• Combo machine operators
• Businesses repairing existing vending equipment
• Operators looking for a refurbished MDB coin changer

Who Should Verify Compatibility First?

Any operator replacing a different coin mechanism should perform a compatibility check before purchase.

This is especially important when the machine is older, has been modified, or uses a non-standard payment configuration.

Refurbished Conlux MCM5 for Replacement Applications

The MCM5 can serve as a replacement component when an existing compatible coin changer no longer provides reliable service.

Its five-tube configuration can also provide additional capacity compared with smaller changers.

For operators who need to restore a machine without replacing the entire payment system, this can be a practical approach.

Important Installation Note

Do not install the coin mechanism while the vending machine is energized unless the manufacturer's service procedure specifically requires it.

Disconnect power first. Follow the machine's safety instructions. If you are unsure about electrical connections, have the work completed by a qualified vending technician.

Ordering Information

The Vending World listing identifies this product as the Conlux MCM5 ($1 Cassette) MDB 5-Tube Coin Mechanism. The listed SKU is CHMCM5$1, and the product is described as a refurbished unit.

Product availability can change. Confirm current inventory, pricing, warranty information, and shipping details on the product page before ordering.

Conclusion

The Conlux MCM5 1 Cassette MDB 5-Tube Coin Mechanism Refurbished is designed for vending operators who need dependable coin handling in a compatible MDB vending machine.

Its five-tube cassette provides useful coin capacity. The 5-10-25-25-$1 configuration gives the machine separate storage for nickels, dimes, quarters, and dollar coins. Its MDB interface allows communication with the vending machine controller.

The MCM5 also includes service-focused features such as accessible coin tubes, fill indicators, diagnostic functions, float-management options, and a visible coin path.

For operators repairing existing vending equipment, the refurbished MCM5 provides an option for replacing a compatible coin changer while controlling equipment costs.

As with any vending payment component, compatibility should be confirmed before purchase. Check the machine model, MDB system, connector, cassette configuration, coin requirements, and available mounting space.

When correctly matched to the machine, the Conlux MCM5 can provide a practical combination of coin storage, payout capability, service access, and MDB payment compatibility.

Quick Product Summary

• Product: Conlux MCM5 1 Cassette MDB 5-Tube Coin Mechanism
• Condition: Refurbished
• Manufacturer: Conlux
• Model: MCM5
• Interface: MDB
• Connection: 6-pin MDB
• Tube Count: 5
• Coin Setup: 5¢ / 10¢ / 25¢ / 25¢ / $1
• U.S. Coins: 5¢, 10¢, 25¢, $1
• High Capacity: Yes
• Diagnostic LED: Yes
• Float Options: Yes
• Approximate Weight: 3.5 lb
• SKU: CHMCM5$1

Final Buying Checklist

Before ordering this refurbished Conlux MCM5, confirm the following:

• Your vending machine uses MDB.
• Your machine accepts the required 6-pin MDB connection.
• The machine can use the MCM5 coin changer.
• The 5-10-25-25-$1 configuration matches your needs.
• The cabinet has enough space for the mechanism.
• The machine controller supports the intended coin changer.
• The payment system is compatible with your other peripherals.
• You have reviewed the current refurbished warranty information.

With those details confirmed, the Conlux MCM5 1 Cassette MDB 5-Tube Coin Mechanism Refurbished can be a useful replacement part for compatible vending equipment that needs dependable cash acceptance and change payout.
