Coinco 9302GX MDB Coin Mechanism (Refurbished)
Conlux CCM5G ($1 Cassette ) MDB 5 Tube Coin Mechanism (Refurbished)
Coinco 9302GX Coin Pro 3 MDB Coin Mechanism (Refurbished)
We found other products you might like!
- Coinco
- Model 9302GX
- Three payout tubes
- 6 Pin
- MDB Mech
- Refurbished Unit

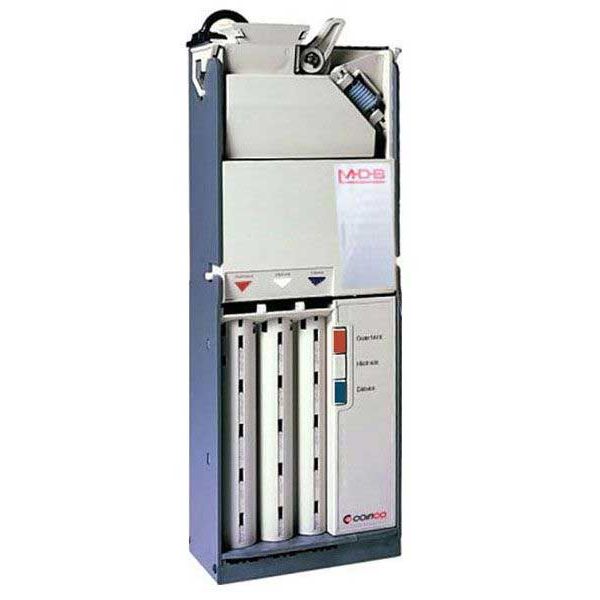

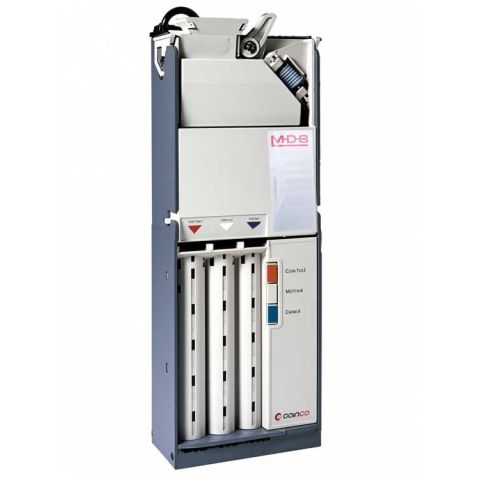

Coinco 9302GX MDB Coin Mechanism (Refurbished)
The Coinco 9302GX MDB Coin Mechanism is a dependable replacement changer for compatible vending machines that need reliable coin acceptance and change payout. This refurbished unit features a 6-pin MDB connection and a three-tube payout system. It is designed for use with MDB vending equipment and can be an excellent option when you need to replace a worn or failed coin mechanism without purchasing a new unit.
The Coinco 9302GX accepts common U.S. coin denominations, including nickels, dimes, quarters, and dollar coins. It is designed to recognize coins and provide change through its payout tubes. The unit is also equipped with programmable memory and coin-sensing technology to support reliable vending operation.
Vending World lists this model as a refurbished Coinco 9302GX with SKU CH9302GX. The unit is cleaned and tested before sale and is listed with a 90-day limited warranty.
Reliable MDB Coin Mechanism for Vending Machines
A coin mechanism is one of the most important payment components inside a vending machine. It must recognize accepted coins, communicate with the machine controller, and dispense the correct change. When a changer stops working correctly, the machine may reject payments or become limited to exact-change transactions.
The Coinco 9302GX provides a practical replacement for compatible MDB vending machines. Its MDB interface allows the changer to communicate electronically with the vending machine. This makes it suitable for many newer-style multi-price vending machines that use MDB payment components.
Vending World identifies the 9302GX as a replacement for compatible 6-pin MDB changers, including certain 6510 and 6512-style units. Always verify the connector, voltage, machine compatibility, and programming requirements before ordering a replacement part.
Key Features
- Coinco 9302GX model
- MDB-compatible coin mechanism
- 6-pin connection
- Three payout tubes
- Refurbished and tested unit
- Accepts nickels, dimes, quarters, and dollar coins
- Expandable programmable memory
- On-site field programming capability
- Automatic high or low quarter maintenance
- Patented coin-sensing technology
- Listed changer capacity of approximately $40.55 in nickel, dime, and quarter payout
Three-Tube Payout Design
The three-tube design gives the Coinco 9302GX dedicated payout storage for commonly used coins. The changer is designed to manage nickel, dime, and quarter payout while supporting the needs of everyday vending transactions.
According to the product information, the changer can hold up to approximately $40.55 in nickel, dime, and quarter payout. Actual capacity and payout performance can depend on how the tubes are filled and how the machine is configured.
Keeping the payout tubes properly stocked is important for maintaining change availability. A properly serviced changer can help reduce situations where a vending machine displays an exact-change message because it lacks the coins required to complete a transaction.
MDB Compatibility
MDB stands for Multi-Drop Bus. It is an electronic communication standard used by vending machines to connect payment devices and other peripherals.
The Coinco 9302GX uses an MDB interface and a 6-pin connection. This allows the changer to communicate with a compatible vending machine controller. MDB compatibility is especially useful in multi-price machines where the amount of change required can vary from one selection to another.
Before installing this refurbished coin mechanism, compare the existing changer with the 9302GX. Check the connector, machine control system, voltage requirements, and configuration. A matching model number alone should not be treated as a guarantee of compatibility.
Accepts Common Coin Denominations
The Coinco 9302GX is designed to accept several common U.S. coin denominations. The listed supported denominations include:
- Nickels
- Dimes
- Quarters
- Dollar coins
This range gives customers flexibility when paying for vending selections. It also gives operators a coin-payment solution for machines that continue to serve customers who prefer cash transactions.
Coin-Sensing Technology
Accurate coin recognition is essential for dependable vending operation. The Coinco 9302GX incorporates coin-sensing technology designed to help distinguish accepted coins from unacceptable or questionable items.
The product information also describes the technology as providing resistance to counterfeiting and improved resistance to vandalism. These features are intended to support secure and dependable operation in vending environments where the payment system may be used many times throughout the day.
Programmable Memory and Field Programming
Vending machines can have different pricing structures and operating requirements. The Coinco 9302GX includes expandable programmable memory that allows settings to be updated for compatible applications.
The unit also supports field programming. This can be useful for vending technicians and operators who need to make appropriate configuration changes without replacing the entire payment system.
Programming procedures should be performed according to the appropriate equipment documentation and the requirements of the vending machine in which the changer is installed.
Automatic Quarter Management
Quarter availability is important for vending machines because quarters are commonly needed when dispensing change. The Coinco 9302GX includes automatic high or low quarter maintenance as part of its operating features.
This function helps the changer manage quarter levels according to its programmed settings. For operators, automated coin-level management can reduce the amount of manual attention required during normal machine service.
Refurbished and Tested
This Coinco 9302GX is sold as a refurbished vending machine coin mechanism. Refurbished equipment can provide a practical alternative to purchasing a new payment component, particularly when maintaining an existing vending machine.
Vending World states that its 9302GX units are cleaned and tested before being offered for sale. The product page identifies the unit as refurbished and in excellent working condition.
Choosing a refurbished coin mechanism can also help extend the useful life of existing vending equipment. Instead of replacing an entire vending machine because of a payment component problem, an operator may be able to restore operation by replacing the failed changer with a compatible refurbished unit.
Ideal Replacement for Compatible Vending Equipment
The Coinco 9302GX can be considered for a variety of compatible vending applications. It may be used in snack machines, beverage machines, and other vending equipment that supports the appropriate MDB payment configuration.
It is particularly useful when an existing coin mechanism has problems such as inconsistent coin acceptance, poor payout performance, mechanical wear, or communication issues. Replacing the changer can help restore the payment system while allowing the operator to keep the existing vending machine cabinet and other components.
Installation Considerations
Before installing the Coinco 9302GX, disconnect power from the vending machine and follow the manufacturer's service procedures. Remove the existing changer carefully and compare its connector and mounting arrangement with the replacement unit.
After installation, test the vending machine using the appropriate coin denominations. Verify coin acceptance, credit registration, product selection, and change payout before returning the machine to normal customer use.
For best results, confirm the following before ordering:
- Existing machine uses MDB payment technology.
- Existing changer uses the compatible 6-pin connection.
- Voltage requirements match the application.
- Machine controller supports the replacement changer.
- Programming requirements are compatible with the machine.
- Physical mounting and wiring are appropriate.
Maintenance Tips
Regular maintenance can help extend the operating life of a vending machine coin mechanism. Dirt, dust, and foreign material can affect payment components over time, especially in machines located in busy environments.
Keep the coin path and surrounding area clean. Inspect the payout tubes during regular service visits. Make sure coins are feeding and dispensing properly, and check the machine for signs of mechanical wear.
It is also helpful to test the changer after servicing the vending machine. Confirm that accepted coins register correctly and that the proper change is dispensed for different purchase amounts.
Why Choose a Refurbished Coinco 9302GX?
Replacing a vending machine payment component does not always require purchasing a brand-new changer. A professionally refurbished unit can provide a cost-conscious way to maintain an existing machine.
The Coinco 9302GX combines an MDB interface, three payout tubes, multiple coin denominations, programmable memory, and coin-sensing technology in one replacement unit. Its familiar configuration also makes it a practical option for operators maintaining compatible vending equipment.
For operators who want to keep existing machines productive, a refurbished Coinco 9302GX can help avoid unnecessary equipment replacement while addressing a failed or worn coin mechanism.
Coinco 9302GX Specifications
| Specification | Details |
|---|---|
| Manufacturer | Coinco |
| Model | 9302GX |
| Product Type | MDB Coin Mechanism |
| Condition | Refurbished |
| Connection | 6-Pin MDB |
| Payout Tubes | Three |
| Coin Acceptance | Nickels, dimes, quarters, and dollar coins |
| Listed Payout Capacity | $40.55 in nickel, dime, and quarter payout |
| SKU | CH9302GX |
Order the Coinco 9302GX MDB Coin Mechanism
The Coinco 9302GX MDB Coin Mechanism (Refurbished) is a practical replacement for compatible vending machines that need dependable coin acceptance and change payout. With three payout tubes, a 6-pin MDB connection, programmable memory, coin-sensing technology, and support for common U.S. coin denominations, it offers the features vending operators need from a replacement changer.
Each unit is refurbished and tested before sale. Vending World lists the model under SKU CH9302GX and provides a 90-day limited warranty on refurbished vending equipment.
If your vending machine uses a compatible MDB coin mechanism and you need a replacement, verify your machine's specifications before ordering. The Coinco 9302GX can help restore cash-payment functionality while extending the useful life of your existing vending equipment.
Frequently Asked Questions
What is the Coinco 9302GX?
The Coinco 9302GX is an MDB-compatible vending machine coin mechanism with three payout tubes. It is designed to accept common U.S. coins and dispense change in compatible vending machines.
Is the Coinco 9302GX refurbished?
Yes. This listing is for a refurbished Coinco 9302GX. Vending World states that the units are cleaned and tested before sale.
How many payout tubes does it have?
The Coinco 9302GX has three payout tubes.
What connection does the 9302GX use?
The listed model uses a 6-pin MDB connection.
What coins does the Coinco 9302GX accept?
The product information lists nickels, dimes, quarters, and dollar coins as accepted denominations.
What should I check before ordering?
Verify that your vending machine supports MDB communication and that the existing changer, connector, voltage, programming, and mounting requirements are compatible with the Coinco 9302GX.
