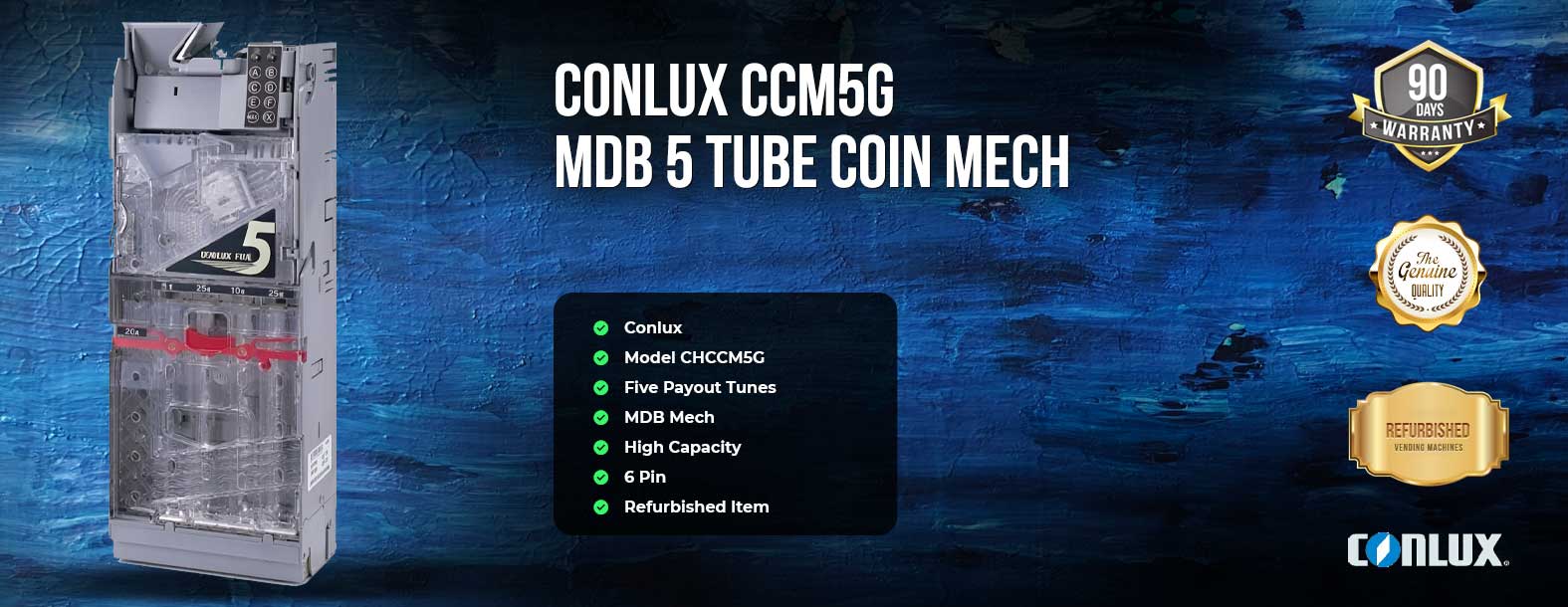

Conlux CCM5G MDB 5 Tube Coin Mechanism (Refurbished)

Conlux CCM5G MDB 5 Tube Coin Mechanism (Refurbished)

The Conlux CCM5G MDB 5 Tube Coin Mechanism is a high-capacity coin changer designed for modern vending machines that use a Multi-Drop Bus (MDB) payment system. This refurbished unit combines five payout tubes, a removable coin cassette, intelligent payout functions, and a compact design to help vending operators provide reliable change while reducing the need for frequent service visits.

Vending machines depend on their payment systems to complete every transaction correctly. A customer can select a product, insert cash, and make a purchase only when the machine can properly recognize, store, and return money. The coin mechanism is a central part of that process. It accepts supported coins, stores change in dedicated tubes, communicates with the vending machine through MDB, and pays out coins when change is required.

The CCM5G is designed around this role. Its five-tube configuration gives operators more change capacity than many smaller coin changers. The unit also includes features intended to simplify servicing and improve payout reliability. According to Conlux documentation, the CCM5G supports MDB communication, has five coin-selection solenoids, uses a removable cassette, and supports coin acceptance for 5¢, 10¢, 25¢, $1, and $2 denominations depending on configuration.

This particular VendingWorld listing is the refurbished Conlux CCM5G model CHCCM5G. The listed configuration is a six-pin MDB coin mechanism with five payout tubes and a high-capacity 5-10-25-25-25 configuration.

Why the Conlux CCM5G Is a Practical Choice for Vending Operators

A vending machine may operate hundreds or thousands of transactions over its service life. Every transaction places demands on the payment system. The machine must recognize the customer's payment, calculate the required change, communicate with its payment components, and dispense the correct coins.

For operators, the goal is simple: keep the machine operating and minimize unnecessary service calls.

The Conlux CCM5G addresses several important areas of vending payment operation. Its five-tube design provides substantial coin storage. Its MDB interface allows it to communicate with compatible modern vending equipment. Its removable cassette design can simplify servicing. Its smart payout system is designed to make another payout attempt when a coin does not successfully dispense.

The result is a coin mechanism built around the practical needs of commercial vending.

Product Highlights

• Manufacturer: Conlux
• Model: CCM5G
• VendingWorld SKU: CHCCM5G
• Condition: Refurbished
• Interface: MDB (Multi-Drop Bus)
• Connection: Six-pin MDB configuration
• Coin tubes: Five
• Tube configuration listed: 5-10-25-25-25
• Design: High-capacity five-tube changer
• Cassette: Removable coin cassette
• Voltage: Conlux documentation specifies 34 VDC operating voltage
• Motor: One 15 VDC motor
• Coin-selection solenoids: Five
• Supported coin denominations: 5¢, 10¢, 25¢, $1, and $2, depending on configuration
• Smart payout: Yes
• Last coin payout: Yes
• Memory: Non-volatile memory
• Maintenance: Designed for no-tools servicing

Always compare the mechanism's configuration, connector, tube setup, and vending machine requirements before installation. MDB equipment must be compatible with the vending machine's payment system and harness.

Five-Tube High-Capacity Coin Changer

The defining feature of the CCM5G is its five-tube design. Instead of relying on a small number of change-storage tubes, the mechanism distributes coins among five dedicated payout tubes.

This matters because vending machines frequently need several denominations available for change. A machine that accepts bills or higher-value payments may need to return multiple coins during a single transaction. The available change inventory therefore becomes an important part of daily operation.

The five-tube CCM5G provides additional storage capacity and flexibility. The listed CHCCM5G configuration uses a 5-10-25-25-25 arrangement. This provides multiple tube positions for the denominations used in the machine's change strategy.

Conlux documentation also describes the CCM5G as a five-tube coin changer and notes that additional satellite payout capacity can be added in compatible configurations, with up to seven tubes possible in the documented system.

For operators, more coin capacity can mean fewer interruptions caused by an empty change tube. It can also be useful in locations where vending machines experience frequent transactions.

MDB Compatibility

The MDB interface is one of the most important characteristics to verify before purchasing a coin mechanism.

MDB stands for Multi-Drop Bus. It is widely used in modern vending equipment to allow payment components to communicate with the machine's control system. Coin mechanisms and bill validators can share the appropriate payment-system harness while communicating with the vending machine controller.

The Conlux CCM5G is an MDB coin mechanism with a six-pin connection. VendingWorld identifies the listed unit as a 6-pin MDB mech.

This makes the CCM5G particularly relevant for vending machines designed around MDB payment architecture.

Before ordering, however, confirm that your vending machine is MDB compatible. Do not assume that every six-pin connector or every vending machine payment system uses the same configuration. Verify the machine model, existing coin mechanism, harness, and controller requirements.

Designed for Commercial Vending Applications

The CCM5G is intended for vending environments where reliable change handling is important. Commercial vending machines can serve customers throughout the day with limited operator supervision. A payment component therefore needs to work consistently while being practical to service when maintenance is required.

The five-tube architecture is useful for machines that require meaningful change capacity. The MDB interface makes the mechanism suitable for compatible modern vending systems. The removable cassette helps with servicing and coin management.

These features make the CCM5G a practical consideration for:

• Snack vending machines
• Cold drink vending machines
• Combination vending machines
• Commercial vending locations
• Employee break rooms
• Apartment and residential communities
• Hotels and hospitality locations
• Schools and campuses where permitted
• Manufacturing facilities
• Warehouses
• Office buildings
• Transportation and public-access vending locations

The exact machine compatibility should always be confirmed before installation.

Smart Payout Technology

One of the useful features documented for the CCM5G is its Smart Payout function.

Coin payout sounds simple, but a vending machine must reliably move coins from storage through the payout path and into the customer's change return area. A coin may occasionally fail to leave the mechanism correctly because of an obstruction, positioning issue, or other mechanical condition.

Conlux describes Smart Payout as a feature that checks whether a coin was successfully paid out and attempts to pay the coin again if necessary.

This approach is designed to improve payout reliability. For vending operators, reliable payout can help reduce situations where a customer does not receive the expected change and the operator must make an unnecessary service visit.

Smart Payout is therefore an important feature to consider when evaluating the CCM5G for a commercial vending application.

Three-Coin Payout System

The CCM5G product information also describes a three-coin payout system. This feature allows the changer to pay multiple coins as part of its payout process.

Fast payout can be particularly useful in vending environments where customers expect transactions to finish quickly. A coin mechanism that can efficiently process change contributes to the overall transaction flow.

Faster payout is not simply about convenience. It can also help the machine move through transactions efficiently when multiple customers are waiting to use the equipment.

Last Coin Payout

The CCM5G includes a Last Coin Payout feature.

Change inventory has value. If a tube contains only a small remaining number of coins, the machine still needs to make the best possible use of those coins when determining whether a transaction can be completed.

Conlux describes Last Coin Payout as a feature intended to prevent dead inventory by allowing the final available coin in a payout tube to be used.

This can help the machine make use of its available change supply rather than leaving a final coin unusable.

Removable Coin Cassette

The CCM5G uses a removable coin cassette. The cassette design makes the coin-storage section easier to access during service and maintenance.

A removable cassette can be useful when an operator needs to inspect the tubes, replenish change, clean the mechanism, or remove coins during servicing.

Because vending equipment is often serviced at the customer's location, simple access can save time. The less time an operator spends performing routine maintenance, the more efficiently a vending route can be managed.

Auto Cassette Programming

The CCM5G product information describes an auto cassette programming feature. The changer can recognize its cassette configuration without requiring a technician to manually program each cassette arrangement.

This can make cassette changes more straightforward when a compatible configuration is installed.

For operators who manage multiple vending machines, reducing setup complexity can be helpful. Technicians can focus on getting the equipment operating rather than spending unnecessary time on complicated configuration procedures.

No-Tools Maintenance Design

Vending machines are frequently serviced in the field. A machine may be located inside an office, factory, apartment building, hotel, or other customer location. Carrying a large collection of specialty tools is not always practical.

The CCM5G was designed with no-tools assembly and disassembly in mind. VendingWorld's product information specifically highlights the no-tools design for maintenance at the vending site.

This design can simplify routine inspection and cleaning. It can also help technicians access the mechanism more efficiently when troubleshooting a payout or coin-acceptance issue.

Swing-Open Payout Base

The CCM5G features a swing-open payout base. This provides access to the payout area without requiring complicated disassembly.

Coin mechanisms operate in environments where dirt, dust, and foreign material can eventually accumulate. Routine cleaning is important for maintaining reliable operation.

The swing-open design makes it easier to inspect the payout area and remove foreign material. It can also simplify access when coins need to be removed or when the mechanism requires inspection.

Anti-Salting Channel

Vending machines can sometimes be exposed to attempted vandalism. The CCM5G includes an anti-salting channel designed to help protect the changer from saltwater-related attacks.

This feature provides an additional layer of consideration for operators who place machines in locations where vandalism may be a concern.

Vending equipment is an investment. Features intended to reduce the effects of common forms of abuse can be useful when selecting payment components for unattended machines.

Non-Volatile Memory

The CCM5G uses memory designed to retain information when power is interrupted. Conlux documentation identifies non-volatile memory as one of the changer's features.

Power interruptions can occur for many reasons. A building may experience an outage, a machine may be unplugged during service, or electrical work may temporarily interrupt power.

Memory retention helps the changer maintain relevant stored information through a power interruption rather than requiring everything to be treated as a completely new operating condition.

Coin Acceptance

Conlux documentation lists acceptance of 5¢, 10¢, 25¢, $1, and $2 coins electronically. The exact denominations available to customers depend on the configuration and programming of the vending system.

The listed VendingWorld configuration is identified as 5-10-25-25-25. This is the configuration buyers should pay particular attention to when comparing the CCM5G with other versions or cassette arrangements.

If you are replacing an existing coin mechanism, compare the tube configuration before ordering. A mechanism that looks similar externally may have a different cassette arrangement or payment configuration.

Operating Voltage

The CCM5G technical documentation specifies an operating voltage of 34 VDC.

Vending payment components must be matched to the electrical system of the machine. Never connect a coin mechanism to a vending machine without confirming the machine's electrical and MDB requirements.

The product page may use general terminology such as 24/34 volts in its technical description, while the Conlux CCM5G specification document identifies 34 VDC as the operating voltage. Buyers should use the actual machine documentation and connector configuration when confirming compatibility.

Technical Specifications

Specification	Details
Manufacturer	Conlux
Model	CCM5G
VendingWorld SKU	CHCCM5G
Condition	Refurbished
Interface	MDB / Multi-Drop Bus
Connector	6-pin MDB
Coin tubes	5
Listed tube configuration	5-10-25-25-25
Operating voltage	34 VDC according to Conlux documentation
Motor	One 15 VDC motor
Coin selection	Five 15 VDC solenoids
Coin acceptance	5¢, 10¢, 25¢, $1, $2 depending on configuration
Memory	Non-volatile
Cassette	Removable
Weight	Approximately 4.2 lb according to Conlux documentation
Dimensions	Approximately 14.83" H x 5.43" W x 3.23" D

Specifications are based on available Conlux documentation and the VendingWorld product listing. Verify machine-specific compatibility before installation.

Compact Design for Vending Equipment

Space inside a vending machine is limited. Payment components must fit into the designated mounting area while leaving enough room for wiring, service access, and other components.

Conlux lists the CCM5G at approximately 14.83 inches high, 5.43 inches wide, and 3.23 inches deep. The documented weight is approximately 4.2 pounds.

These dimensions provide useful information when comparing the CCM5G with an existing coin mechanism. Even when two mechanisms have similar functions, mounting arrangements and physical dimensions can differ.

Measure the existing installation area when replacing an older coin mechanism. Also inspect the mounting hardware and MDB harness before ordering.

Refurbished Conlux CCM5G

This listing is for a refurbished Conlux CCM5G coin mechanism.

Refurbished vending equipment can provide operators with another option when replacing a failed component. Instead of automatically purchasing a new payment component, an operator can consider a professionally refurbished unit that matches the required model and configuration.

The goal of a refurbished component is to restore usable equipment to service while providing a practical alternative to buying new.

VendingWorld identifies this CCM5G as a refurbished unit and lists it under SKU CHCCM5G.

When purchasing refurbished vending equipment, buyers should always verify the condition, warranty information, model, connector, and configuration before ordering.

Why a Five-Tube Mechanism Can Matter

Not every vending machine needs the same amount of coin capacity.

A low-volume machine with a simple cash configuration may operate adequately with a smaller changer. A high-volume machine may need more change capacity to avoid frequent service visits.

The five-tube CCM5G gives operators more coin-storage positions than a basic three- or four-tube mechanism. This can make it useful for vending machines where change demand is significant.

For example, consider a machine that accepts a combination of coins and bills. Customers may use larger denominations for relatively inexpensive products. The machine then needs to return the difference in coins.

When transactions occur repeatedly, the change tubes can empty quickly. A higher-capacity mechanism can provide more room for change and potentially increase the number of transactions between service visits.

Supporting Better Route Efficiency

Vending route operators spend more than just money on service calls. They also spend time driving to locations, parking, accessing machines, diagnosing problems, performing repairs, and returning to the route.

Payment-system reliability can therefore have an effect on route efficiency.

A five-tube coin changer with smart payout and service-friendly features gives the operator a payment component designed around repeated commercial use.

The CCM5G's service-oriented design includes removable components, no-tools maintenance, a swing-open payout base, and smart payout functionality.

These features do not eliminate the need for maintenance. They are intended to make routine service and troubleshooting more manageable.

Maintenance and Cleaning

Coin mechanisms work with physical currency every day. Coins carry dirt and debris from pockets, wallets, counters, cash drawers, and other environments.

Over time, debris can accumulate in coin paths. Regular inspection and cleaning can help maintain smooth operation.

VendingWorld's coin mechanism information notes that dirt and grime can accumulate on coin tracks and that appropriate maintenance is important for continued performance.

When servicing a CCM5G, operators should follow appropriate manufacturer procedures. The no-tools design and swing-open payout base can make inspection more accessible.

Basic Maintenance Considerations

• Inspect the coin path regularly.
• Look for foreign objects or debris.
• Check the payout area for obstructions.
• Inspect the cassette and tube areas.
• Confirm the MDB harness is secure.
• Check for unusual mechanical noise.
• Verify that coins are paying out correctly.
• Keep the payment compartment clean.
• Follow manufacturer service recommendations.

Do not use excessive force when cleaning or servicing the mechanism. If a component requires repair beyond normal cleaning and inspection, use an appropriate vending equipment technician or repair service.

Choosing the Correct Coin Mechanism

Choosing a replacement coin mechanism is not simply a matter of finding a unit with the same general appearance.

The most important factor is compatibility.

Before purchasing the CCM5G, compare your existing equipment with the product specifications.

Check the following:

• Vending machine manufacturer
• Vending machine model
• Existing coin mechanism model
• MDB compatibility
• Connector type
• Harness configuration
• Coin denominations required
• Tube configuration
• Physical mounting area
• Machine controller requirements
• Bill validator compatibility
• Machine software or payment configuration

If any of these items are uncertain, compare the existing mechanism's model number and connector with the replacement unit before ordering.

MDB Coin Mechanisms Explained

MDB payment systems are designed to allow different payment components to communicate with a vending machine's controller.

Instead of treating every payment device as an isolated component, MDB provides a standardized communication architecture for compatible vending equipment.

This makes MDB useful in modern vending systems that may include a coin changer, bill validator, card reader, or other payment technology.

The Conlux CCM5G is built specifically around MDB communication. That makes it different from older logic coin mechanisms that use other electrical and communication arrangements.

For replacement work, this distinction is critical. A 110-volt logic coin mechanism, for example, is not automatically interchangeable with an MDB mechanism simply because both are called coin changers.

MDB Versus Older Logic Coin Mechanisms

Older vending machines often used coin mechanisms with different electrical systems and communication methods. Some traditional equipment used 110-volt or other logic-based configurations.

MDB equipment was developed to provide a more standardized communication method for modern vending payment components.

VendingWorld's current coin mechanism category includes multiple generations of equipment, including older logic mechanisms and newer MDB units.

This variety is one reason buyers should identify the exact mechanism already installed in their vending machine.

The CCM5G should be selected when its MDB configuration and physical/electrical specifications match the machine.

Useful for Machines That Need More Change

The main advantage of the five-tube architecture is change capacity.

When a machine makes frequent sales, the change mechanism can become one of the first components to require attention. A customer who pays with a larger denomination may require several coins back. Repeated transactions can consume the available change inventory quickly.

With five tubes, the CCM5G provides additional coin-storage capability compared with simpler mechanisms.

This is particularly useful for operators who want to reduce the frequency of change replenishment in busy machines.

Actual performance will depend on vend prices, coin usage, customer payment habits, tube configuration, and transaction volume.

High-Volume Vending Locations

High-volume locations can place greater demands on payment equipment.

A vending machine located in a busy workplace may serve employees throughout multiple shifts. A machine in a manufacturing facility may experience frequent transactions during breaks. A machine in a residential building may serve customers at different times throughout the day.

In these environments, change capacity matters.

The CCM5G was designed as a high-capacity five-tube coin changer. Its combination of five payout tubes, smart payout, MDB communication, and service-oriented construction makes it appropriate to consider for compatible commercial vending applications.

Payment Reliability and Customer Experience

Customers expect vending machines to complete transactions quickly.

They expect the machine to recognize their payment, dispense the selected product, and return the correct change when necessary.

The coin mechanism contributes directly to that experience.

Features such as smart payout, multiple-coin payout, and last coin payout are designed to support dependable change handling.

Although no mechanical payment component can eliminate every possible failure, these features are intended to improve the way the mechanism handles routine payout operations.

Coin Cassette Management

The removable cassette is another practical feature for vending operators.

Instead of treating the entire coin mechanism as one inaccessible assembly, the cassette provides a dedicated area for coin storage and payout management.

This can simplify tasks such as inspecting coin levels, removing coins, cleaning the mechanism, and changing compatible cassette configurations.

The CCM5G documentation also describes automatic cassette recognition.

Always use a cassette and configuration appropriate for the specific CCM5G version being installed.

Service-Friendly Construction

Serviceability is an important consideration when choosing vending components.

A payment component can be technically sophisticated but still difficult to maintain. The CCM5G includes design features intended to make service easier.

• Removable coin cassette
• No-tools service design
• Swing-open payout base
• LED diagnostic capability
• Smart payout function
• Accessible payout area

Conlux documentation specifically lists LED diagnostics as an additional feature of the CCM5G series.

Diagnostic indicators can be useful during troubleshooting because they provide information about the mechanism's operating condition.

LED Diagnostic Capability

When a vending machine payment component does not behave as expected, troubleshooting can take time.

Diagnostic information can help technicians identify where to begin.

The CCM5G documentation lists an LED diagnostic feature. This provides an additional service aid when inspecting the changer.

Technicians should consult the appropriate Conlux documentation for specific diagnostic indications and service procedures.

Operating Temperature

Conlux documentation lists an operating temperature range of approximately 5°F (-15°C) to 140°F (60°C) for the CCM5G series.

Environmental conditions still matter. The vending machine should be installed in an environment suitable for the complete machine, not simply the coin mechanism's published range.

Moisture, excessive dust, direct weather exposure, physical abuse, and improper electrical conditions can affect vending equipment even when a component's published temperature range is broad.

Electrical Characteristics

The CCM5G specification identifies one 15 VDC motor and five 15 VDC coin-selection solenoids. Conlux lists standby power consumption at approximately 0.10 A and motor operation at 0.66 A or less, with a peak maximum of 0.92 A for five seconds.

These technical specifications are useful when evaluating the component for a particular vending system.

Installation should always follow the machine and component documentation. If the existing harness or controller does not match the CCM5G requirements, do not attempt to force a connection.

Understanding the 5-10-25-25-25 Configuration

The VendingWorld listing identifies this specific CCM5G configuration as 5-10-25-25-25.

This naming convention refers to the denominations assigned to the five payout tubes:

• Tube 1: 5¢
• Tube 2: 10¢
• Tube 3: 25¢
• Tube 4: 25¢
• Tube 5: 25¢

This arrangement provides multiple quarter tubes, which can be useful for vending machines where quarters represent a significant portion of change payouts.

However, buyers should not assume that every CCM5G uses this same configuration. Conlux offers configurations with different coin arrangements, and VendingWorld also lists a CCM5G version with a $1 cassette.

Always purchase the configuration that matches your vending application.

CCM5G Versus CCM5G With $1 Cassette

VendingWorld lists both the standard CCM5G configuration and a CCM5G version with a $1 cassette. The standard CHCCM5G listing identifies its tube arrangement as 5-10-25-25-25, while the $1 cassette version is listed as 5-10-25-25-$1.

This distinction is important.

If your vending machine is configured to require a dedicated dollar payout tube, you should verify that the version you order includes the appropriate cassette.

Do not select a mechanism solely by the CCM5G model name. Check the complete configuration.

Refurbished Payment Equipment for Vending Routes

Replacing a failed coin mechanism does not always require replacing an entire vending machine.

In many situations, the rest of the vending machine may remain functional while the payment component requires replacement. A refurbished CCM5G can provide an option for restoring the payment system without replacing other equipment unnecessarily.

This can be especially relevant for operators maintaining established vending routes with older commercial machines.

A properly matched replacement coin mechanism can help return a machine to service while allowing the operator to continue using the existing equipment.

Ideal Replacement Scenarios

The CCM5G can be considered when:

• An existing compatible CCM5G has failed.
• A vending machine needs additional coin capacity.
• An older compatible changer needs replacement.
• An operator wants a five-tube MDB mechanism.
• The machine requires the listed 5-10-25-25-25 configuration.
• A vending machine needs a removable cassette design.
• A route operator wants a service-friendly payment component.

Compatibility must be confirmed for each machine before installation.

Installation Considerations

Installing a coin mechanism should be treated as an equipment service procedure, not simply a plug-in accessory installation.

Before beginning, disconnect power from the vending machine according to the manufacturer's service instructions.

Remove the existing mechanism carefully. Inspect the MDB harness and connector. Look for bent pins, damaged wiring, loose connections, or evidence of corrosion.

Compare the old mechanism with the replacement unit. Check the mounting points and physical dimensions.

Install the CCM5G according to the vending machine and Conlux service instructions.

After installation, verify communication between the coin mechanism and vending machine controller. Test coin acceptance, change payout, and any connected bill validator or other payment device.

Do not place a machine back into customer service until the payment system has been tested.

Testing After Installation

A complete test should include the functions relevant to the machine's configuration.

• Power up the vending machine.
• Confirm the MDB system recognizes the changer.
• Verify the coin mechanism initializes correctly.
• Test supported coin acceptance.
• Test a transaction requiring change.
• Confirm coins are dispensed correctly.
• Check the payout area for jams.
• Verify the cassette is seated correctly.
• Test the machine's bill validator if one is installed.
• Confirm the machine returns to normal vend operation.

If the changer is not recognized, do not assume the coin mechanism is defective. Check the machine controller, MDB harness, connector, configuration, and power supply first.

Common Reasons to Inspect a Coin Mechanism

A coin mechanism may require attention when customers report problems such as:

• The machine does not accept coins.
• The machine accepts coins but does not provide change.
• Change payout is inconsistent.
• A coin becomes stuck.
• The machine reports a coin mechanism error.
• The machine does not recognize the changer.
• The change tubes become empty frequently.
• The payout mechanism makes unusual noises.

Not every problem is caused by the coin mechanism itself. Vending machine controllers, wiring, power supplies, bill validators, coin paths, and customer interfaces can also contribute to payment problems.

Keeping the Coin Mechanism Clean

Cleanliness is one of the simplest maintenance factors for a vending payment system.

Coins naturally carry contamination. If foreign material enters the mechanism, it can interfere with coin movement or payout.

Regular visual inspections can help identify problems before they become major service issues.

When cleaning the mechanism, follow the appropriate service instructions. Avoid introducing liquids into electronic components unless the manufacturer specifically instructs you to do so.

Benefits for Vending Route Operators

Route operators need equipment that can be serviced efficiently.

The CCM5G's combination of five-tube capacity and service-oriented design makes it relevant to commercial vending routes where payment equipment receives frequent use.

The five-tube design can provide greater change capacity than smaller mechanisms. Smart payout can help with payout reliability. The removable cassette and no-tools design can make maintenance more manageable.

These features can help operators spend less time dealing with routine payment-system issues and more time managing the route.

Benefits for Replacement Projects

A payment component does not necessarily need to be replaced with the exact same brand when a vending machine is upgraded, but compatibility is essential.

The CCM5G should be considered when its MDB architecture, connector, cassette, tube configuration, and electrical specifications match the application.

For operators replacing older payment equipment, identifying the existing model before purchasing is the best starting point.

Questions to Ask Before Ordering

Is my vending machine MDB compatible?

Confirm that the vending machine uses an MDB payment system. The CCM5G is an MDB coin mechanism.

Does my machine use a six-pin MDB connection?

The VendingWorld listing identifies this unit as a six-pin MDB mechanism. Verify your machine's harness before ordering.

Which coin configuration do I need?

This listing is configured as 5-10-25-25-25. Other CCM5G versions may use different cassette arrangements.

Do I need a $1 cassette?

If your machine requires a dedicated $1 payout tube, verify that you are ordering the CCM5G version with the appropriate cassette. VendingWorld lists a separate $1 cassette configuration.

Is the refurbished condition acceptable?

This product is listed as refurbished. Buyers should review the current product information and warranty terms before ordering.

Conlux CCM5G for Snack Vending Machines

Snack machines frequently use MDB payment systems, especially modern commercial equipment.

A five-tube changer can be useful in a snack machine because product prices can vary considerably. A customer may purchase an inexpensive item using a larger bill, requiring the machine to return multiple coins.

The CCM5G provides five payout tubes for managing change in compatible equipment.

When installing the mechanism in a snack machine, verify the machine's controller and MDB harness before ordering.

Conlux CCM5G for Beverage Vending Machines

Beverage vending machines can also have substantial change requirements.

Drink prices vary by location and machine configuration. In some locations, customers frequently use bills or larger coins for beverage purchases.

The CCM5G's five-tube configuration provides additional change capacity for compatible machines.

As with snack machines, the important consideration is compatibility. Check the machine's payment architecture and existing mechanism before ordering.

Combination Vending Machines

Combination machines sell multiple product categories from a single cabinet. Because they may have a broad range of prices, change management can be particularly important.

The CCM5G can be considered for compatible combination machines using the appropriate MDB configuration.

Operators should confirm that the machine's controller supports the mechanism and that the cassette configuration matches the desired coin payout strategy.

Commercial-Grade Vending Equipment

The CCM5G is intended for vending applications rather than general-purpose coin handling.

Its design includes vending-specific features such as MDB communication, smart payout, multiple payout tubes, diagnostics, and a removable cassette.

This makes it different from basic coin acceptors used in simple amusement or countertop equipment.

Why Model Identification Matters

Payment components often look similar from the outside.

Two coin changers may both have five tubes but use different connectors, controllers, cassettes, or electrical systems.

That is why the model number is important.

The VendingWorld product is identified as CHCCM5G and is specifically described as a Conlux CCM5G five-tube MDB mechanism.

When ordering a replacement, compare the model number on your existing component with the replacement listing whenever possible.

Durability and Long-Term Maintenance

Coin mechanisms can remain in service for extended periods when maintained properly.

VendingWorld notes that coin mechanisms can have long service lives with appropriate maintenance and that dirt and grime on coin tracks can affect performance.

Routine maintenance is therefore important even when the mechanism appears to be functioning normally.

Operators should inspect equipment during regular route visits instead of waiting until customers report a payment problem.

Reducing Unnecessary Service Calls

Every service call has a cost.

There is the technician's time, fuel, vehicle expense, opportunity cost, and potential loss of vending sales while the machine is not operating normally.

The CCM5G incorporates several features intended to support reliable operation and easier service, including Smart Payout, Last Coin Payout, removable cassette construction, LED diagnostics, and no-tools servicing.

These features are designed to make the payment system more manageable in commercial vending applications.

High-Capacity Change Management

Change management is often overlooked when a vending route is first established.

Operators may focus on product selection, pricing, location quality, refrigeration, and machine appearance. Payment hardware can receive less attention.

However, the payment system directly affects whether customers can complete transactions.

A five-tube coin changer provides additional capacity for holding payout coins. The CCM5G is therefore a useful option to evaluate when change capacity is a priority.

Product Appearance and Refurbished Equipment

Refurbished vending components may show cosmetic signs associated with previous service or use. Cosmetic appearance can vary from unit to unit.

For a payment component, functional compatibility and operating condition are generally more important than cosmetic appearance.

When purchasing a refurbished CCM5G, buyers should review the current VendingWorld listing for the condition, available warranty information, stock status, and other current details.

VendingWorld Product Information

VendingWorld currently lists the Conlux CCM5G MDB 5 Tube Coin Mechanism under SKU CHCCM5G. The listing identifies the unit as refurbished and describes it as a five-payout-tube, six-pin MDB, high-capacity mechanism with a 5-10-25-25-25 configuration.

The listing also provides access to related vending payment components, including other MDB coin mechanisms.

Related Coin Mechanism Applications

VendingWorld's coin mechanism category includes several different models and technologies. The current catalog includes Conlux, Coinco, and Mars coin mechanisms, including both MDB and older logic configurations.

This variety is useful for operators maintaining mixed vending routes. Different machines may require different payment systems depending on their age, manufacturer, controller, and original configuration.

The key is to match the replacement mechanism to the machine rather than selecting a component based only on appearance or price.

Important Compatibility Reminder

The Conlux CCM5G should only be installed in vending equipment that is compatible with its MDB interface, connector, electrical requirements, mounting arrangement, and coin configuration.

Do not assume compatibility simply because another mechanism is described as MDB.

Before ordering, compare the existing mechanism, connector, cassette, and machine documentation.

Frequently Asked Questions

What is the Conlux CCM5G?

The Conlux CCM5G is a five-tube MDB coin changer designed for compatible vending machines. The VendingWorld listing identifies it as a refurbished six-pin MDB mechanism with a high-capacity five-tube configuration.

How many tubes does the CCM5G have?

The CCM5G has five payout tubes. The specific VendingWorld configuration is listed as 5-10-25-25-25.

Is the Conlux CCM5G an MDB coin mechanism?

Yes. The CCM5G uses an MDB interface. The VendingWorld listing identifies it as a six-pin MDB mechanism.

Is this CCM5G refurbished?

Yes. The VendingWorld product is listed as a refurbished unit.

What is the SKU?

The VendingWorld SKU is CHCCM5G.

What coin configuration does this version use?

The listed version uses a 5-10-25-25-25 configuration.

Does Conlux make a CCM5G with a $1 cassette?

Yes. VendingWorld lists a separate CCM5G version with a $1 cassette, identified as a 5-10-25-25-$1 configuration.

What voltage does the CCM5G use?

Conlux's CCM5G specification document identifies the operating voltage as 34 VDC.

What coins can the CCM5G accept?

Conlux documentation lists 5¢, 10¢, 25¢, $1, and $2 coin acceptance electronically, depending on configuration.

Does the CCM5G have Smart Payout?

Yes. Smart Payout is listed as a CCM5G feature. The system is designed to attempt another payout when a coin is not successfully dispensed.

Does the CCM5G have Last Coin Payout?

Yes. Last Coin Payout is listed as an additional CCM5G feature and is intended to help prevent dead inventory.

Does the CCM5G use a removable cassette?

Yes. The CCM5G documentation lists a removable coin cassette.

Does it require tools for normal service?

The CCM5G is designed for no-tools assembly and disassembly, which can simplify certain maintenance procedures at the vending location.

What are the CCM5G dimensions?

Conlux lists approximate dimensions of 14.83 inches high by 5.43 inches wide by 3.23 inches deep.

How much does the CCM5G weigh?

Conlux lists the CCM5G series at approximately 4.2 pounds. VendingWorld lists the product weight at approximately 4 pounds.

Is the CCM5G suitable for high-volume vending?

The CCM5G is designed as a high-capacity five-tube coin changer and can be considered for compatible commercial vending applications where greater change capacity is useful.

Can I use this mechanism in any vending machine?

No. Compatibility must be confirmed. Check the vending machine's MDB system, connector, electrical requirements, mounting arrangement, controller, and coin configuration before ordering.

Can the CCM5G replace an older 110-volt coin mechanism?

Not automatically. Older 110-volt logic mechanisms use a different electrical and communication architecture. The CCM5G should only be used where the vending machine is designed to support the MDB mechanism and its electrical requirements.

Advantages at a Glance

• Five-tube capacity: Provides multiple coin-storage positions.
• MDB communication: Designed for compatible modern vending equipment.
• Six-pin connection: Matches the configuration identified by the VendingWorld listing.
• Smart Payout: Designed to retry a payout when necessary.
• Last Coin Payout: Helps make use of the final available payout coin.
• Removable cassette: Simplifies access to the coin-storage assembly.
• No-tools design: Supports easier servicing.
• Swing-open payout base: Provides convenient access to the payout area.
• LED diagnostics: Provides additional troubleshooting information.
• Non-volatile memory: Helps retain stored information through power interruptions.
• Anti-salting channel: Provides added protection against a known type of vandalism.

Who Should Consider the Conlux CCM5G?

The CCM5G is worth considering for vending operators who need a compatible five-tube MDB coin mechanism and want substantial change capacity in a service-friendly design.

It may be especially relevant for operators managing commercial machines where transaction volume makes change capacity important.

It can also be useful as a replacement component for a compatible machine already using a similar Conlux mechanism.

Who Should Not Order Without Checking Compatibility?

Buyers with older vending machines should be especially careful.

If your machine uses a 110-volt logic mechanism, a different MDB connector, or another coin changer architecture, the CCM5G may not be a direct replacement.

Likewise, buyers who need a specific $1 cassette configuration should compare the standard CCM5G with the separate $1 cassette version.

When in doubt, identify the model number on your existing coin mechanism and compare it with the product specifications before ordering.

Professional Vending Equipment Replacement

Payment equipment is one of the most important systems inside a vending machine.

A reliable coin changer helps customers complete cash transactions and helps operators manage change inventory. When the payment system is not working correctly, the entire vending machine can effectively become unavailable to customers.

The Conlux CCM5G combines high-capacity five-tube coin storage with MDB communication and service-friendly features. For a compatible machine, it can provide a practical way to replace or upgrade the coin-changing portion of the payment system.

Final Product Summary

The Conlux CCM5G MDB 5 Tube Coin Mechanism is a high-capacity vending coin changer designed for compatible MDB vending machines. This refurbished VendingWorld unit is identified as SKU CHCCM5G and features a six-pin MDB interface and a five-tube 5-10-25-25-25 payout configuration.

Its design combines several features aimed at commercial vending operators. These include Smart Payout, Last Coin Payout, a removable cassette, auto cassette programming, a swing-open payout base, no-tools servicing, LED diagnostics, non-volatile memory, and an anti-salting channel.

The five-tube design provides additional coin capacity for vending machines that need to maintain a larger change inventory. MDB communication makes the unit appropriate for compatible modern vending equipment, while the service-friendly design can make maintenance more convenient.

For operators replacing a failed coin mechanism, adding capacity to an existing vending machine, or maintaining a commercial vending route, the CCM5G provides a combination of capacity, MDB connectivity, and practical maintenance features.

Before ordering, verify the exact vending machine model, MDB compatibility, connector, electrical requirements, cassette configuration, mounting arrangement, and desired coin denominations. Choosing the correct configuration is essential for reliable installation and operation.

Conlux CCM5G MDB 5 Tube Coin Mechanism — refurbished, high capacity, six-pin MDB, five payout tubes, and designed for compatible commercial vending applications.

Key SEO Product Terms

Conlux CCM5G MDB coin mechanism, Conlux CCM5G coin changer, Conlux five tube coin mechanism, five tube MDB coin mechanism, refurbished Conlux coin mechanism, refurbished vending coin changer, MDB coin mech, six pin MDB coin mechanism, vending machine coin changer, high capacity coin mechanism, Conlux CCM5G refurbished, CHCCM5G, 5-10-25-25-25 coin changer, vending machine change mechanism, commercial vending coin mechanism, MDB vending parts, refurbished vending parts, Conlux vending parts, five tube coin changer.
